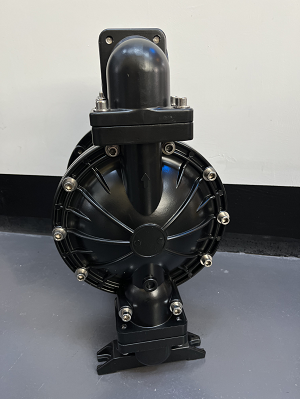

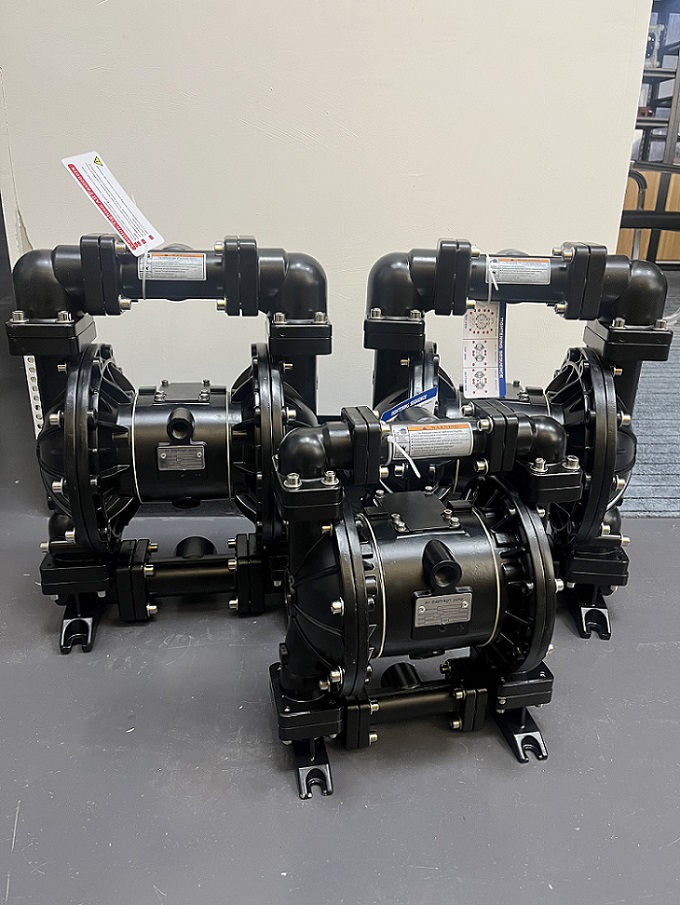

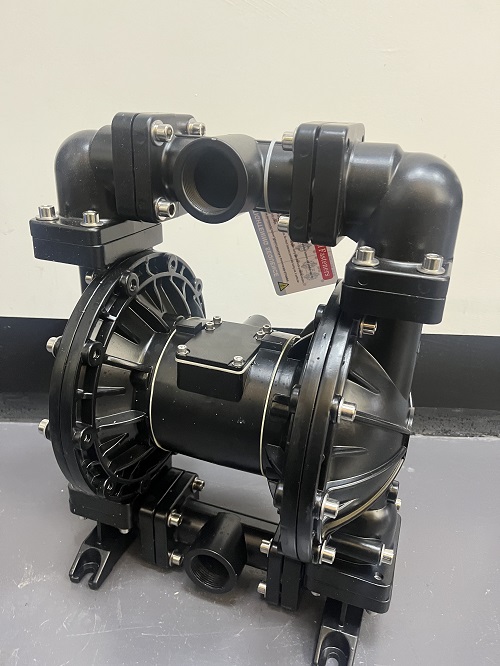

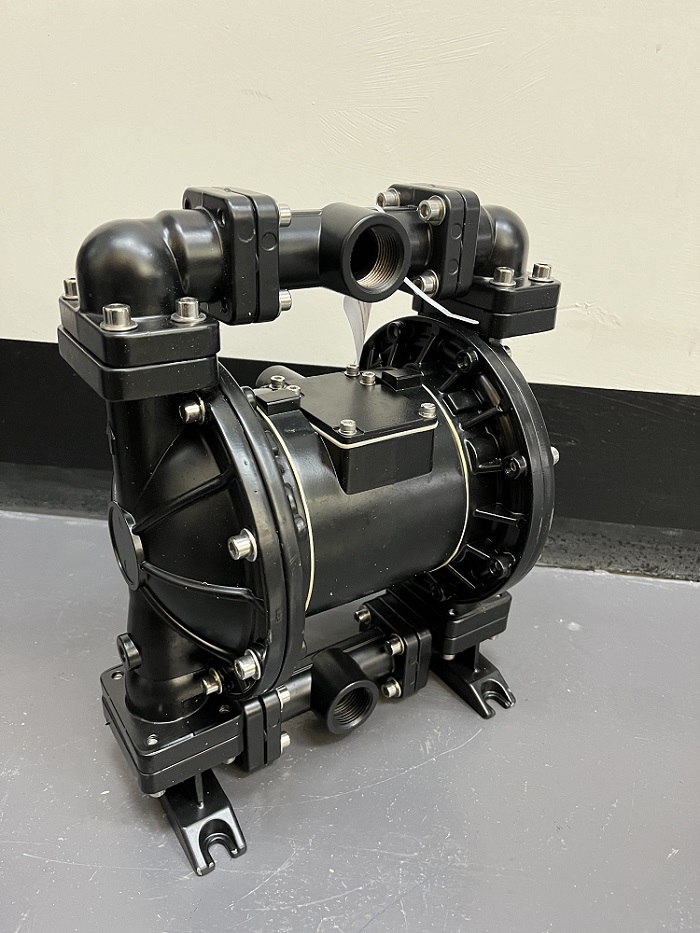

One of our old customer from South Korea send us an repeat order. The product is 1.5inch Aluminum diaphragm pump body with Teflon diaphragm , Teflon ball, Teflon ball seat. Also he has increased 1inch Aluminum diaphragm pump to his order this time.
Our Aluminum double diaphragm pump has below features.
|
1.5inch Aluminum Diaprhagm Pump Technical Parameters |
|
|
Pump Main Parameters Name: 1.5inch Aluminum Diaphragm pump Pump type: Air Operated Diaphragm Pump Model: AOK40AL-AL-TF-TF-TF Inlet*outlet size: 40mm*40mm Dry Priming: 5m Wet Priming:8m Max Flow Rate: 358L/min Max Head: 84m Max Suction lift: 8m Air pressure: 8.4bar Air inlet size: 1/2inch Max particle diameter: 5mm |
Pump Material Center Block Material: Aluminum(AL) Pump body Material:Aluminum(AL) Diaphragm Material: Teflon(TF) Ball Material: Teflon(TF) Ball seat Material: Teflon(TF)
Gross Weight:22kgs Carton size:40*30*55cm |
| 1inch Aluminum diaphragm pump Technical Parameters | |
|
Pump Main Parameters Name: 1inch Aluminum Diaphragm pump Pump type: Air Operated Diaphragm Pump Model: AOK25AL-AL-TF-TF-TF Inlet*outlet size: 25mm*25mm Dry Priming: 4m Wet Priming:8m Max Flow Rate: 157L/min Max Head: 84m Max Suction lift: 8m Air pressure: 8.4bar Air inlet size: 1/2inch Max particle diameter: 4mm |
Pump Material Center Block Material: Aluminum(AL) Pump body Material:Aluminum(AL) Diaphragm Material: Teflon(TF) Ball Material: Teflon(TF) Ball seat Material: Teflon(TF)
Gross Weight:11.5kgs Carton size:32*24*42cm |
Any inquiry, pls feel free to contact with Cindy(sales9@defupump.com), we will choose pump model according to your application.
