AOK Air Operated Diaphragm Pump

PVDF Air Operated Diaphragm Pump AOK25

AOK25 PVDF pneumatic diaphragm pump is considered to be the most chemically stable material, AOK25 high quality PVDF pneumatic pump for chemical has good chemical stability. This chemical air powered double diaphragm pump can not only be used for a variety of corrosive liquids and high viscosity liquids, but also can be used to transport flammable and explosive liquids.

AOK-25PVDF High-Quality Diaphragm Pump


The PVDF pneumatic diaphragm pump is powered by air and has the advantages of quiet operation and low noise. There is no need to worry about dangers due to wires and engines. PVDF pneumatic diaphragm pump is suitable for transporting demanding strong acid and strong alkaline liquids and flammable and explosive liquids.

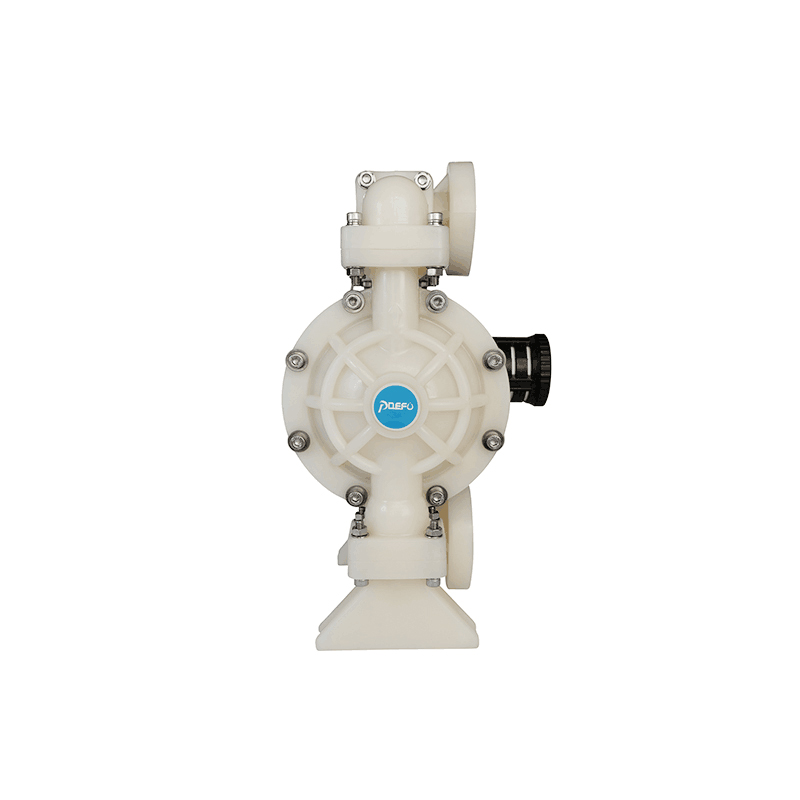

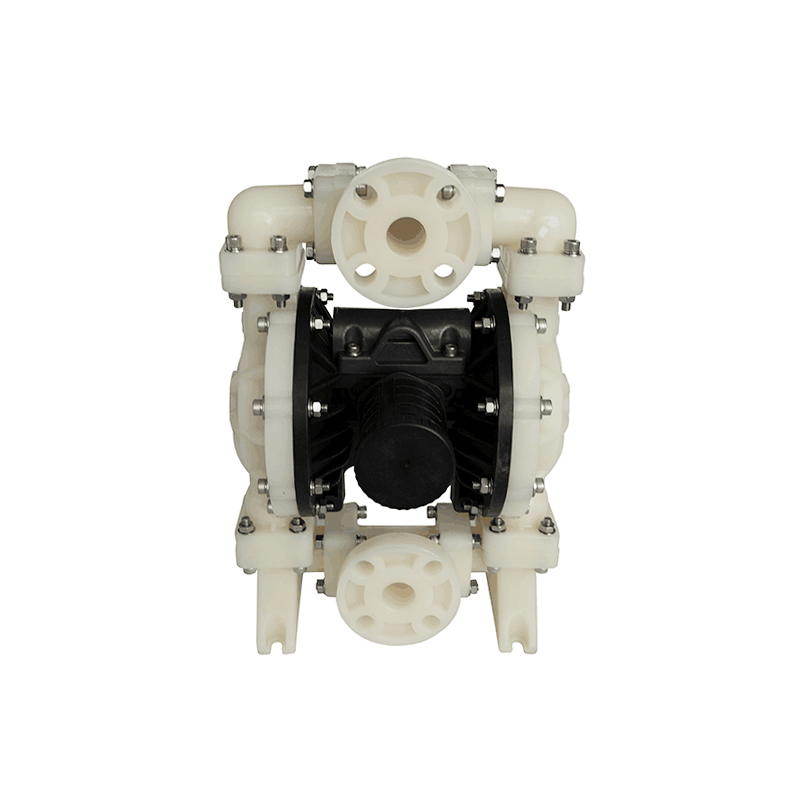

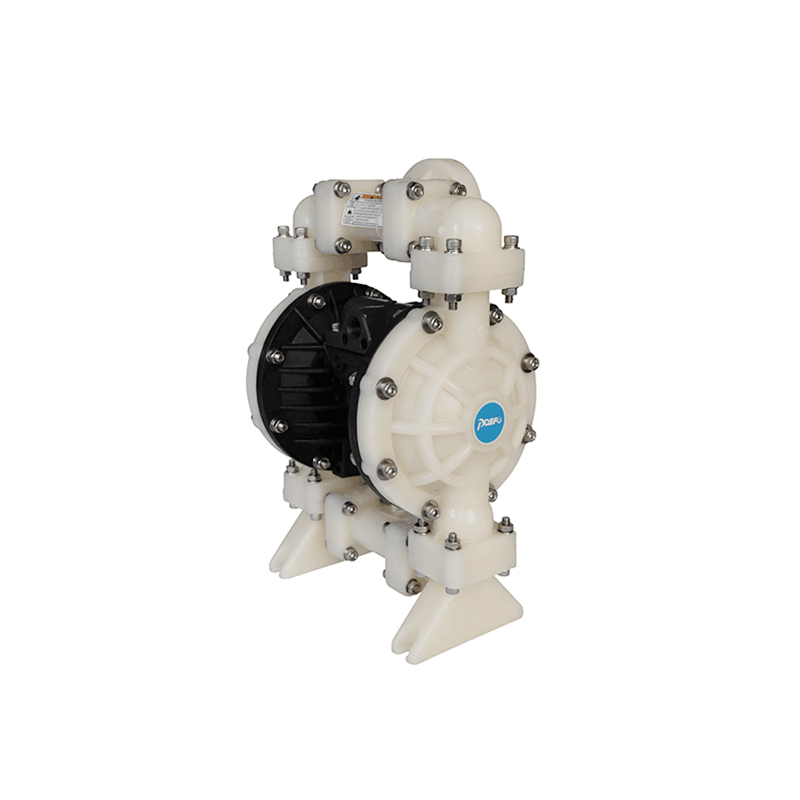

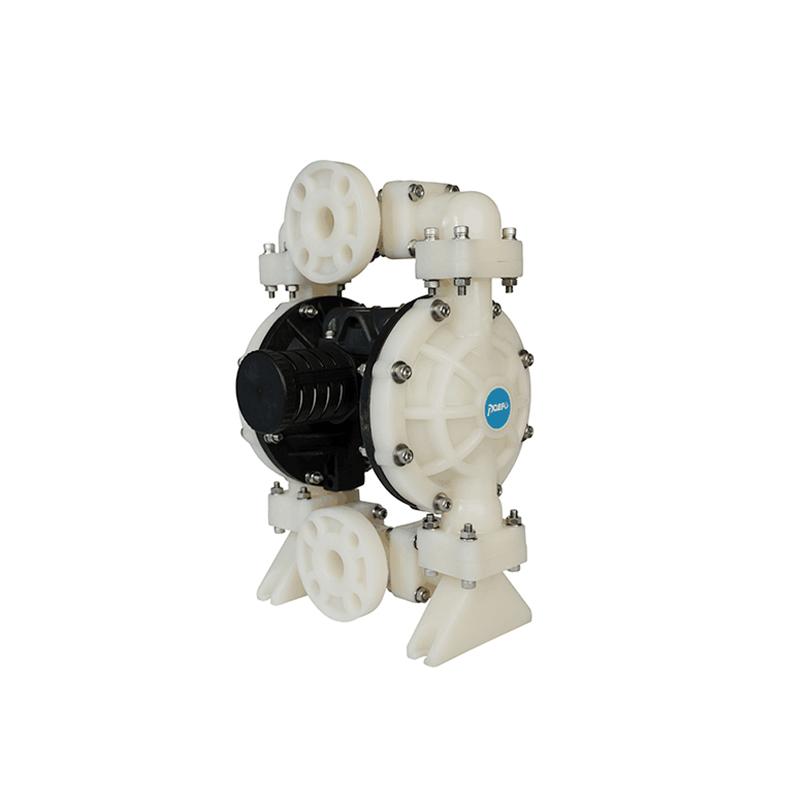

AOK25 Product Picture AOK25 Product Picture
AOK25 Product Picture AOK25 Product Picture

Performance parameter:

Model

AOK25-KV



Inlet/ Outlet size

mm

25

inch

1

Flow Rate



m3/h

9.42

L/min

157

Head (m)

84

Suction Stroke (m)

8

Max. Particle Diameter (mm)

4

Max.Air Pressure (kg/cm²)

8.4

Max.Air Consumption (m³/min)

1.12

Diaphragm

Teflon, Santoprene, Buna-N, Viton, Hytrel, etc.

Valve ball

Teflon, Stainless steel, Santoprene, Hytrel, Viton, etc.

Valve seat

Santoprene, Teflon, Viton, Hytrel, etc.

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8

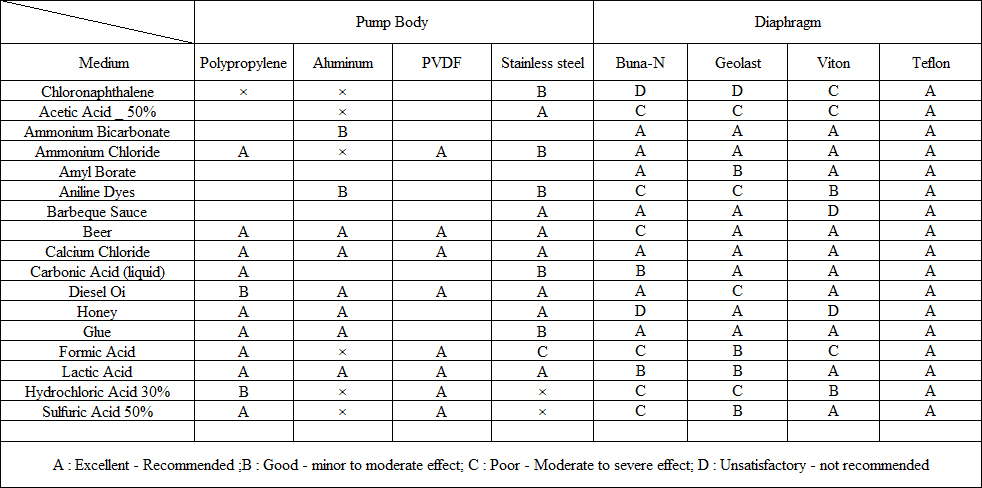

Corrosion table of chemical materials:

Chemical Corrosion Comparison Table

Features:

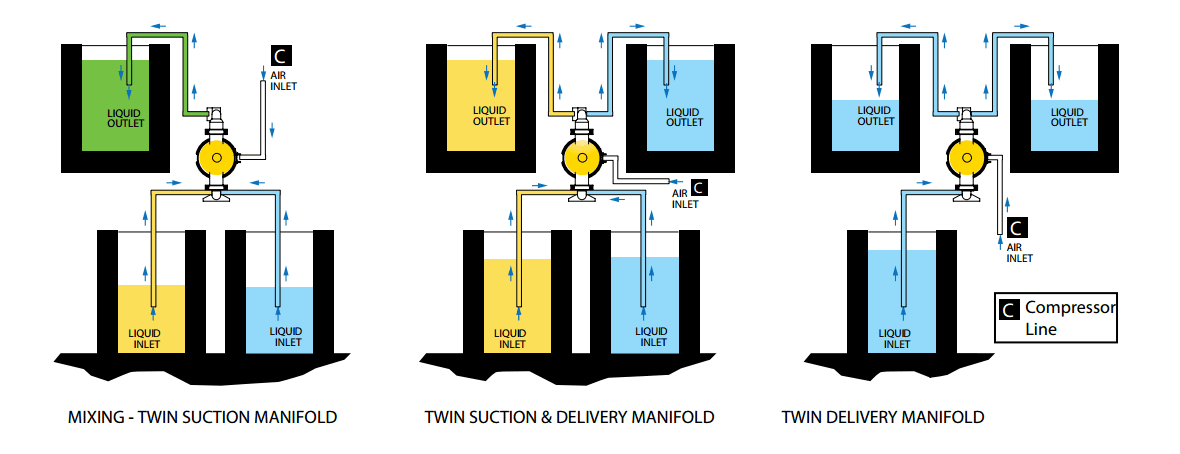

1- The device is designed with three segments, conducive to the flexible and convenient installation, different liquids can be pumped simultaneously.

As shown in figure:

Features

2- Wear resistance, high mechanical strength and toughness.

3- Weather resistance, anti-ultraviolet and nuclear rays.

4- The pump can work under water.

5- Has self-priming function, Very low shear force on the material.

6- Small size, light weight, easy to move and carry.

7- Can run empty, no danger.

8- It has good chemical stability, excellent chemical resistance, and good heat stability.

9- The flow can be adjusted, and a throttle valve can be installed at the material outlet to adjust the flow.

10- Explosion-proof, pneumatic diaphragm pump does not use electricity as power, after grounding will not produce electric spark.

11- It can pass through the liquid containing particles and is not easy to be blocked.

12- The fluid that can be transported is extremely wide, from low-viscosity to high-viscosity, from low-corrosive to highly-corrosive.

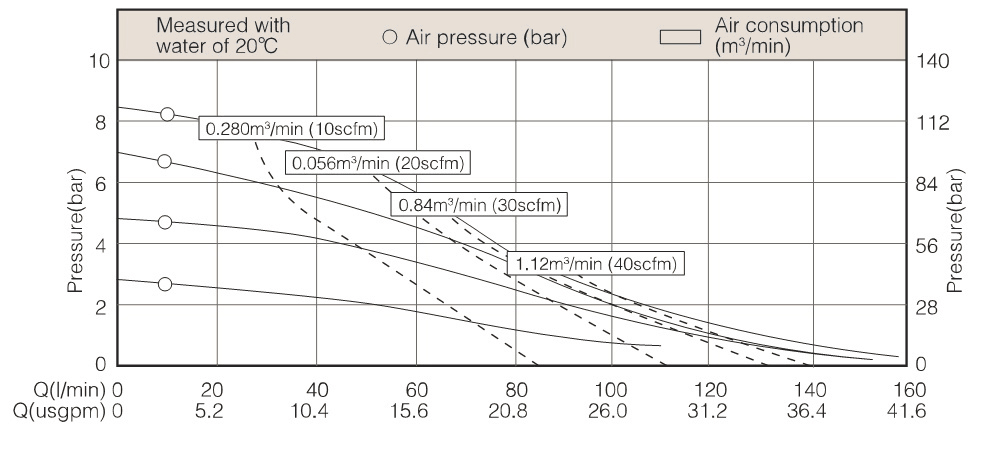

Performance curve:

Performance Curve

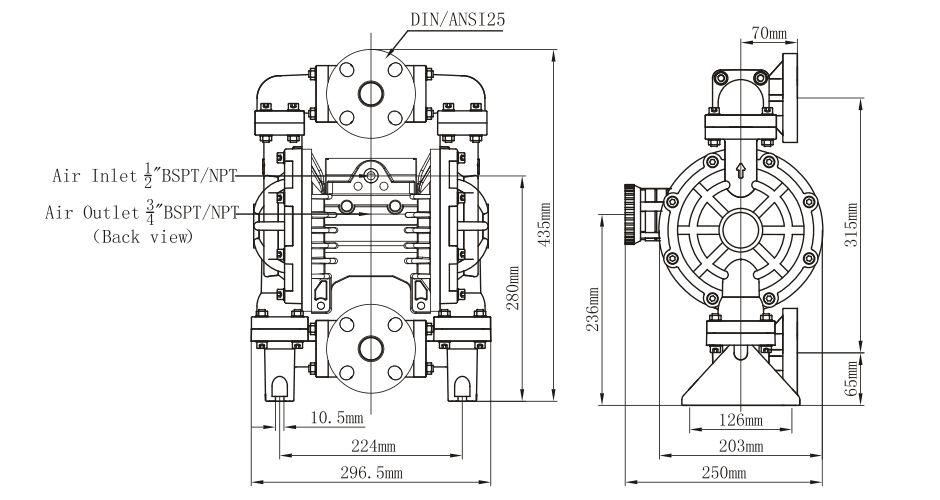

Installation size:

 Installation Size

Applications:

Paint industry

Chemical industry

Adhesive and glue industry

Ceramic industry

Daily chemical industry

Environmental protection and wastewater treatment industry

Marine industry
