AOK Air Operated Diaphragm Pump

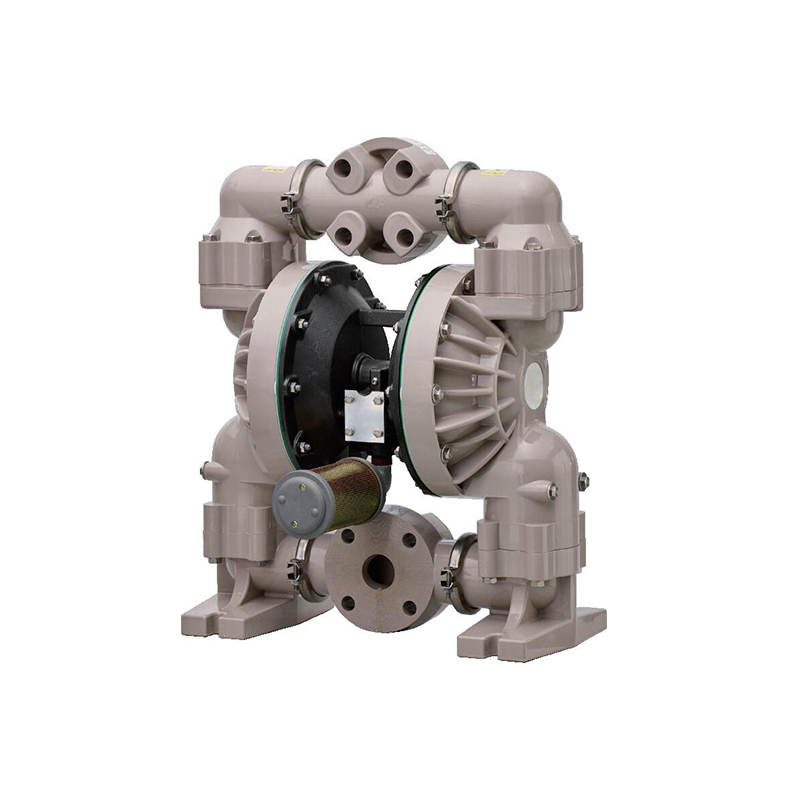

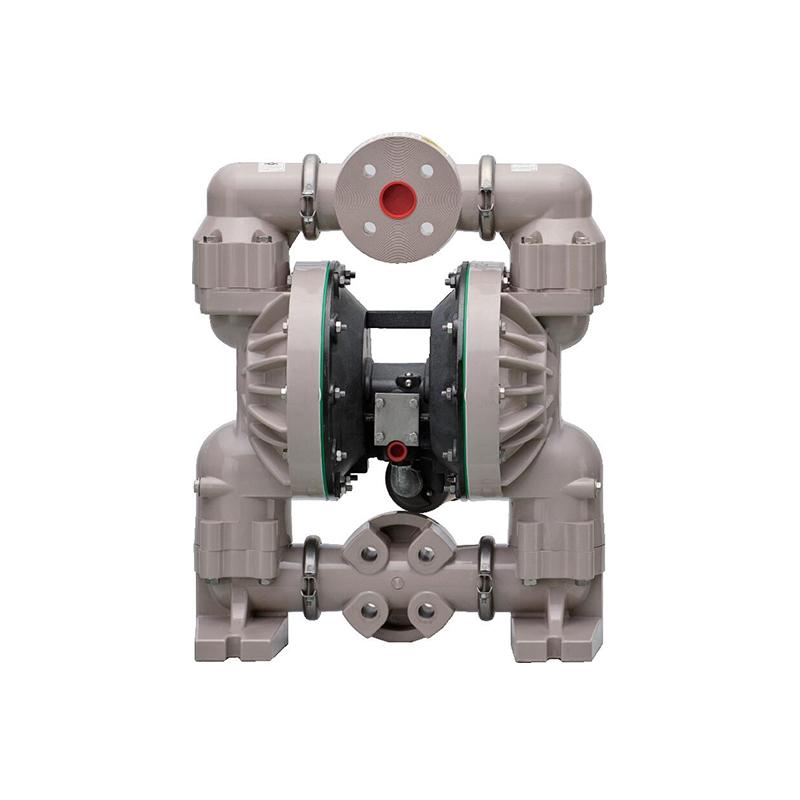

High Capacity Air Operated Membrane Pump AOE200

2inch polypropylene air operated duplex diaphragm pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.

AOE2


AOE2″-Plastic Pump Performance Parameter

2Technical Parameters:

Proportion

1:1

Max Flow

548.8 L/Min

Displacement per cycle

2.7L

Air inlet

1/2-14 N.P.T.F-1

Fluid inlet

2A.N.S.I法兰

Fluid outlet

2A.N.S.I法兰

Max service pressure

0.83 Mpa

Max Particle Diameter

6.4 mm

Weight

28.1Kg

Maximum dry suction height

4.27m

Noise level

Mpa

c.p.m

bd(A

0.5

60

78

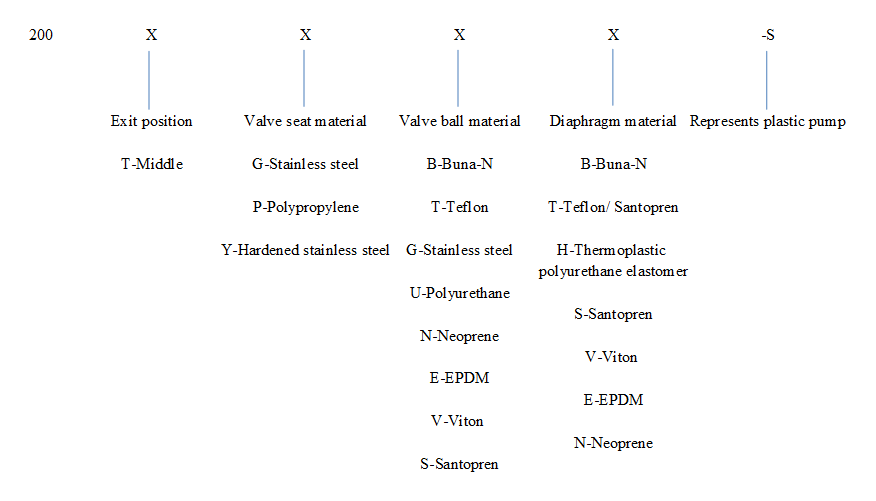

Model specification

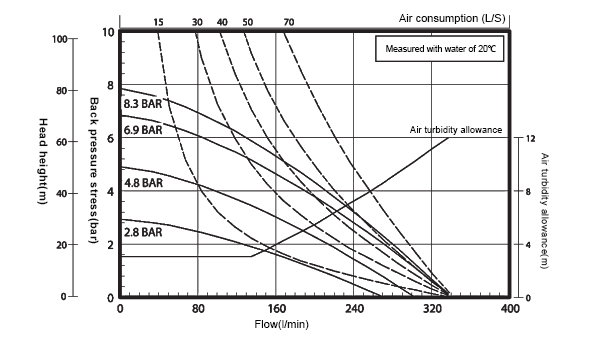

Performance curve:

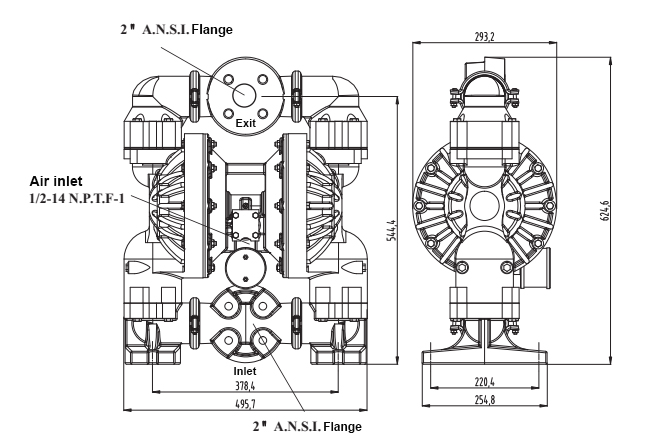

Installation size:


Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
