AOK Air Operated Diaphragm Pump
Products
Home /AOE Membrane Pump /

AOE Metal Pump Series

 /Aluminum Alloy Air Operated Double Diaphragm Pump AOE100

1Inch Pneumatic Diaphragm Pump
1Inch Pneumatic Diaphragm Pump

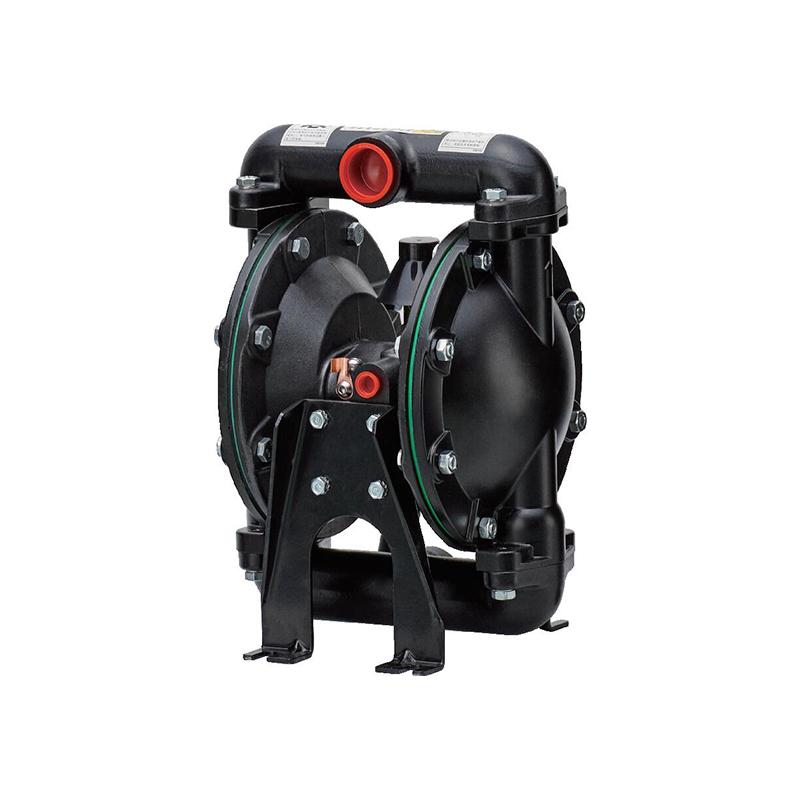

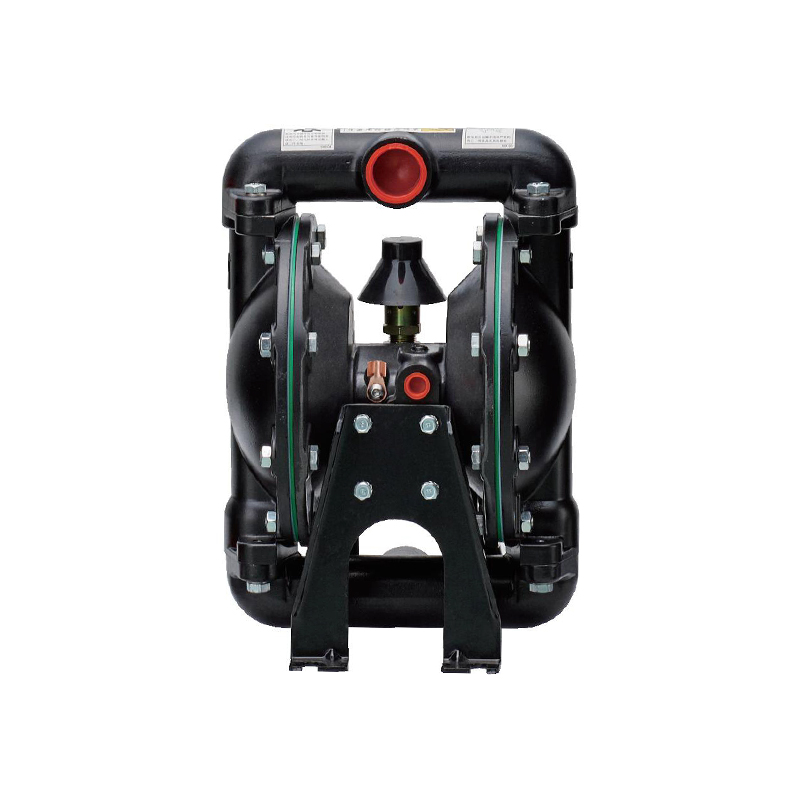

Aluminum Alloy Air Operated Double Diaphragm Pump AOE100

Aluminum alloy double diaphragm pump not only can exhaust the flow liquid, but also can convey some uneasy flowed medium, with the merits of self priming pump, slurry pump and impurity pump, etc. It is an excellent aluminum alloy diaphragm pump.

Inquiry now

AOE1

AOE1″-Metal Pump Performance Parameter：

1″ Technical Parameters:

Proportion

1:1

Max Flow

133 L/Min

Displacement per cycle

0.64 L

Air inlet

1/4-18 N.P.T.F-1

Fluid inlet

1-11-1/2 N.P.T.F-1 Rp1

Fluid outlet

1-11-1/2 N.P.T.F-1 Rp1

Max service pressure

0.83 Mpa

Max Particle Diameter

3.2 mm

Weight

7.9Kg（100PXXX-S）

13Kg（100TXXX-S）

13Kg（100DXXX-S）

Maximum dry suction height

6.1m

Noise level

Mpa

c.p.m

bd(A）

0.5

60

75

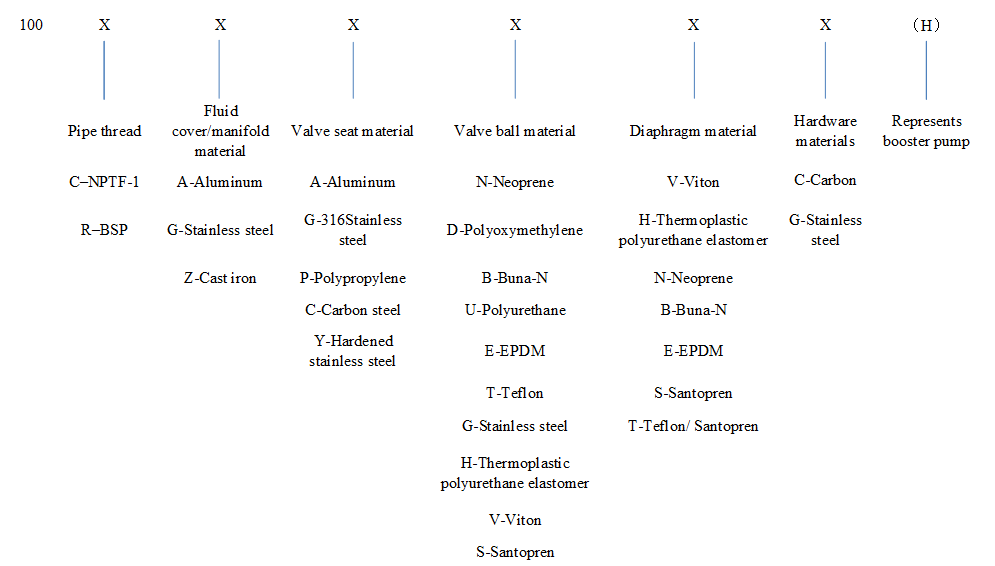

Model specification:

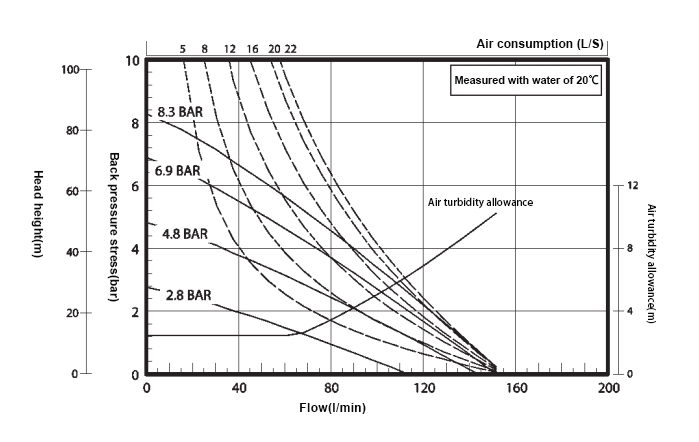

Performance curve：

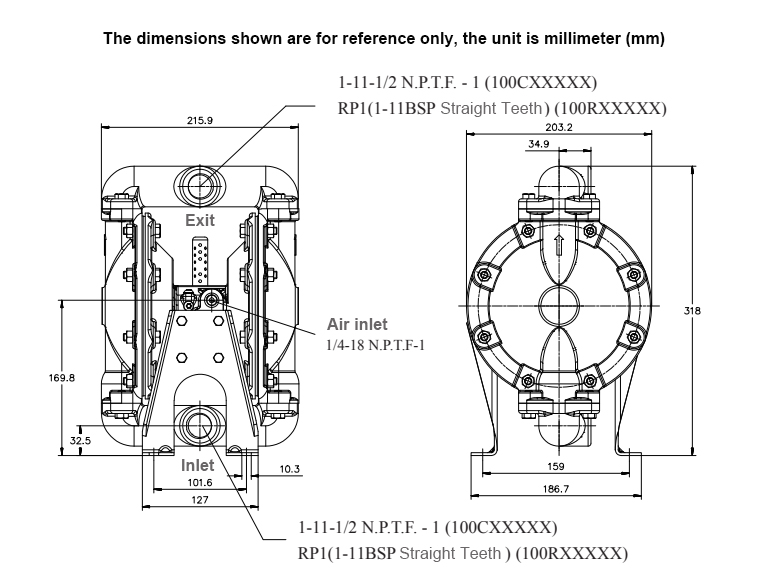

Installation size：

Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×

　

B

D

D

C

A

Acetic Acid _ 50%

　

×

　

A

C

C

C

A

Ammonium Bicarbonate

　

B

　

　

A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate

　

　

　

　

A

B

A

A

Aniline Dyes

　

B

　

B

C

C

B

A

Barbeque Sauce

　

　

　

A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A

　

　

B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A

　

A

D

A

D

A

Glue

A

A

　

B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
