AOK Air Operated Diaphragm Pump

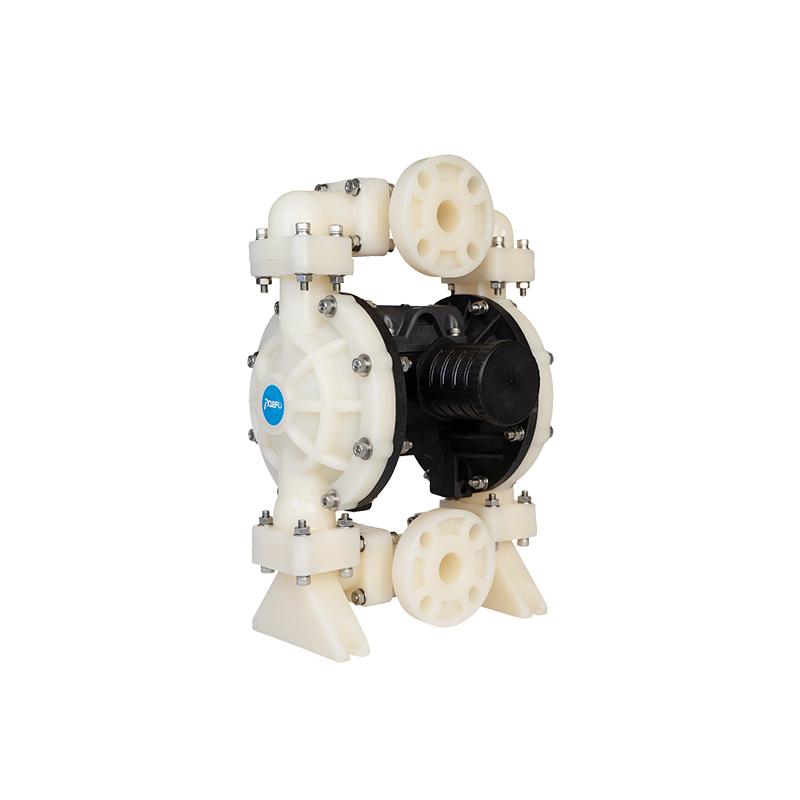

PVDF Air Operated Diaphragm Pump AOK40

AOK40 PVDF pneumatic diaphragm pump powered by compressed air, when the 1.5 Inch Compressor Air Diaphragm Pump exhaust is an expansion endothermic process. And the AOK40 PVDF self priming pneumatic duplex diaphragm pump working temperature is reduced, no harmful gas discharge.

AOK40-PVDF Product Description:


The client always ask me that need a super chemical pump for different acid .

Now he have a best choice——air operated double diaphragm pump .

The fluid chamber is PVDF , have a great chemical resistance , can bear high corrosive and toxic substances ,  Like Sodium Hydroxide ( NAOH ) , Sulfuric Acid ( S2SO4 ) , Aqua regia , Propyhomoserin etc ,  This material also can withstand  Max 93.3 ℃ / 200℉ liquid .

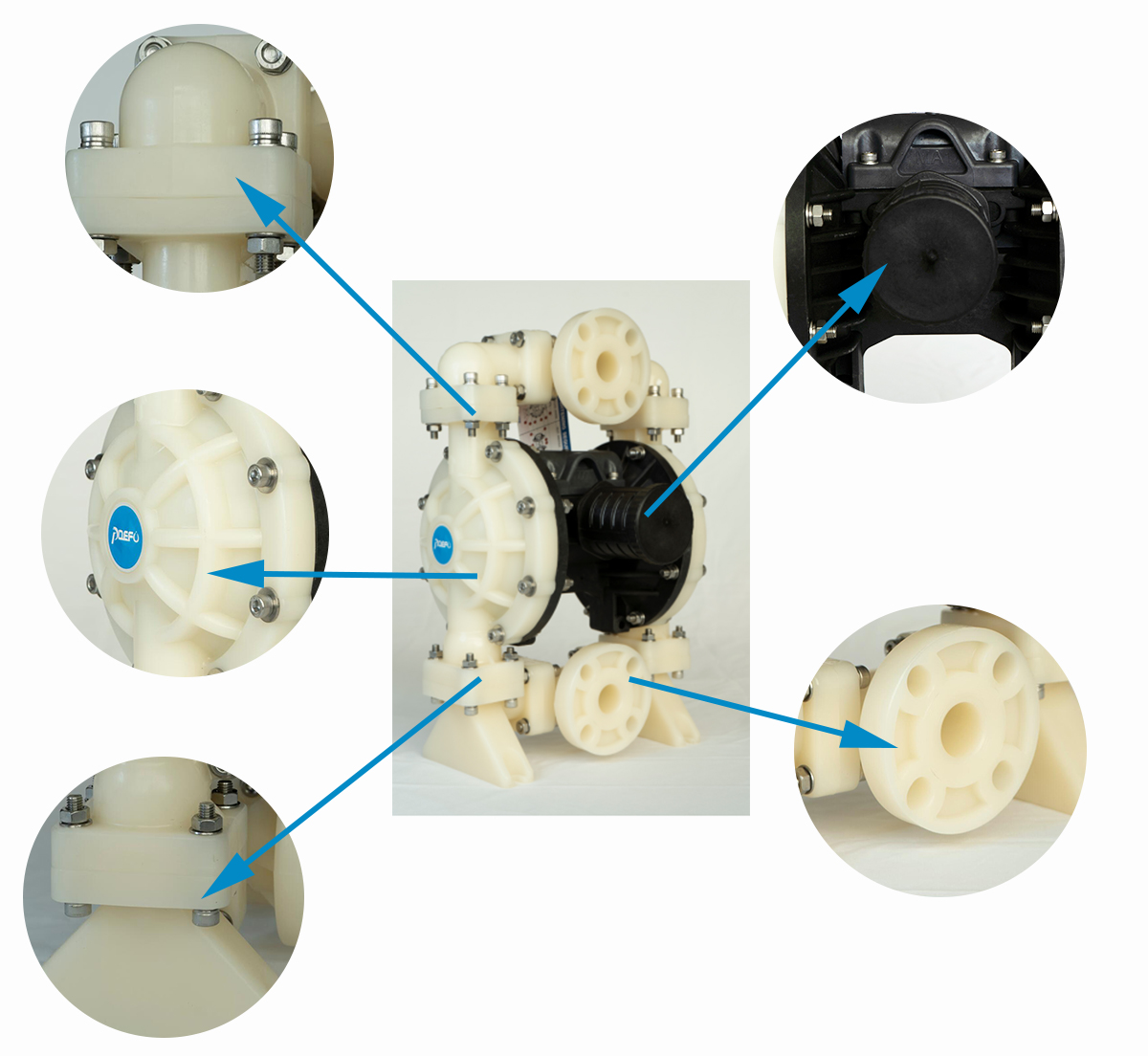

AOK40 Product Detail Drawing

PVDF Air Operated Diaphragm Pump Features:

1- Wear resistance, high mechanical strength and toughness.

2- Good heat resistance and high dielectric strength.

3- Small size, light weight, easy to move and carry.

4- Can run empty, no danger.

5- It has good chemical stability, excellent chemical resistance, and good heat stability.

6- No complicated control system, no cables, fuses, etc.

7- The flow can be adjusted, and a throttle valve can be installed at the material outlet to adjust the flow.

8- Explosion-proof, pneumatic diaphragm pump does not use electricity as power, after grounding will not produce electric spark.

Application:

1- The pump can deliver peanut butter, mashed tomatoes, mashed potatoes, jam, chocolate, as well as syrup and molasses, etc.

2- oil paint, gum, pigment, coating, Various adhesives and glues, etc.

3- various kind of glaze slip for tile, porcelain, brick and pottery.

4- Various emulsions and stuffing.

5- Various highly toxic, flammable and volatile liquids.

6- Various highly acidic, basic and corrosive medium.

7- The transportation of high temperature liquid, The maximum liquid temperature can be 150℃.

8- AOK air operated diaphragm pump can be matched with plate-and-frame filter press for sewage treatment.

Hot PVDF AODD Pump AOK40:

Model

AOK40-KV



Inlet/ Outlet size

mm

40

inch

1.5

Flow Rate



m3/h

21.48

L/min

358

Head (m)

84

Suction Stroke (m)

8

Max. Particle Diameter (mm)

5

Max.Air Pressure (kg/cm²)

8.4

Max.Air Consumption (m³/min)

2.24

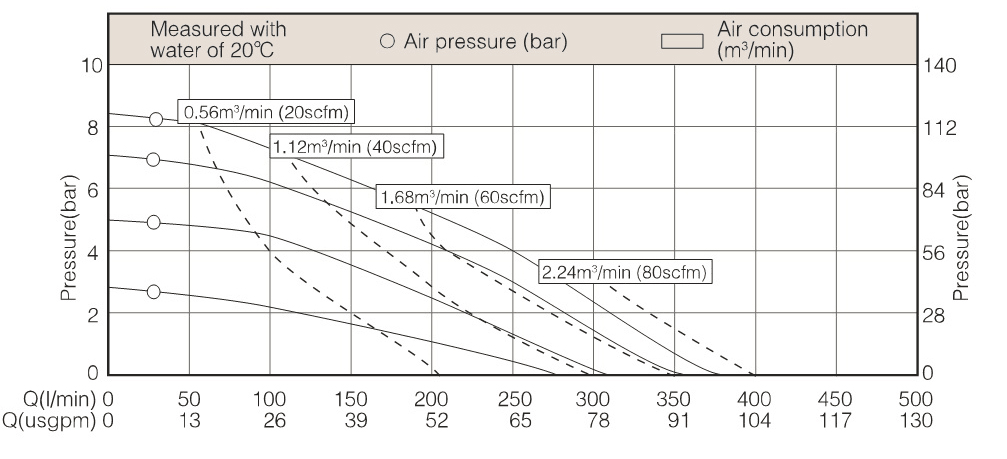

Performance curve:

Performance Curve

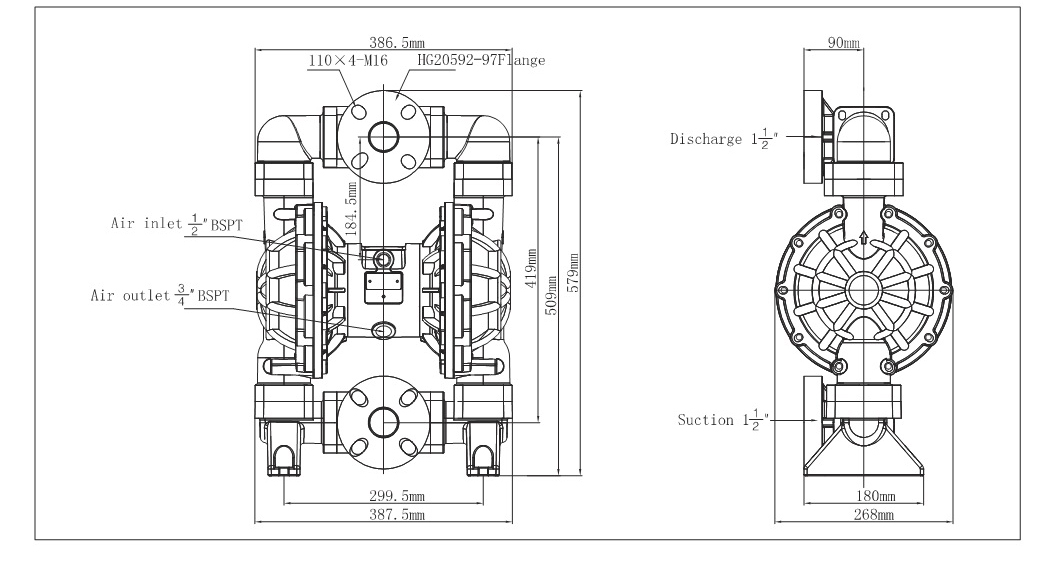

Installation Size:

Installation Size

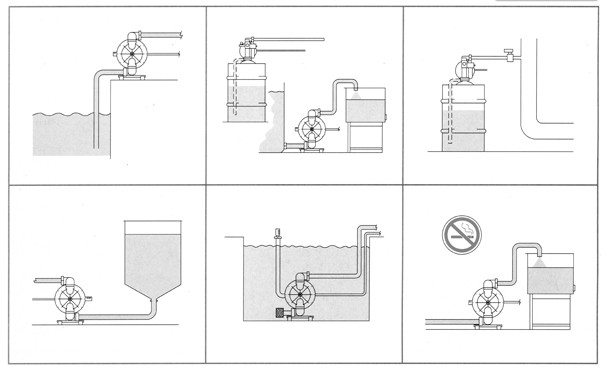

Installation Guide:

Installation Guide

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
