AOK Air Operated Diaphragm Pump

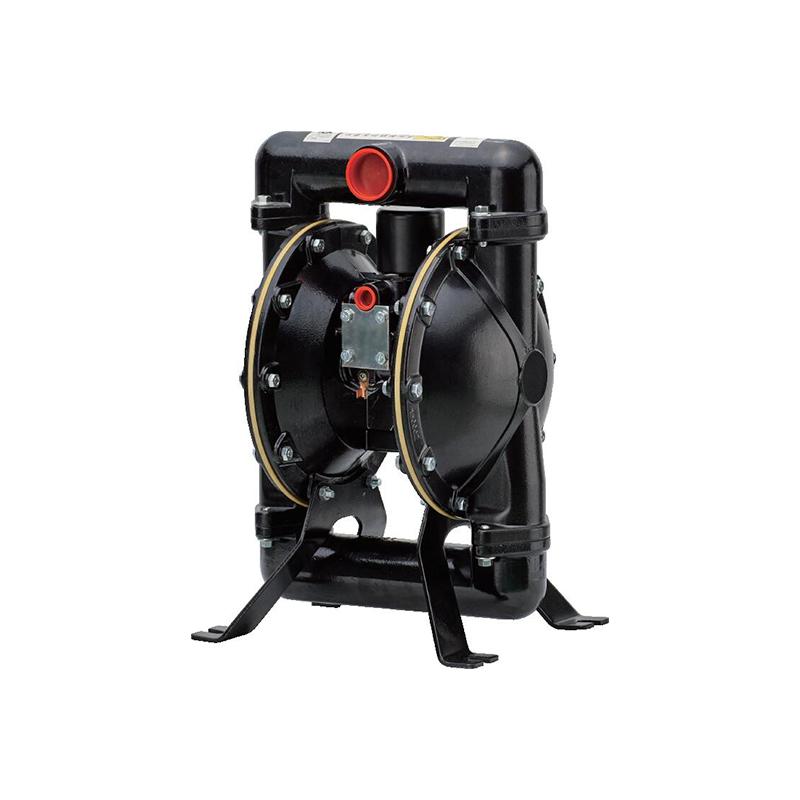

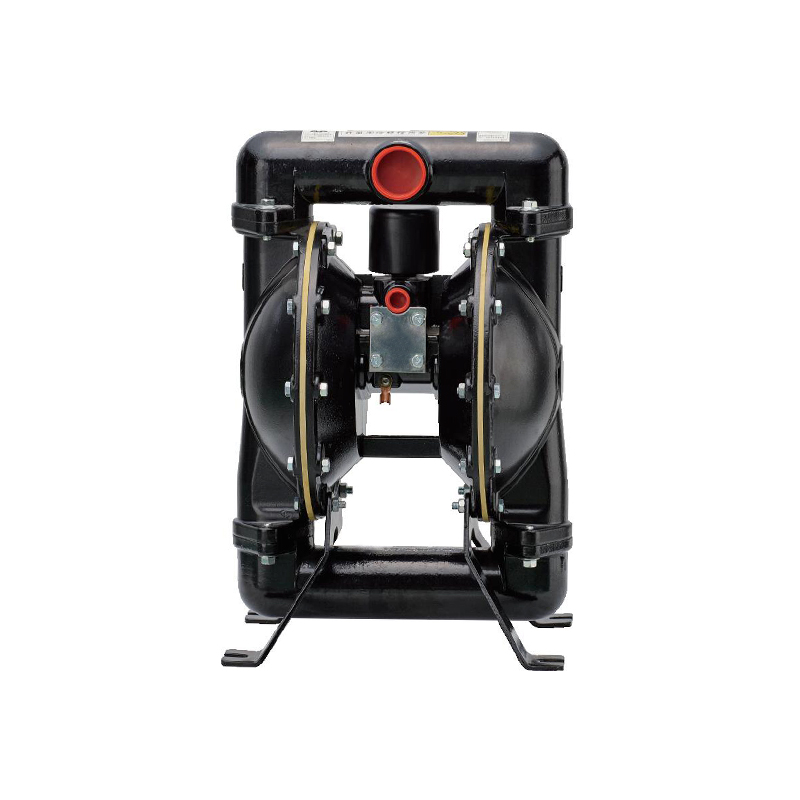

Aluminum Alloy Mine Air Operated Diaphragm Pump AOE40-190/0.1

1.5inch air operated diaphragm pump in mining industry: tunnel sewage, drainage, coal slime and stone slurry, cement slurry, mortar grouting, explosive slurry, lubricating oil, etc.

AOE1-1/2″Mine pneumatic diaphragm pump series



AOE1-1/2″-Mine pneumatic diaphragm pump Performance Parameter:BQG40-190/0.1



1-1/2Technical Parameters:

Proportion

1:1

Max Flow

340.7 L/Min

Displacement per cycle

2.42L

Air inlet

1/2-14 N.P.T.F-1

Fluid inlet

Rp1-1/2

Fluid outlet

Rp1-1/2

Max service pressure

0.75 Mpa

Max Particle Diameter

6.4mm

Weight

19.8Kg

Maximum dry suction height

5.8m

Noise level

Mpa

c.p.m

bd(A

0.5

60

95

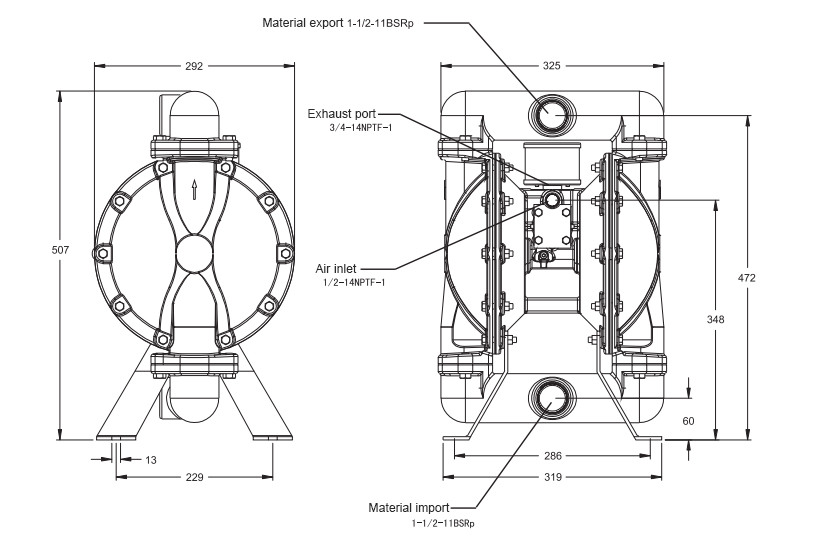

Installation size:
