AOK Air Operated Diaphragm Pump

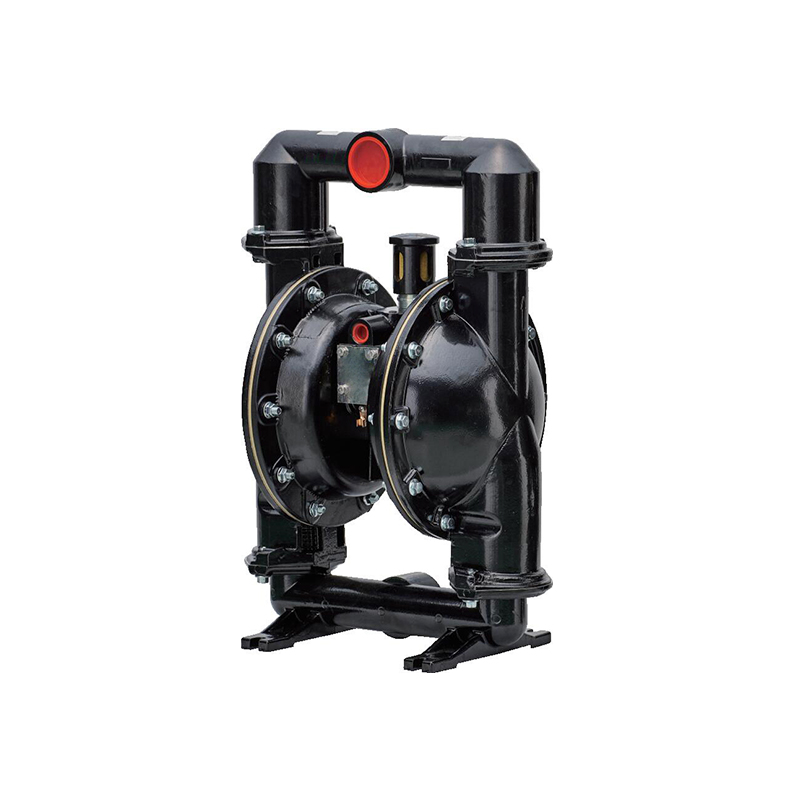

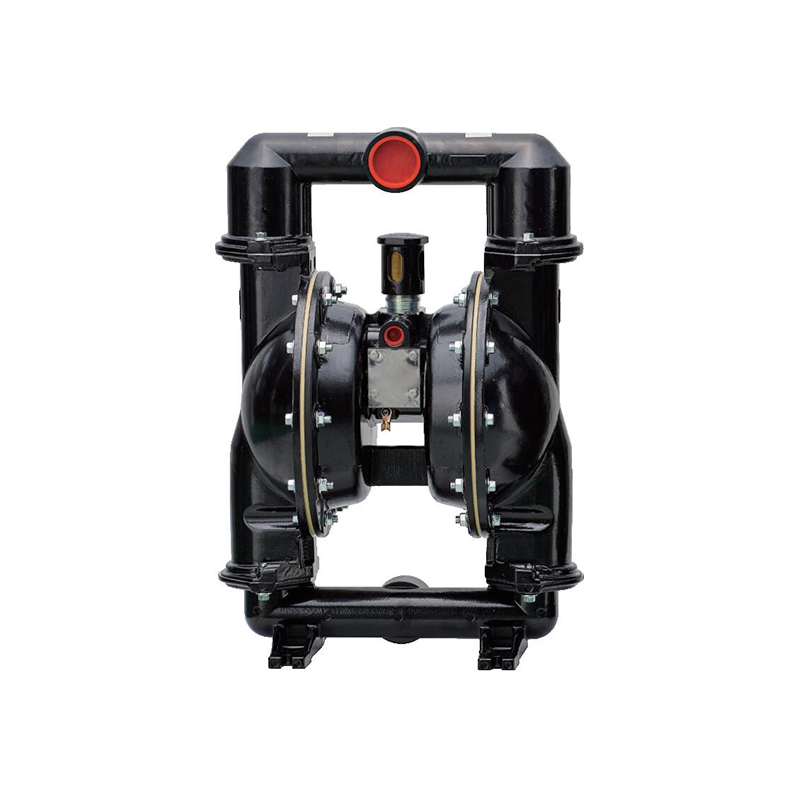

2Inch Mine Pneumatic Double Diaphragm Pump AOE50-370/0.1

Aluminum mining air operated double diaphragm pump low density, high strength. It can be used for transporting chemically unstable fluids.

AOE2″Mine pneumatic diaphragm pump series



AOE2″-Mine pneumatic diaphragm pump Performance Parameter:BQG50-370/0.1

2″ Technical Parameters:

Proportion

1:1

Max Flow

651 L/Min

Displacement per cycle

5.3L

Air inlet

3/4-14 N.P.T.F-1

Fluid inlet

Rp2

Fluid outlet

Rp2

Max service pressure

0.75 Mpa

Max Particle Diameter

6.4mm

Weight

27.8Kg

Maximum dry suction height

8.3m

Noise level

Mpa

c.p.m

bd(A)

0.5

60

95

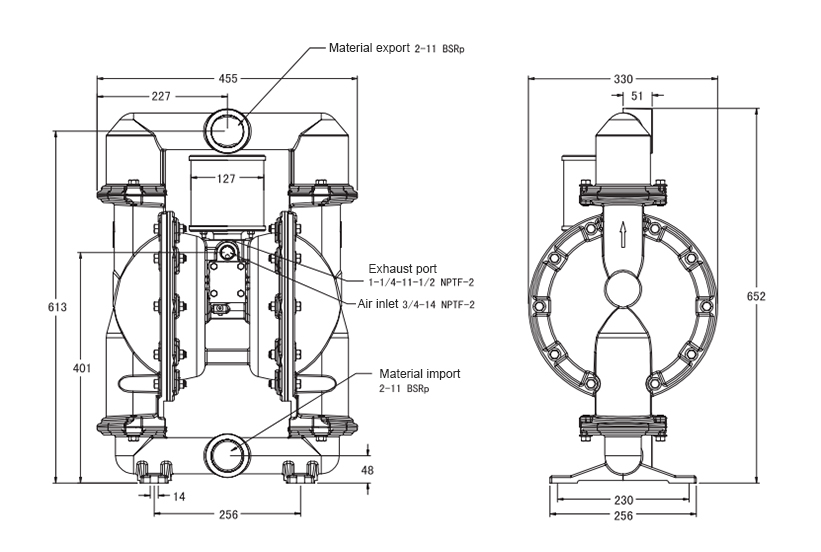

Installation size:
