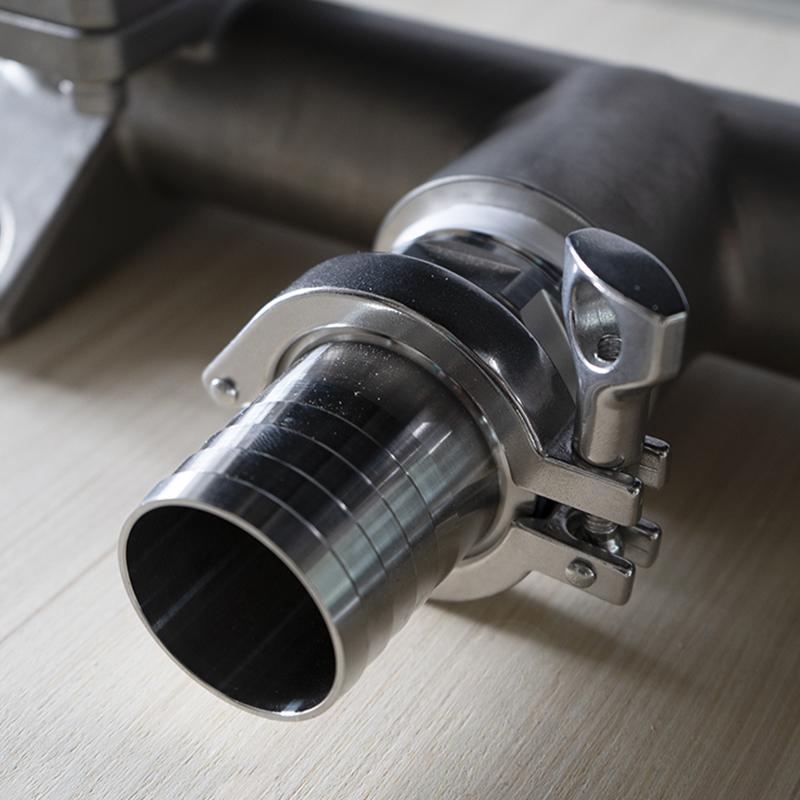

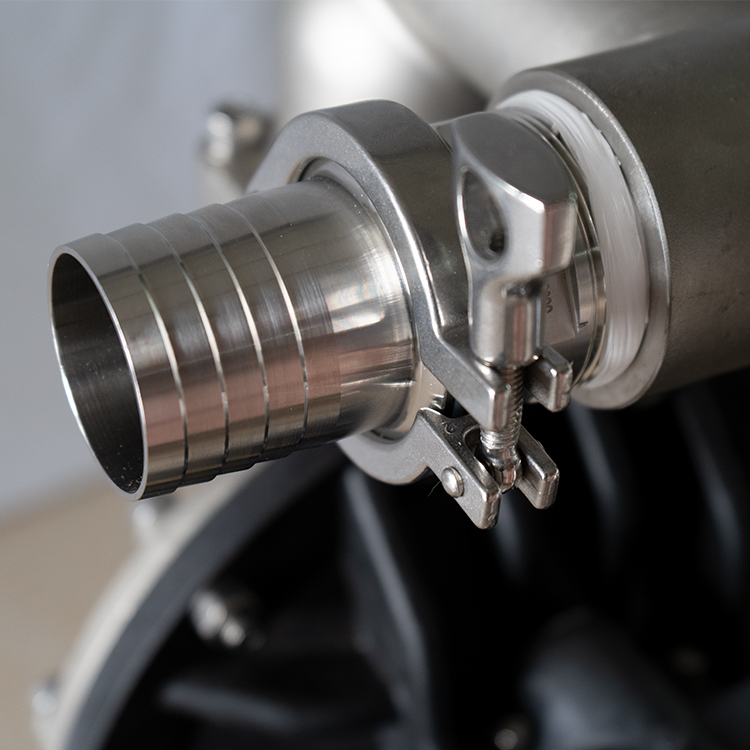

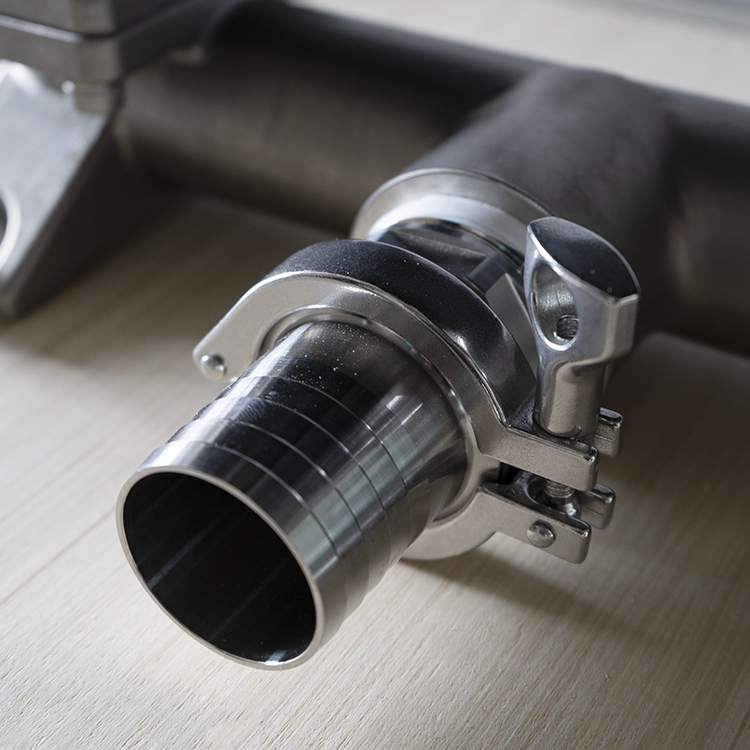

Quick Connector

AOK50 high flow flap valve Air Operated Diaphragm Pump liquid flow is spacious and good through performance, It is a Large particle passing capacity diaphragm pump, It has a strong capacity for the passage of large solid particles. allowing passage of solid particles with a maximum particle diameter of 40 mm. This aluminum alloy flap valve air operated diaphragm pump is very popular in chemical industry.

AOK50 PVDF self priming AODD pump is easy to use, reliable and simple to operate. When the 2inch PVDF air powered diaphragm pump accident will automatically stop, with good self-protection performance. When the AOK50 pneumatic diaphragm pump everything back to normal, and can automatically start running.

The O-ring is also called the sealing ring, It is a kind of rubber sealing ring with circular cross section, which is the most common mechanical design for sealing.

AOE aluminum air driven pump with simple structure, less wearing parts, At the same time, the slurry double diaphragm pump is a kind of corrosion resistant pneumatic diaphragm pump, And it can transport viscosity within the range of 10000 centipoises of liquid.

Diaphragm Rod (Shaft)  from #321 stainless steel, the connecting rod has good corrosion resistance, abrasion resistance, and self-lubricating performance. Particularly grinded, the surface has lower friction coefficient.

Pneumatic coupling refers to air filter and pressure reducing valve. The pressure reducing valve can stabilize the pressure of the gas source, so that the gas source is in a constant state, which can reduce the damage to the valve or actuator and other hardware when the air pressure of the gas source changes abruptly. The filter is used to clean the air source. It can filter the water in the compressed air and avoid the water entering the device with the gas.

2 inch AOE high performance air operated diaphragm pump can be used according to different liquid medium different materials, in order to meet the needs of different users.

AOK40 PVDF pneumatic diaphragm pump powered by compressed air, when the 1.5 Inch Compressor Air Diaphragm Pump exhaust is an expansion endothermic process. And the AOK40 PVDF self priming pneumatic duplex diaphragm pump working temperature is reduced, no harmful gas discharge.
