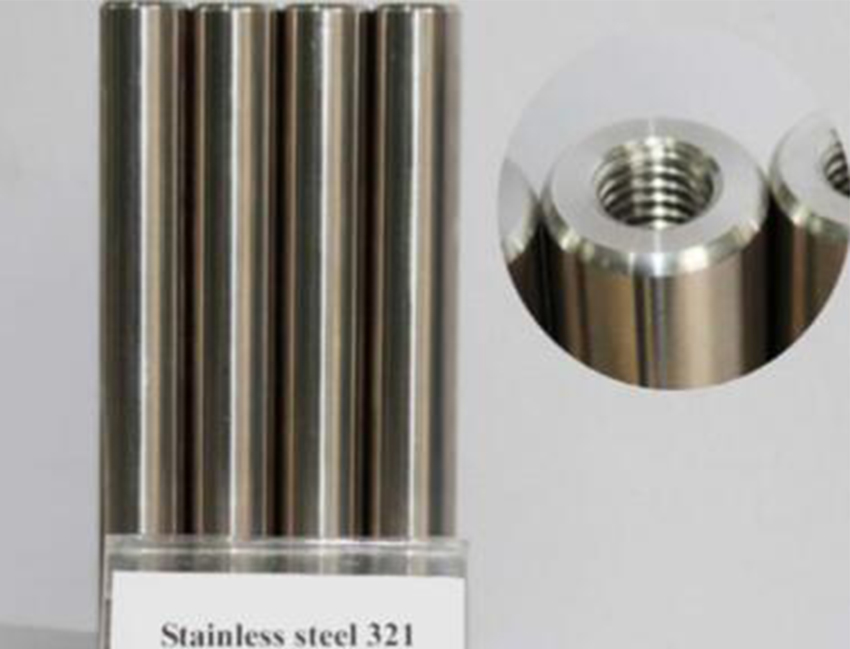

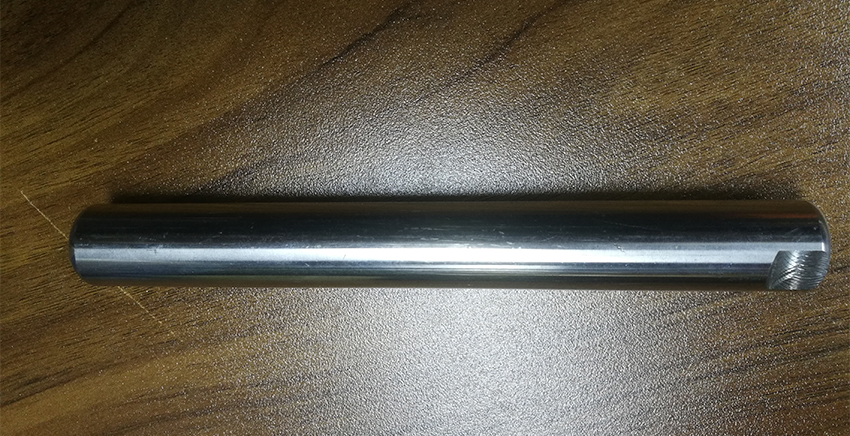

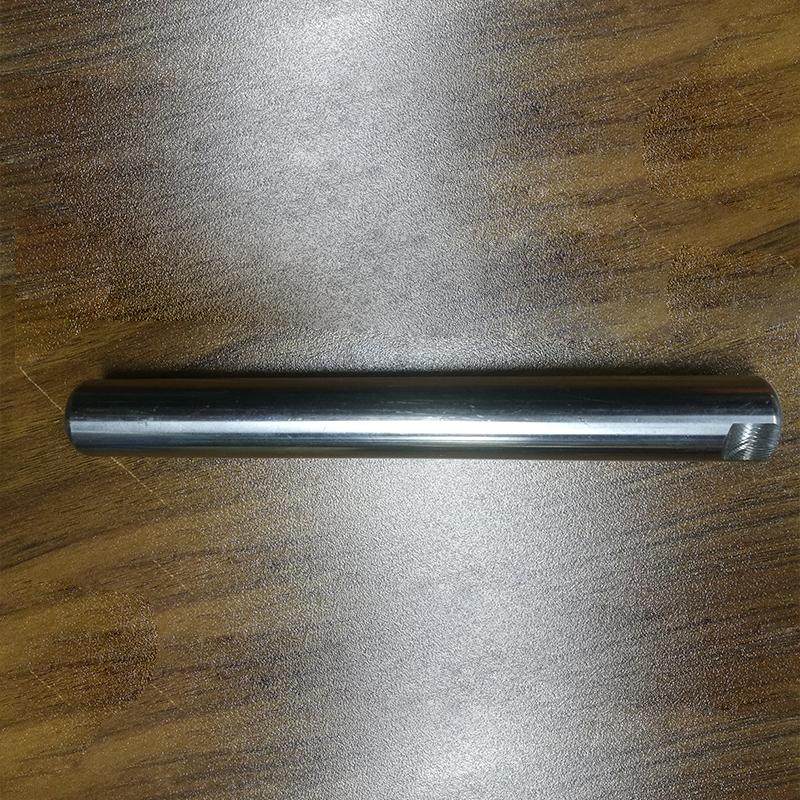

Diaphragm Rod (Shaft)

AOK80 PVDF self priming pneumatic duplex diaphragm pump can always remain efficient, not because of wear and tear and reduce efficiency. AOK80 PVDF air diaphragm pump can make 100% of the energy utilization, When the pneumatic diaphragm pump outlet is closed, the 3 inch PVDF air operated duplex diaphragm chemical pump will automatically stop. There is no equipment movement, wear, overload, heating phenomenon.

Plastic Membrane Pump ,which is driven by air. It is a kind of positive displacement pumps which volume changes caused by compressing diaphragms in both side.

Removable Muffler: The pump body installed with muffler, the delivery head and flow can pass the pneumatic valve open to realize the step less adjustment. Effectively reduce air duct noise.

2inch polypropylene air operated duplex diaphragm pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.

Diaphragm has Teflon (PTFE), Viton, Buna-n, Neoprene, Santoprene, EPDM, etc. materials. That is imported material, the diaphragm stress of air operated diaphragm pump is reduced to the minimum, and the service life is extended.

Our AOK50 PP high flow flap valve pneumatic diaphragm pump can be called the Large solid particle flap valve diaphragm pump, it can pass through the larger solid particles. the use of the AOK50 PP flap valve waste water diaphragm pump even in bad working conditions, the impurities of sewage or complex liquid medium, is not easy to plug.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

AOK50 high flow flap valve Air Operated Diaphragm Pump liquid flow is spacious and good through performance, It is a Large particle passing capacity diaphragm pump, It has a strong capacity for the passage of large solid particles. allowing passage of solid particles with a maximum particle diameter of 40 mm. This aluminum alloy flap valve air operated diaphragm pump is very popular in chemical industry.
