AOK Air Operated Diaphragm Pump

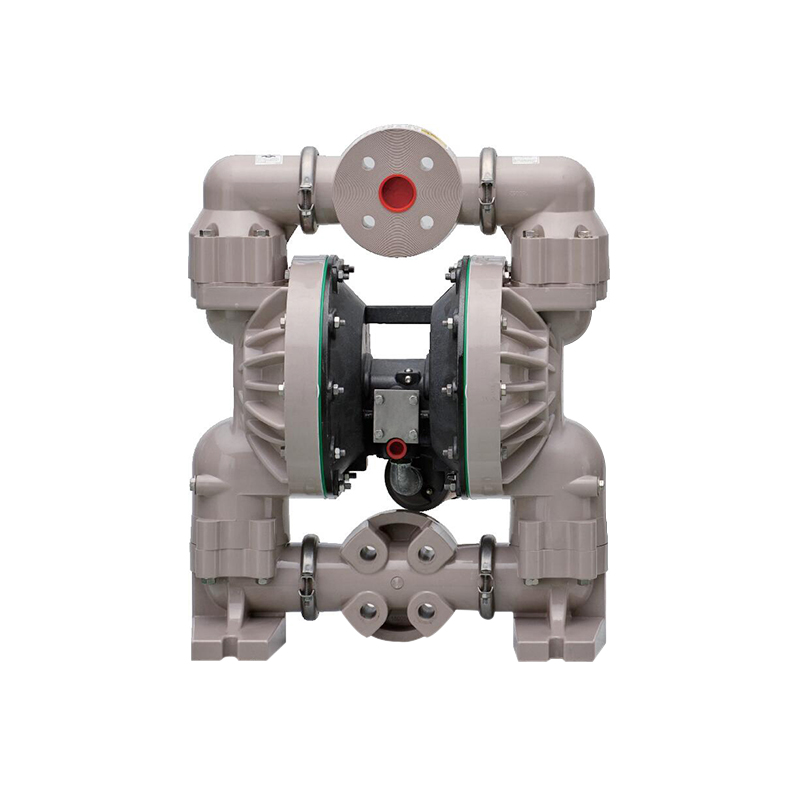

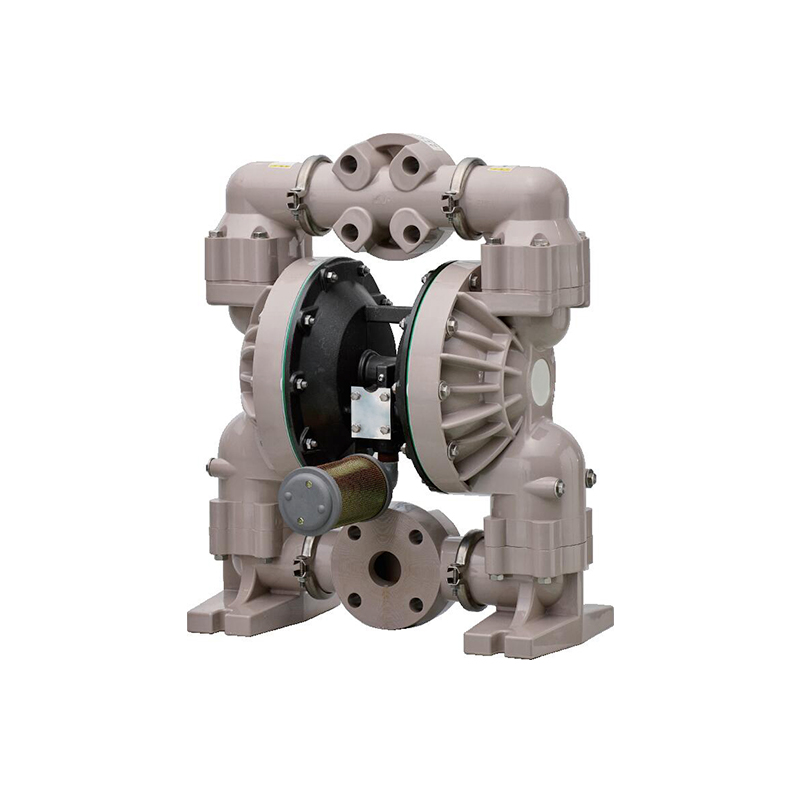

High Flow Plastic Air Operated Diaphragm Pump AOE150

1.5 inch plastic air operated double diaphragm pump AODD pump is also known as corrosion resistant engineering plastic AODD pump, Its flow pump body part is made of polypropylene, is not rust, no pollution, strong corrosion resistance of the 1.5 inch diaphragm pump for paints & solvents, acid liquid.

AOE1.5


AOE1-1/2″-Plastic Pump Performance Parameter

1-1/2Technical Parameters:

Proportion

1:1

Max flow

378.5 L/Min

Displacement per cycle

2.54 L

Air inlet

1/2-14 N.P.T.F-1

Fluid inlet

1-1/2A.N.S.I Flange

Fluid outlet

1-1/2A.N.S.I Flange

Max service pressure

0.83 Mpa

Max particle diameter

6.4 mm

Weight

28.1Kg

Maximum dry suction height

4.27 m

Noise level

Mpa

c.p.m

bd(A

0.5

60

78

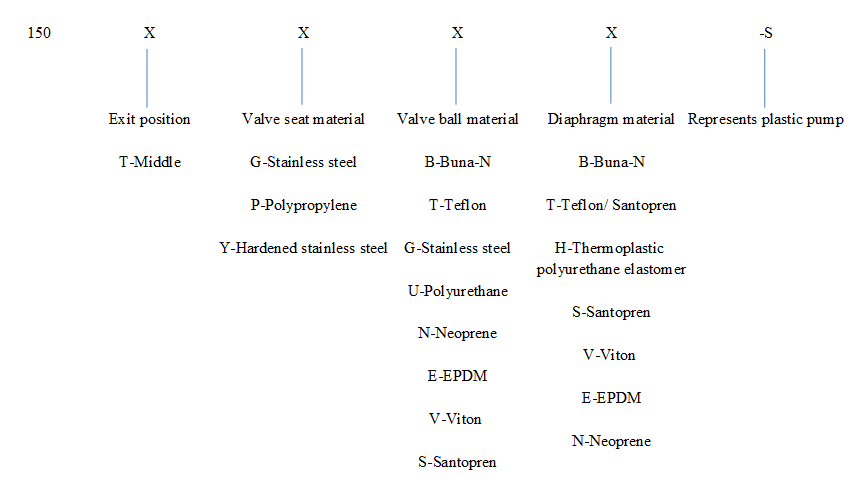

Model specification

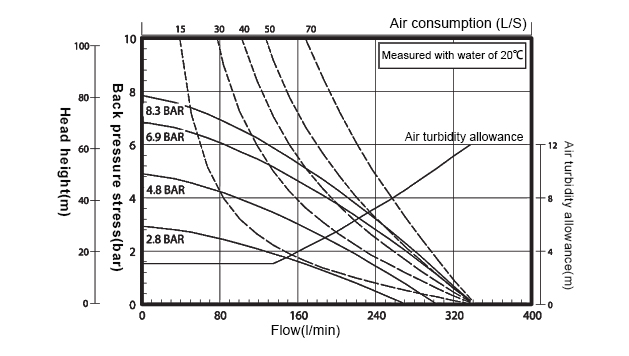

Performance curve:

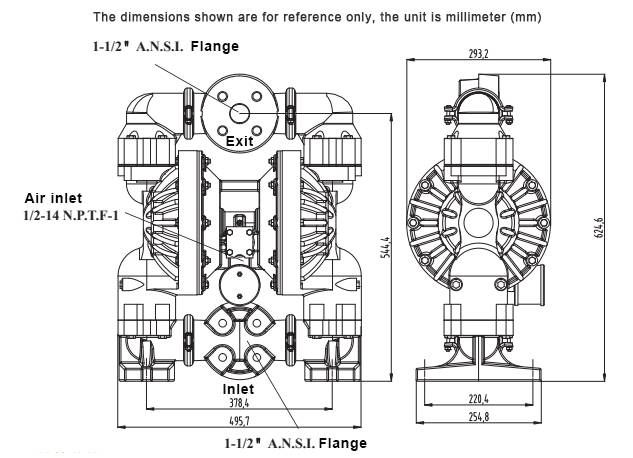

Installation size:


Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
