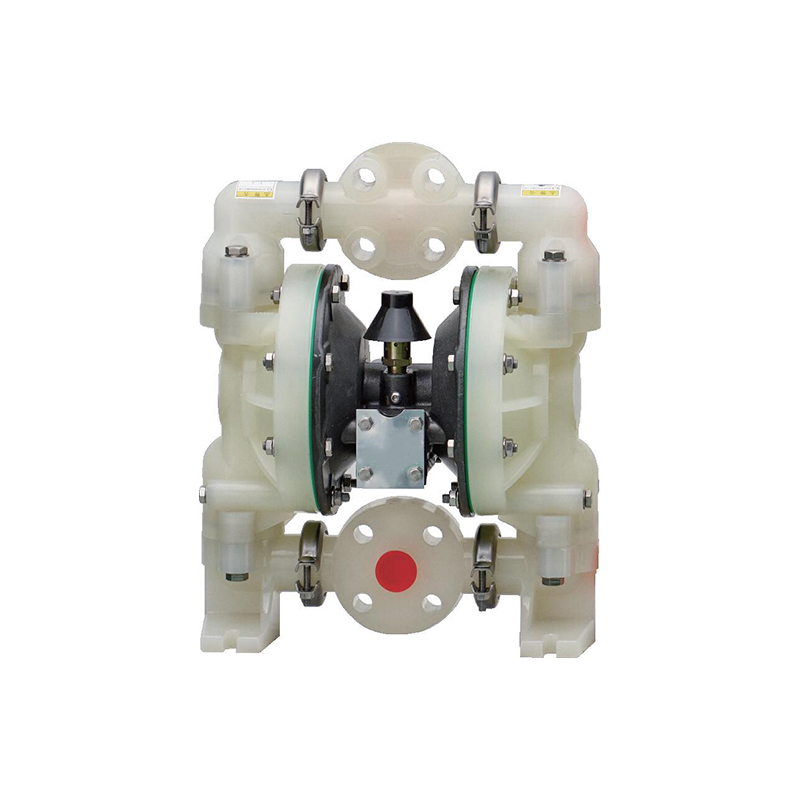

AOK Air Operated Diaphragm Pump

Plastic PP Polypropylene Membrane Pump

Plastic Membrane Pump ,which is driven by air. It is a kind of positive displacement pumps which volume changes caused by compressing diaphragms in both side.

Plastic pump series





Model

1/2″

1″

1 1/2″

2″

Max flowL/Min

49.2

177.9

378.5

548.8

Max service pressure

(Mpa)

0.69

0.83

0.83

0.83

Fluid inlet and outlet dimensionsinch

1/2″

1″

1.5″

2″

Motor body material

Polypropylene

Aluminum

Aluminum

Aluminum

Manifold fluid cover material

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Weight (Kg)

2.9050PXXX-S2.7050DXXX-S

8.1100PXXX-S8.9100TXXX-S8.5100DXXX-S

28.1

28.1

Max Particle Diameter (mm)

2.4

3.2

6.4

6.4
