AOK Air Operated Diaphragm Pump

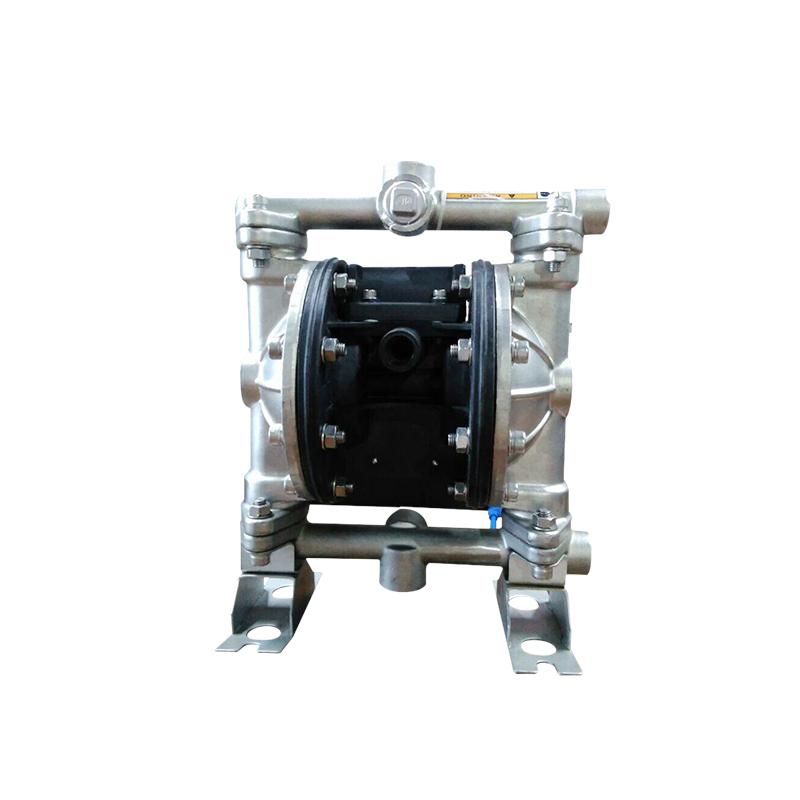

Stainless Steel LL316 Air Operated Diaphragm Pump AOK15

AODD pumps are high efficiency positive displacement reciprocating duplex diaphragm water pump that can be used in multiple fluid-transfer applications, It is a high efficiency diaphragm pump.

AOK15-316 Product Description


We stock all the sizes (1/4”, 3/8”, 1/2”, 3/4”, 1”,1.5”, 2”, 3”) diaphragm pumps.

Which sizes can be suitable for you? Which materials can be available for you?

Tell us your requirements and pumping medium, our team have the expertise across the widest range of pump products to help u make good solution.

AODD Pump Key Features:

·Run Dry

·Self Priming Function

·High Pressure to 8.4bar

·Temperature to 176℃

Usages of Air Diaphragm Pump:

Food industry: yeast, dough, fruit filling, icing, various jams, mayonnaise, mashed potatoes, starch, vegetable soup, soy sauce or other condiments, chocolate, cream, sponge cake, fillings, grease, butter, etc.

Cosmetics industry: all kinds of perfumes, creams, shower gels, gels, shampoos, lotions, toothpastes, etc.

Liquor industry: white wine, red wine, foreign wine, health wine, rice wine, beer, wine, rice wine, medicinal wine, hops.

Beverage industry: gas-liquid mixing, wine, juice, jam, corn syrup, milk, soda, Coca-Cola, popsicles, ice cream, ice cream, beer, wort, syrup, chocolate, cocoa butter, gelatin, etc.

Drugs: various medicinal liquids, blood products, biological products, sugar coatings, various ointments, glucose, oral liquids, plant extracts, ointments, alcohol, filtration aids, ultrafiltration, plasma, waste solvents.

Hot Stainless Steel 316 AODD Pump AOK15:

Model

AOK15



Inlet/ Outlet size

mm

15

inch

1/2

Flow Rate



m3/h

3.42

L/min

57

Head (m)

84

Max. Suction Lift (m)

7.6m (wet) ;4m(dry)

Max. Particle Diameter (mm)

2.5

Max. Air Pressure (kg/cm²)

8.4

Max. Air Consumption (m³/min)

0.56

Diaphragm Material

Teflon, Santoprene, Viton, Buna-N etc

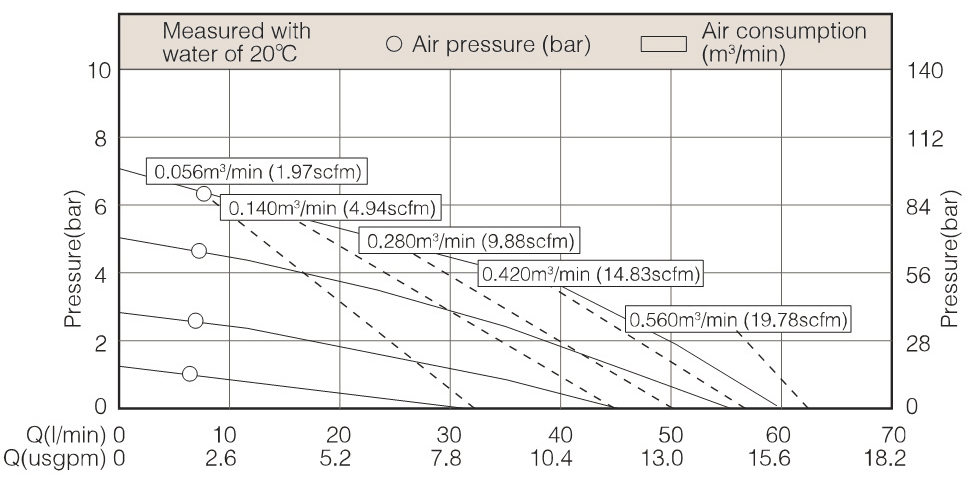

Performance curve:

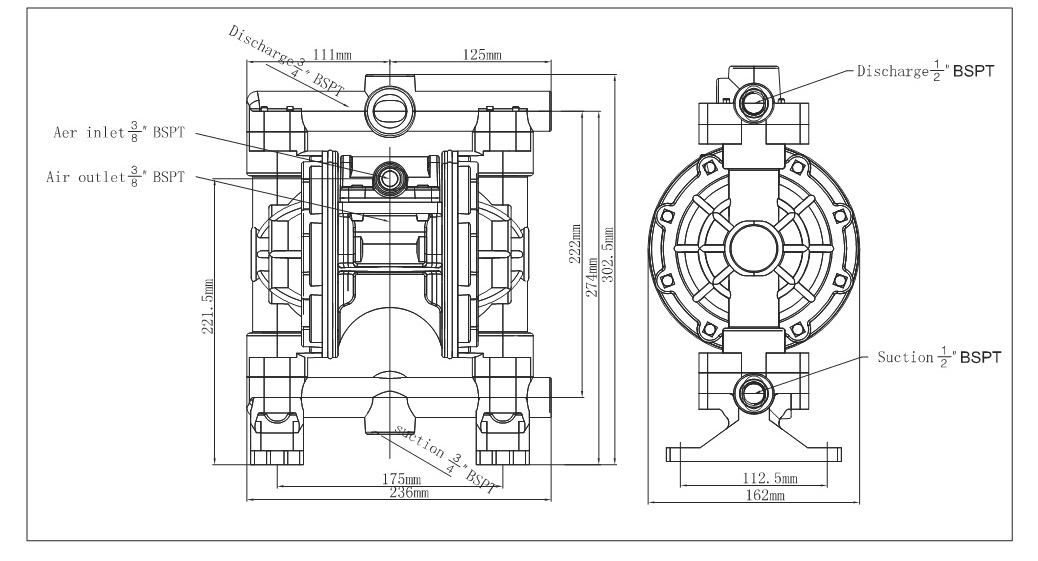

Installation size:

Pump Spare Parts:

Diaphragm

Valve ball and valve seat

Diaphragm rod (shaft)

 Typical Installation Guide

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
