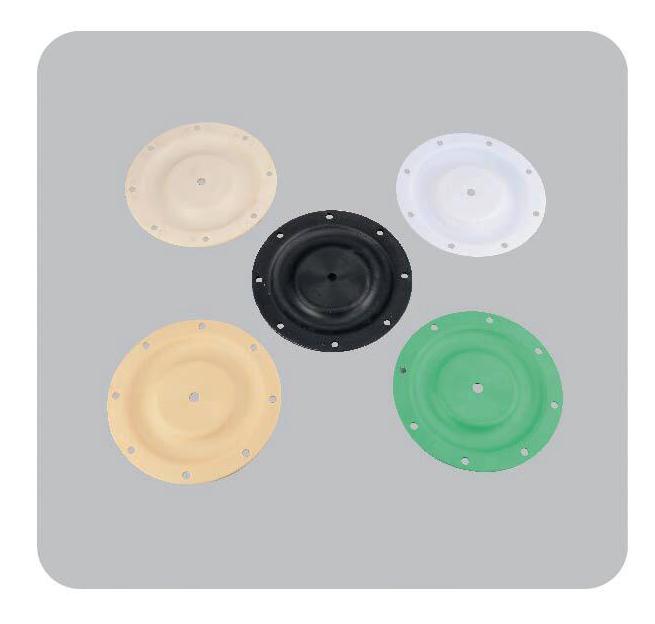

Air Membrane Pump Diaphragm Parts

The pump body installed with muffler, the delivery head and flow can pass the pneumatic valve open to realize the step less adjustment,  Effectively reduce air duct noise.

The valve seat materials are Teflon, Santoprene, Buna-n, etc.

The O-ring is also called the sealing ring, It is a kind of rubber sealing ring with circular cross section, which is the most common mechanical design for sealing.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

The valve ball materials are Teflon, Santoprene, EPDM, ect. It has a very low friction coefficient, excellent self-lubrication, good corrosion resistance, dimensional stability, and no deformation.

The LL316 stainless steel pneumatic diaphragm pump offers a wide range of fluids from low to high viscosity and low to high corrosion. The stainless steel LL316 air operated diaphragm pump is suitable for conveying high viscosity honey in medicine and chemical industry and food industry.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

AOE aluminum air driven pump with simple structure, less wearing parts, At the same time, the slurry double diaphragm pump is a kind of corrosion resistant pneumatic diaphragm pump, And it can transport viscosity within the range of 10000 centipoises of liquid.
