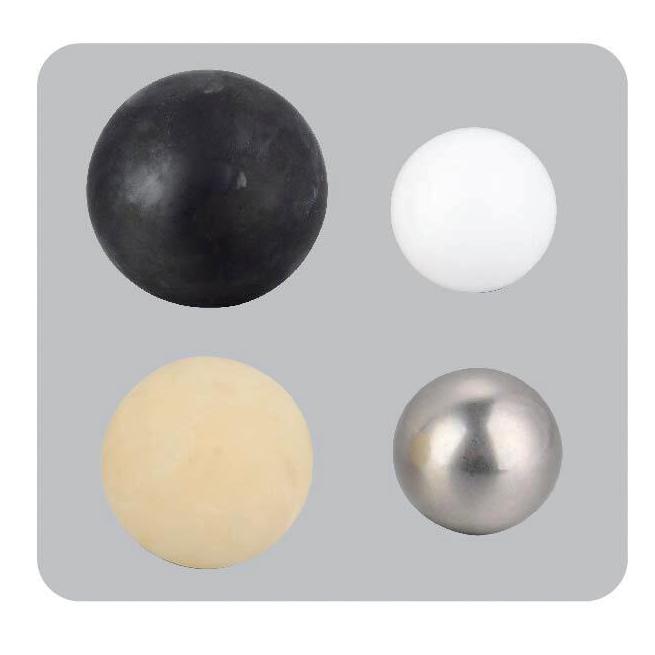

Double Diaphragm Pump Parts Valve Ball

Diaphragm has Teflon (PTFE), Viton, Buna-n, Neoprene, Santoprene, EPDM, etc. materials. That is imported material, the diaphragm stress of air operated diaphragm pump is reduced to the minimum, and the service life is extended.

The pump body installed with muffler, the delivery head and flow can pass the pneumatic valve open to realize the step less adjustment,  Effectively reduce air duct noise.

The valve seat materials are Teflon, Santoprene, Buna-n, etc.

The O-ring is also called the sealing ring, It is a kind of rubber sealing ring with circular cross section, which is the most common mechanical design for sealing.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

Diaphragm Rod (Shaft)  from #321 stainless steel, the connecting rod has good corrosion resistance, abrasion resistance, and self-lubricating performance. Particularly grinded, the surface has lower friction coefficient.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

AOK40 PVDF pneumatic diaphragm pump powered by compressed air, when the 1.5 Inch Compressor Air Diaphragm Pump exhaust is an expansion endothermic process. And the AOK40 PVDF self priming pneumatic duplex diaphragm pump working temperature is reduced, no harmful gas discharge.
