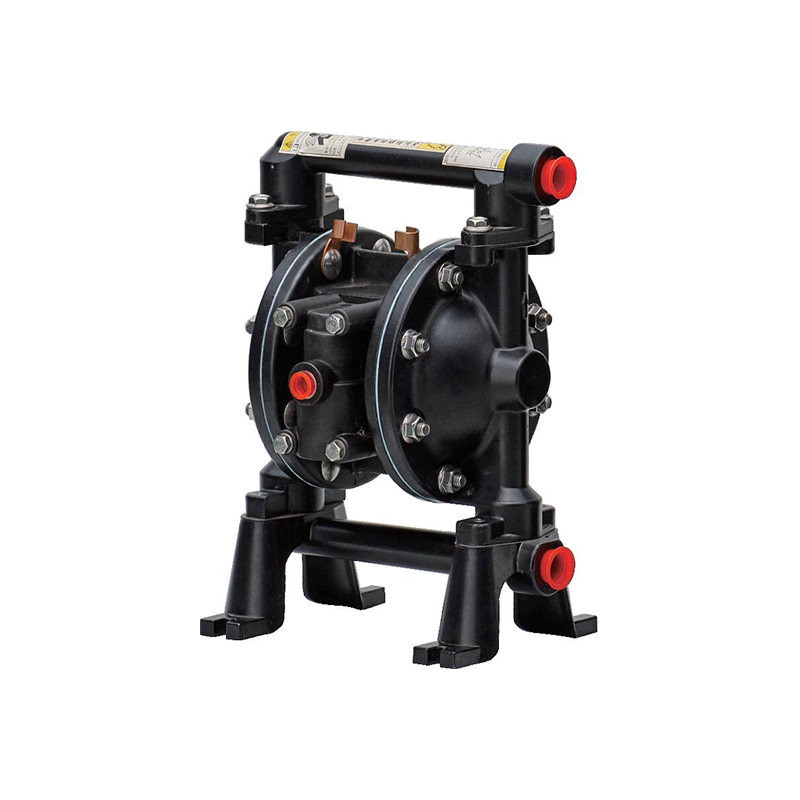

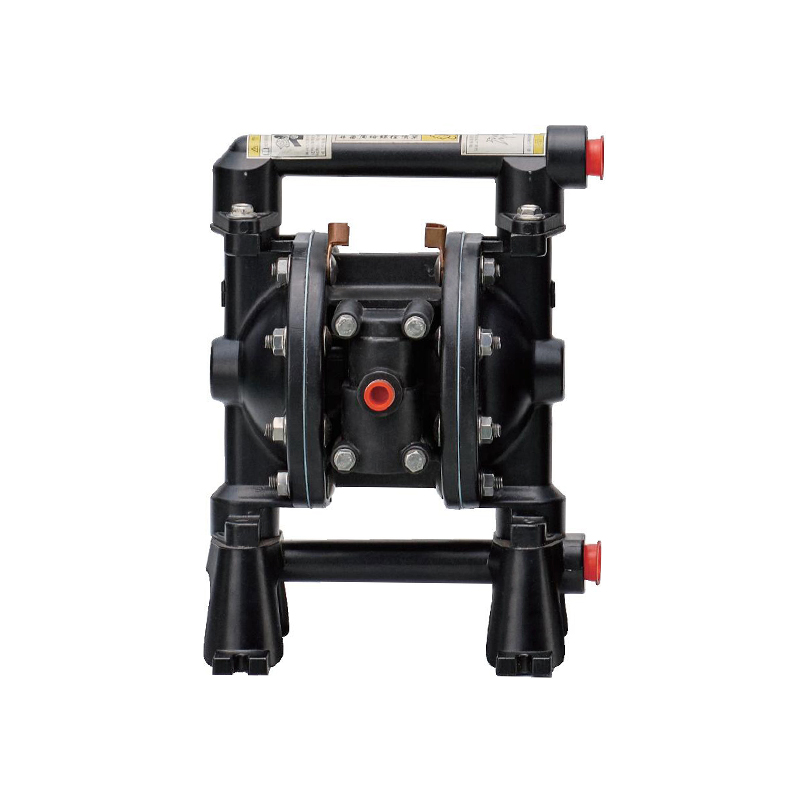

Aluminum Alloy Air Operated Diaphragm Pump AOE050

1/2″ Technical Parameters:

Proportion

1:1

Max flow

49.2 L/Min

Displacement per cycle

0.15 L

Air inlet

1/4-18 N.P.T.F-1

Fluid inlet

1/2-14 N.P.T.F-1

Fluid outlet

1/2-14 N.P.T.F-1

Max service pressure

0.69 Mpa

Max particle diameter

2.4 mm

Weight

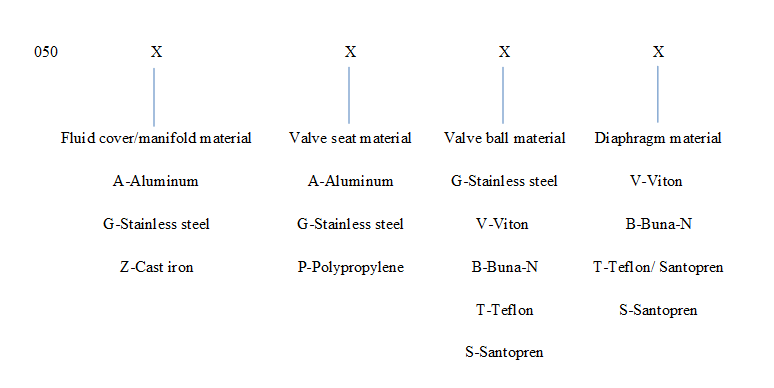

3.8 Kg（050AXXX）

6.6 Kg（050GXXX）

6.2 Kg（050ZXXX）

Maximum dry suction height

2.8 m

Noise level

Mpa

c.p.m

bd(A）

0.5

60

71

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×

B

D

D

C

A

Acetic Acid _ 50%

×

A

C

C

C

A

Ammonium Bicarbonate

B

A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate

A

B

A

A

Aniline Dyes

B

B

C

C

B

A

Barbeque Sauce

A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A

B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A

A

D

A

D

A

Glue

A

A

B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
