AOK Air Operated Diaphragm Pump

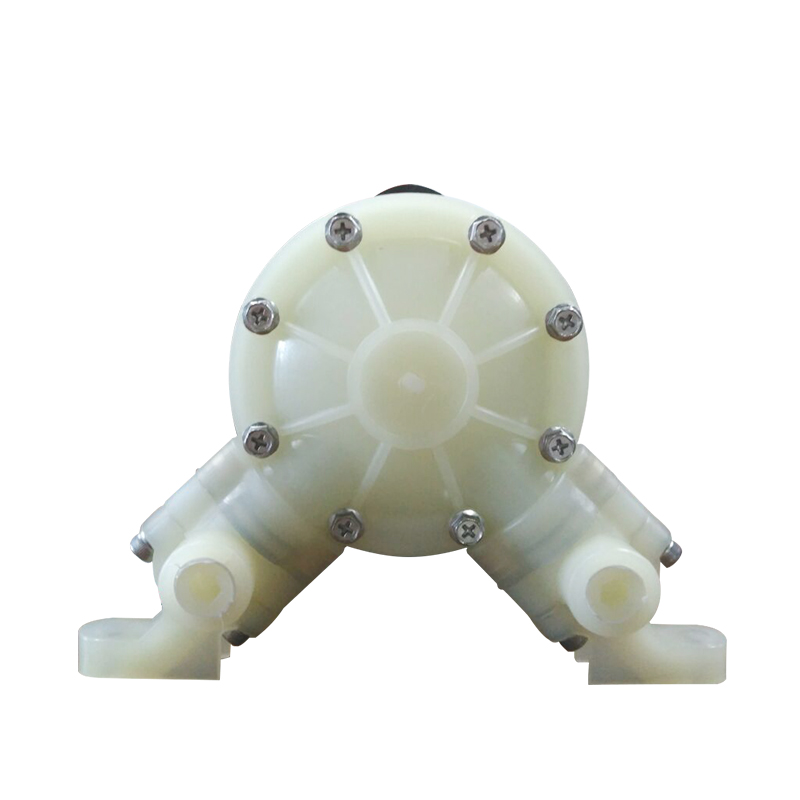

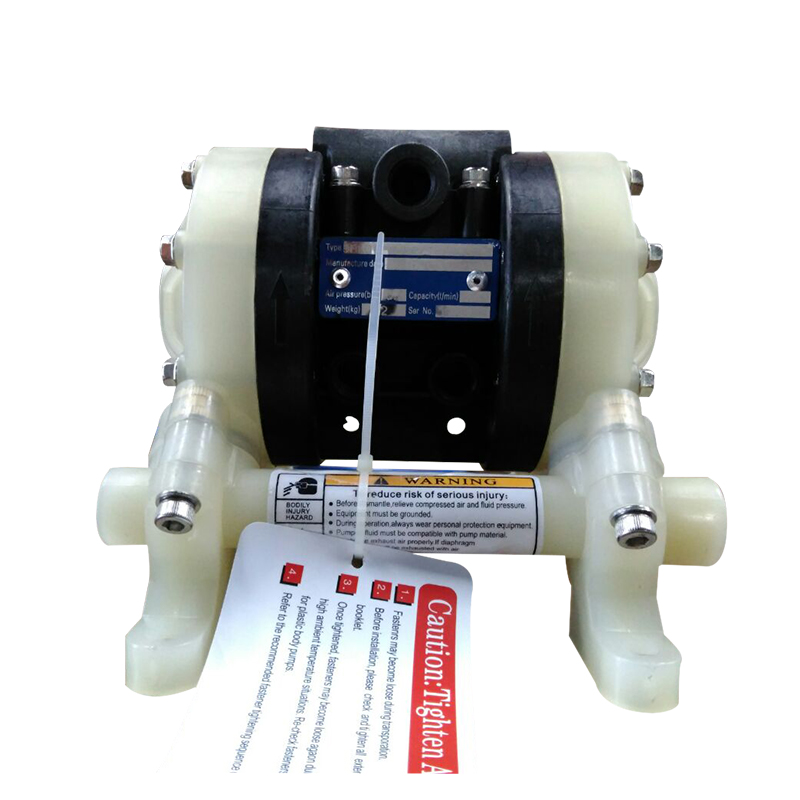

PP Plastic Air Driven Diaphragm Pump AOK06/10 (Old Type)

Mini polypropylene pneumatic pump is a pump which driven by air. The air pump can be widely used in NAOH, sulfuric acid etc. It has the self priming function and can run dry.

AOK06/10-PP (Old Type) product description:

Air Operated Double Diaphragm Pumps(AODD Pump) allow you to pump thick, acid liquids and slurries in applications such as mining, waste water treatment etc. It is relatively easy to set up and relocate for different application uses throughout your plant. They are practically leak-free and can run dry since they do not contain internal seals or components that require lubrication.

AOK06/10 PP (Old Type) Air Pump Parameters:

Model

AOK06/10(Old Type)



Inlet/ Outlet size

mm

6/10

inch

1/4 or 3/8

Flow Rate



m3/h

1.62

L/min

27

Head (m)

70

Suction Stroke (m)

6.4

Max. Particle Diameter (mm)

1.6

Max.Air Pressure (kg/cm²)

7

Max.Air Consumption (m³/min)

0.14

Diaphragm

Teflon,Hytrel, Viton, Santoprene, Banu-N, etc.

Check Valve

PP, PVDF, POM

Center block

PP

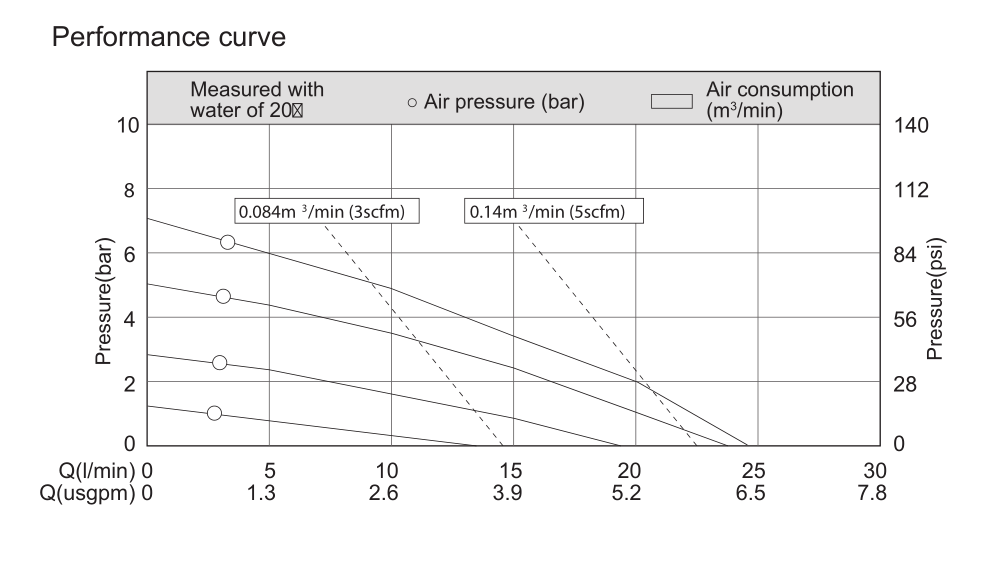

Performance curve:

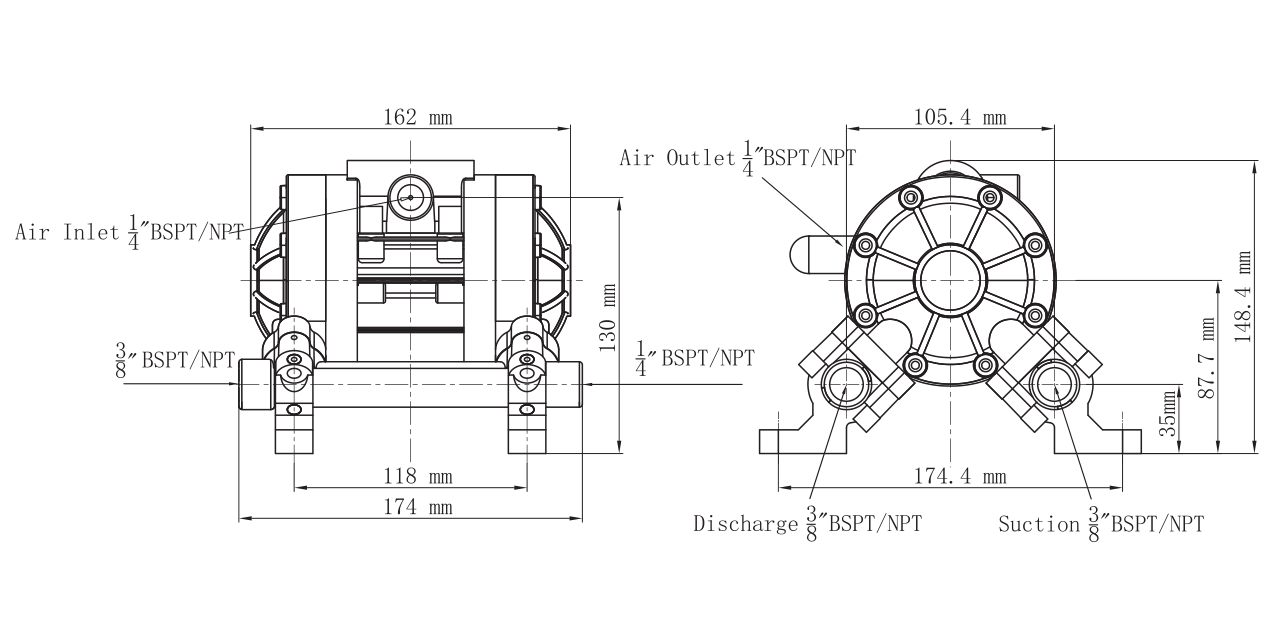

Installation size:

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8

Applications:

1-Chemical industry: solvents, acids, alkalis, paints, coatings, resins, dyes, inks, detergents, adhesives, etc.

2-Petrochemical industry: crude oil, heavy oil, mud, grease, waste oil, sludge, etc.

3- Ceramic industry: glaze, mud, porcelain slurry, lime slurry, clay slurry, etc.

4-Environmental protection industry: sewage treatment, adding chemicals, soft sediments, chemicals, waste products, etc.

5-Paper industry: paste, borax, caustic soda, ink, pigment, hydrogen peroxide, adhesive, etc.

6-Electronics industry: solvents, electroplating solutions, cleaning solutions, nitric acid, waste acids, corrosive acids, polishing solutions.

7- Daily chemical industry: detergent, lotion, cream, hand cream, etc.

8-Furniture industry: adhesives, varnishes, white wood glue, resins, etc.

9-Construction industry: cement slurry, lime slurry, rock slurry, etc.

10-Automotive industry: polishing emulsion, coolant, automobile primer, oil emulsion, varnish, degreasing liquid, paint, etc.

11-Metallurgy, casting and dyeing industry: metal slurry, hydroxide, carbide slurry, dust washing slurry.
