AOK Air Operated Diaphragm Pump

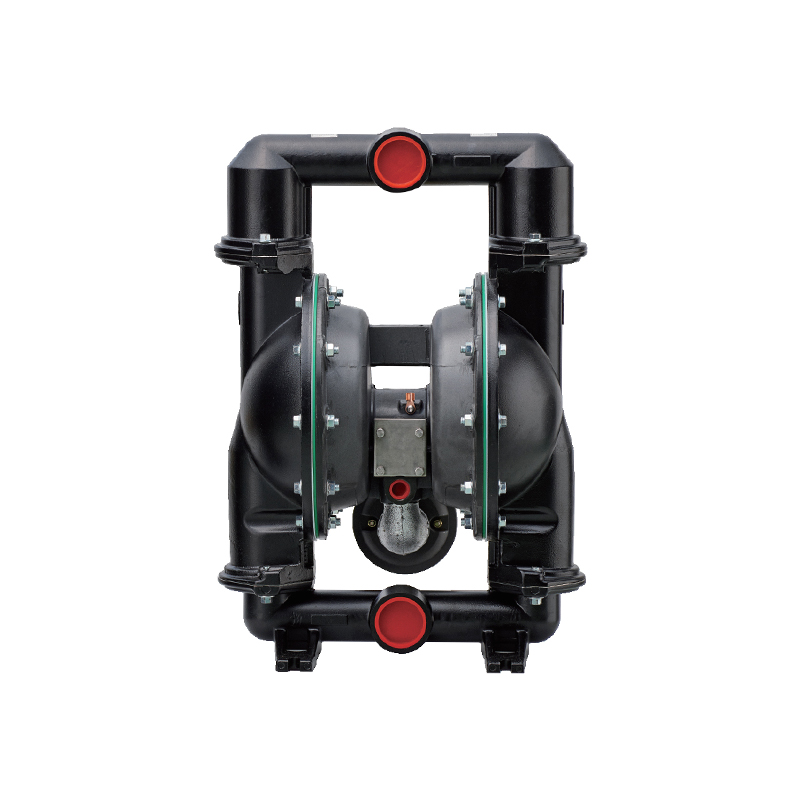

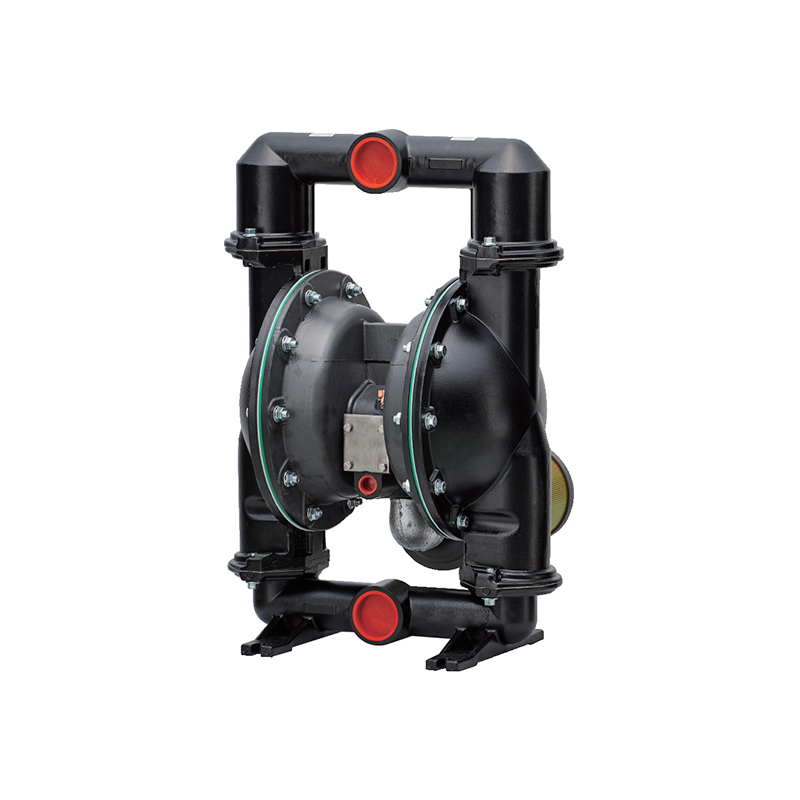

Aluminum Alloy Air Driven Diaphragm Pump AOE200

2 inch AOE high performance air operated diaphragm pump can be used according to different liquid medium different materials, in order to meet the needs of different users.

AOE2



AOE2″-Metal Pump Performance Parameter:

2Technical Parameters:

Proportion

1:1

Max Flow

651L/Min

Displacement per cycle

5.3L

Air inlet

3/4-14 N.P.T.F-1

Fluid inlet

2-11-1/2 N.P.T.F-2 Rp2

Fluid outlet

2-11-1/2 N.P.T.F-2 Rp2

Max service pressure

0.83 Mpa

Max Particle Diameter

6.4mm

Weight

27.8Kg200XAXXXX

55.5Kg200XGXXXX

55.3Kg200XZXXXX

Maximum dry suction height

8.3m

Noise level

Mpa

c.p.m

bd(A

0.5

60

85.3

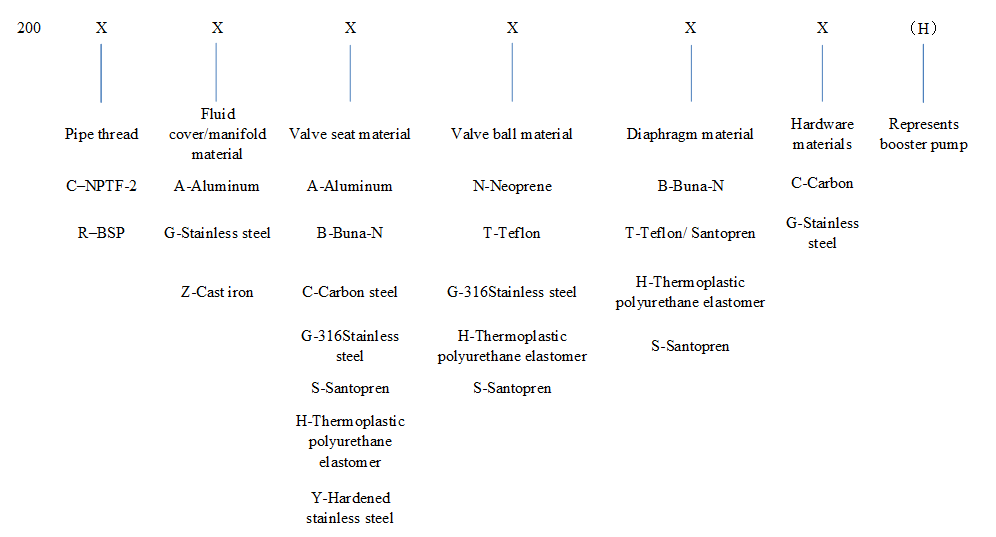

Model specification:

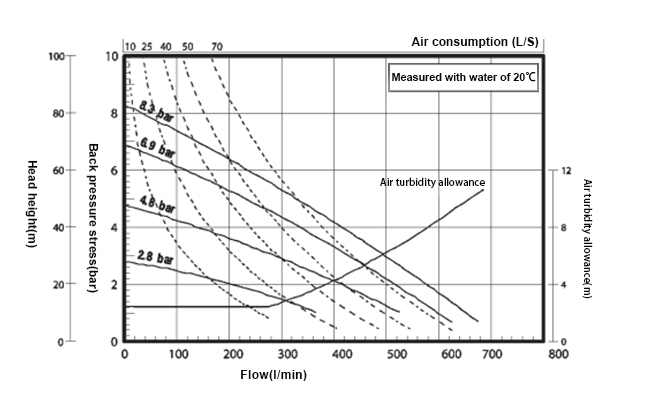

Performance curve:

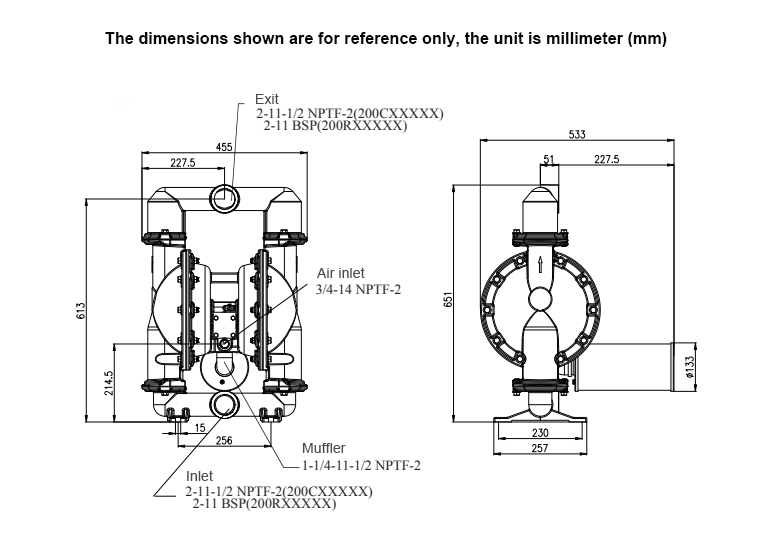

Installation size:

Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
