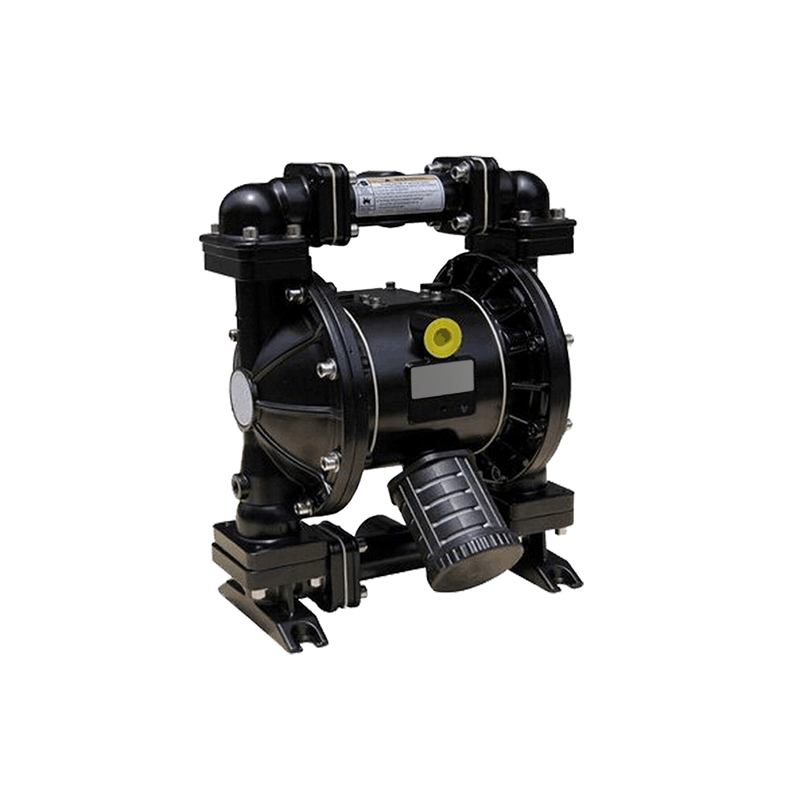

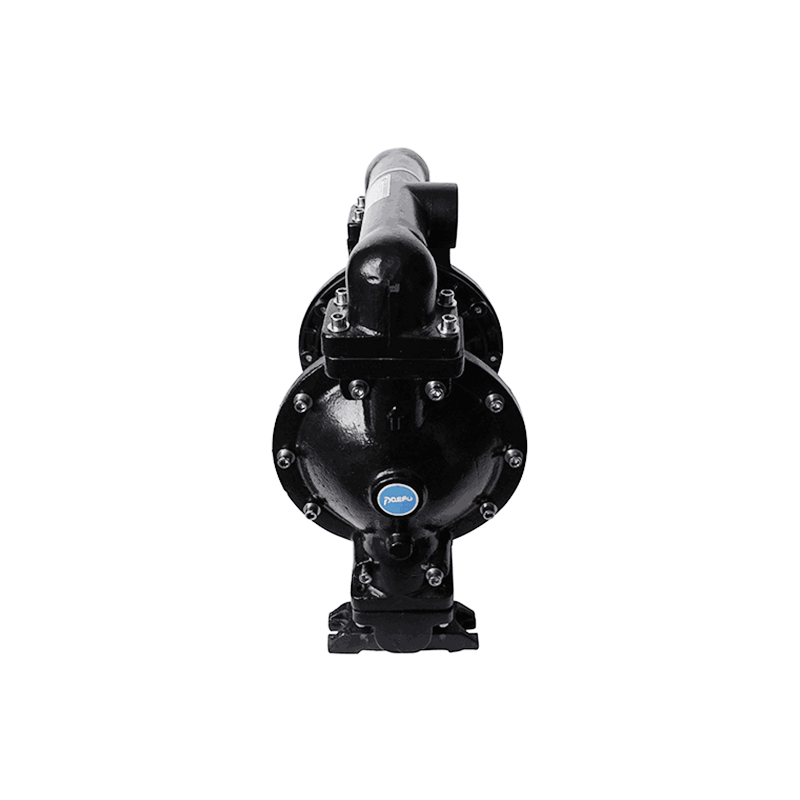

Aluminum Alloy Air Operated Diaphragm Pump AOK25

1 Inch High-efficiency Aluminum alloy Air Diaphragm Diaphragm Water Pump is a new type of pneumatic reciprocating conveying machinery, powered by air, can transport a variety of properties of liquid.

Inquiry now

product introduction

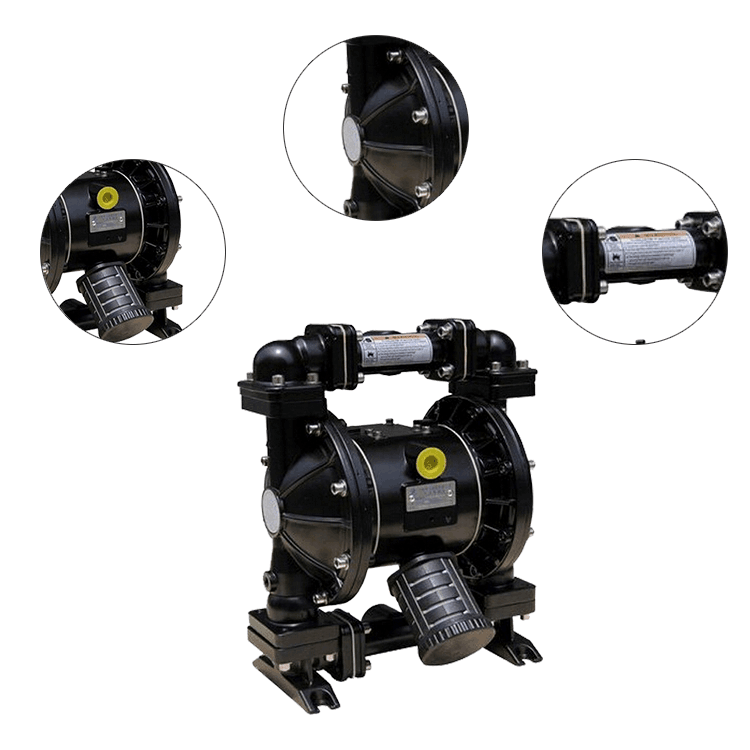

AOK25-AL Product Description：

This air-operated double diaphragm pump is constructed with high-quality aluminum with good abrasion resistance, chemical resistance, and heat resistance. It is perfect for all your needs in every industry.

Technical Parameters：

Model		AOK25-AL
Inlet/ Outlet size	mm	25
	inch	1
Flow Rate	m3/h	9.42
	L/min	157
Head (m)		84
Suction Stroke (m)		8
Max. Particle Diameter (mm)		4
Max.Air Pressure (kg/cm²)		8.4
Max.Air Consumption (m³/min)		1.12
Diaphragm		Teflon, Viton, Santoprene, Banu-N, etc.
Valve ball/seat		Santoprene, Hytrel, Teflon, Viton, Stainless steel, etc.

More Options ( Parameters Table)：

Model	Flow (m³/h)	Head (m)	Suction Stroke(m)	Max.Particle Dia. (mm)	Max. Air Pressure (kg/cm²)	Max.Air Consumption (m³/min)
AOK06/10	0-1.62	0-70	6.4	1.6	7	0.14
AOK-15	0-3.42	0-84	7.6	2.5	8.4	0.56
AOK-25	0-9.42	0-84	8	4	8.4	1.12
AOK-40	0-21.48	0-84	8	5	8.4	2.24
AOK-50	0-35.22	0-84	8	6	8.4	2.8
AOK-80	0-63.6	0-84	8	9.4	8.4	9.8

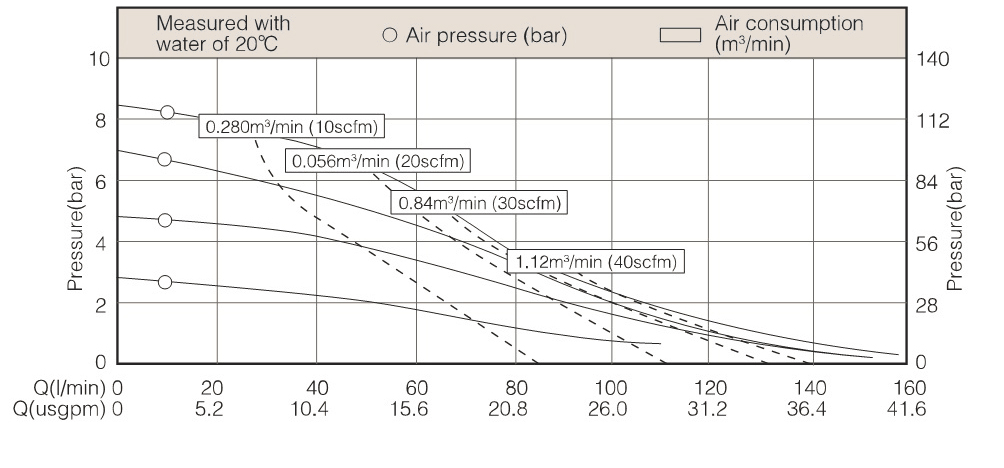

Performance curve：

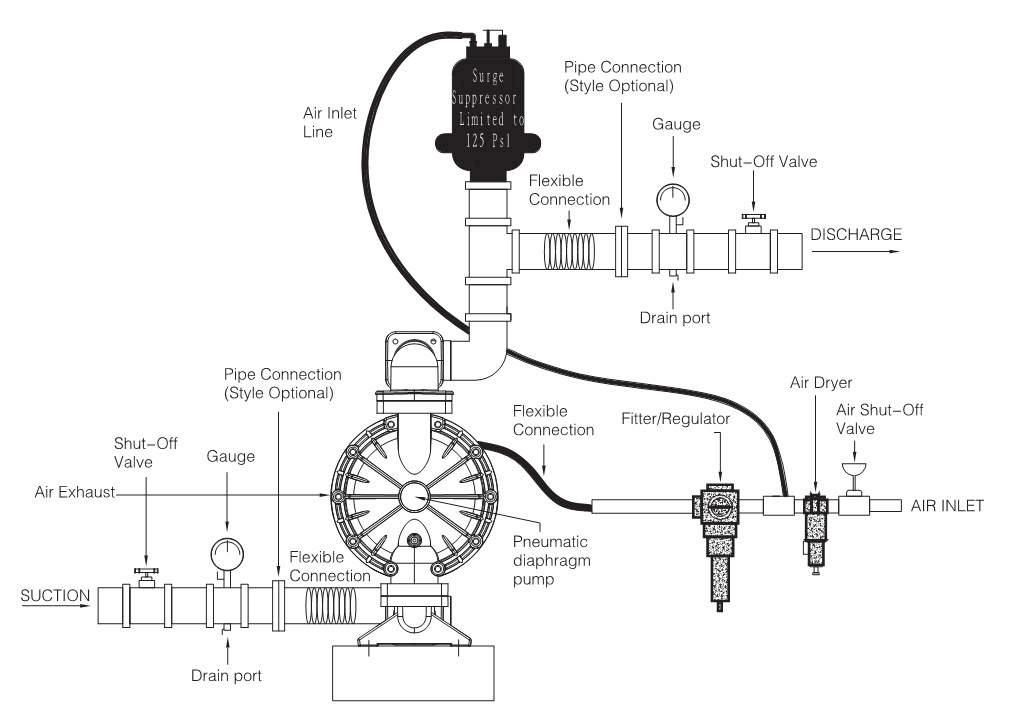

Installation diagram：

Typical Installation Guide

Sectional design Four-bolt Connection：

Product Structure Drawing（Sectional Design Four-Bolt Connection）

Three-stage design, can transport two kinds of media at the same time, and convenient for later flexible installation and maintenance. The four-bolt connection makes for outstanding seal property.

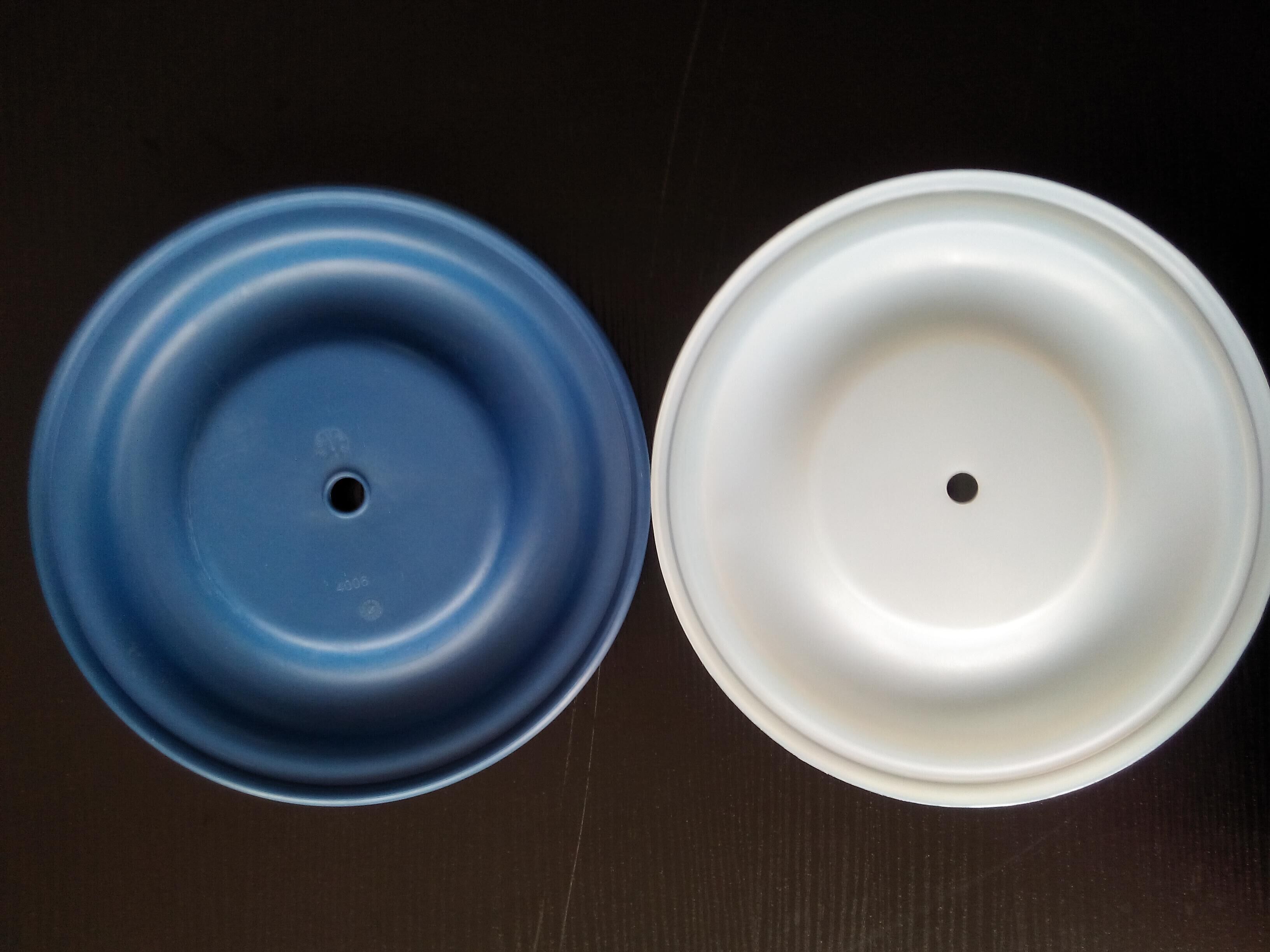

Diaphragm

Diaphragm Valve Ball

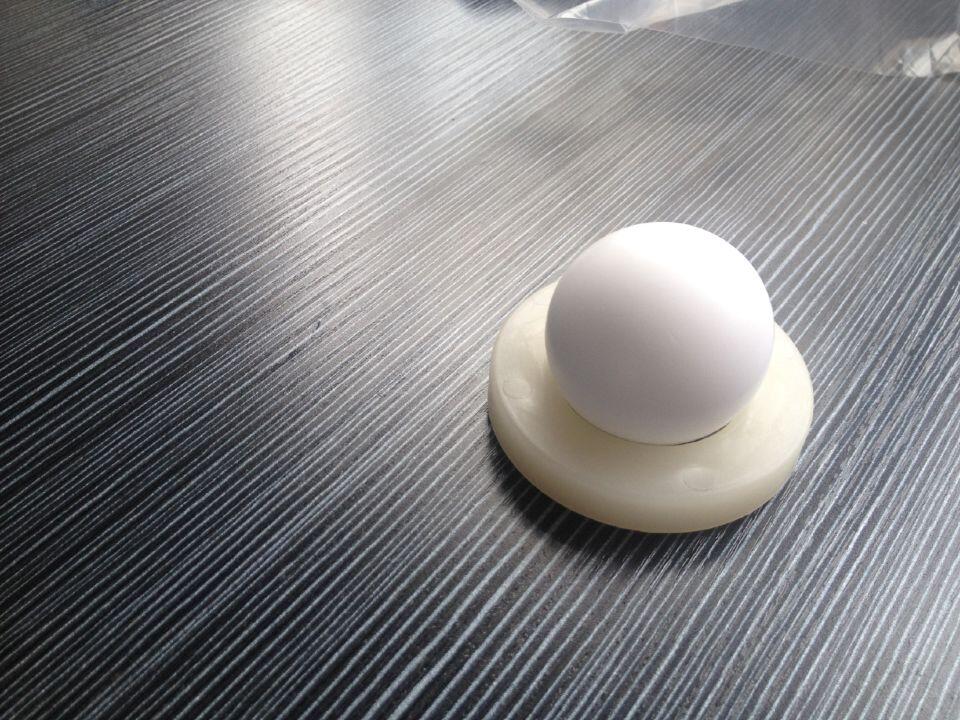

Valve Ball And Valve Seat The valve ball for the air operated diaphragm pump is further processed with special machine for high precision and excellent leakproofness.

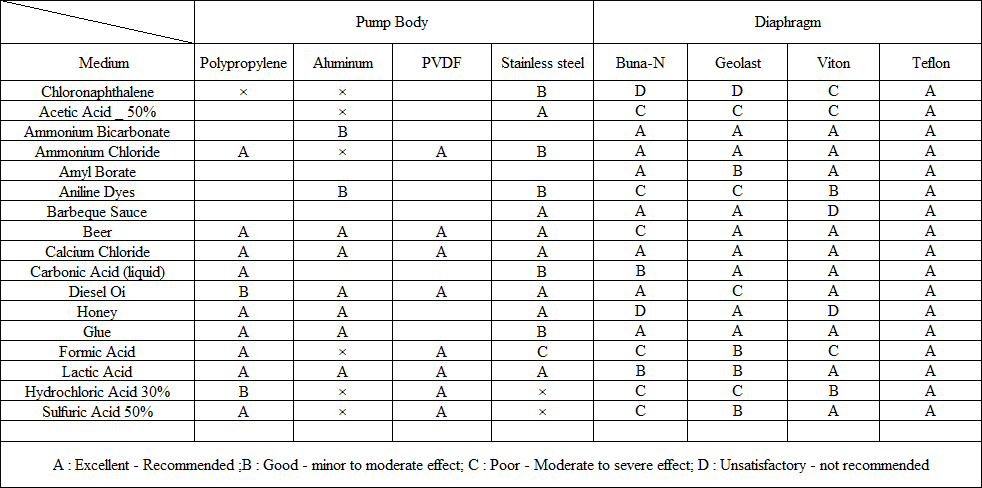

Chemical corrosion comparison table：

Chemical Corrosion Comparison Table

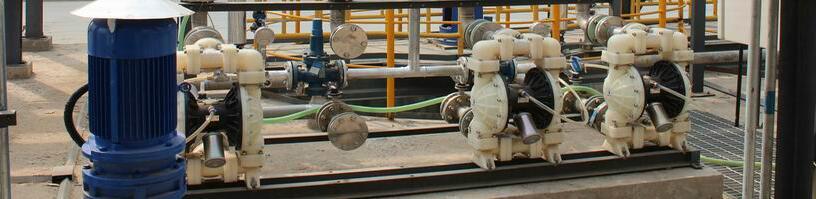

Wide Application：

It can be widely used in the mining industry, pharmaceutical industry, construction industry, petrochemical industry, water treatment, etc.

Applications

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related products

Aluminum Alloy Booster Air Pump

AOE aluminum air driven pump with simple structure, less wearing parts, At the same time, the slurry double diaphragm pump is a kind of corrosion resistant pneumatic diaphragm pump, And it can transport viscosity within the range of 10000 centipoises of liquid.

Aluminum Alloy Air Operated Diaphragm Pump AOK06/10

1/4 Inch Portable Mini Air Operated Double Diaphragm Pump does not need to divert water, both can pump flowing liquid, and can transport some not easy to flow medium.

PVDF Air Operated Diaphragm Pump AOK80

AOK80 PVDF self priming pneumatic duplex diaphragm pump can always remain efficient, not because of wear and tear and reduce efficiency. AOK80 PVDF air diaphragm pump can make 100% of the energy utilization, When the pneumatic diaphragm pump outlet is closed, the 3 inch PVDF air operated duplex diaphragm chemical pump will automatically stop. There is no equipment movement, wear, overload, heating phenomenon.

1.5 Inch Stainless Steel Pneumatic Diaphragm Pump

Stainless Steel LL316 Air Operated Diaphragm Pump AOK40

316 food grade sanitary pneumatic diaphragm pump is a kind of excellent performance, has more corrosion resistance, more wear resistance, more high temperature resistance and other high-quality pneumatic diaphragm pump. For example, our sanitary pneumatic diaphragm pump can be used in the daily chemical industry.

AOK50 Flap valve Air Operated Diaphragm Pump

AOK50 Flap Valve Aluminum Alloy Air Operated Diaphragm Pump

AOK50 high flow flap valve Air Operated Diaphragm Pump liquid flow is spacious and good through performance, It is a Large particle passing capacity diaphragm pump, It has a strong capacity for the passage of large solid particles. allowing passage of solid particles with a maximum particle diameter of 40 mm. This aluminum alloy flap valve air operated diaphragm pump is very popular in chemical industry.

Air Pump Parts Diaphragm Rod (Shaft)

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

Air Operated Diaphragm Pump Valve Ball

The valve ball materials are Teflon, Santoprene, EPDM, ect. It has a very low friction coefficient, excellent self-lubrication, good corrosion resistance, dimensional stability, and no deformation. valve seat: The valve seat materials are Teflon, Santoprene, Buna-n, ect.

Removable Muffler

The pump body installed with muffler, the delivery head and flow can pass the pneumatic valve open to realize the step less adjustment, Effectively reduce air duct noise.
