AOK Air Operated Diaphragm Pump

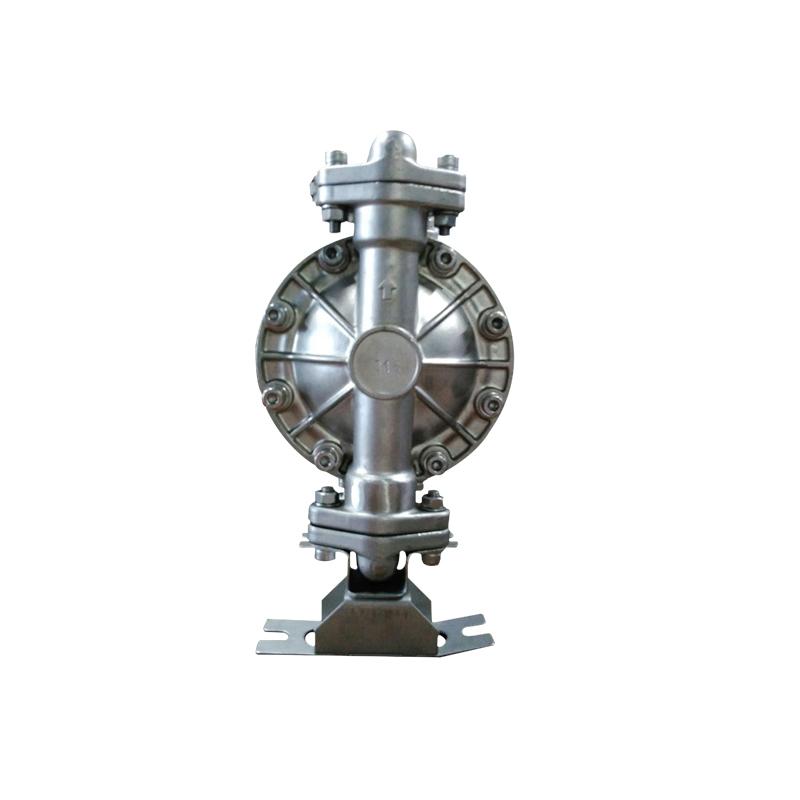

Stainless Steel SS304 Air Operated Diaphragm Pump AOK15

Small size self priming SS304 stainless steel pneumatic diaphragm pump low density, high strength, good plasticity. It can be used for transporting chemically unstable fluids.

AOK15-SS304 Product Description

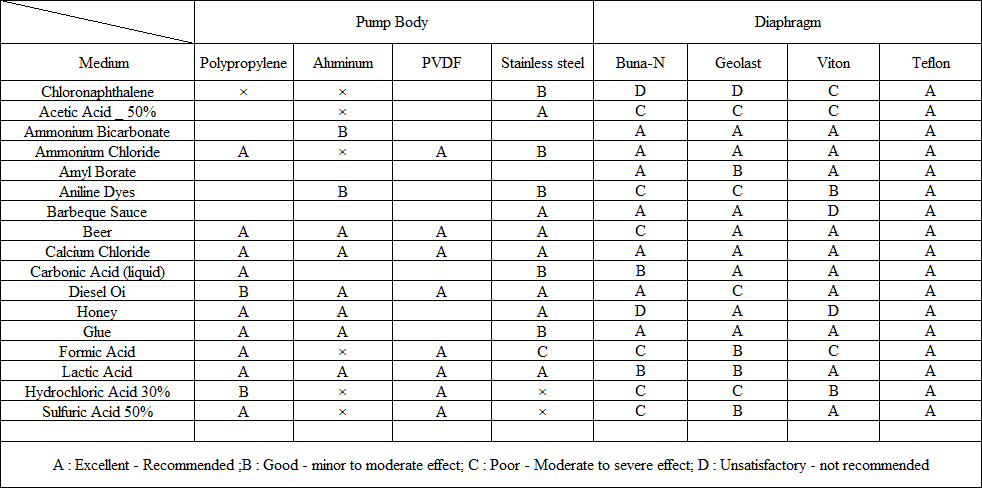

AOK15-SS304 stainless steel pneumatic diaphragm pump has a variety of pump body materials and diaphragm materials to choose from, suitable for various liquid media. It has very good stability and safety both in processing and in use.

AODD Pump Key Features:

·Run Dry

·Self Priming Function

·High Pressure to 8.4bar

·Temperature to 176℃

Usages of Air Diaphragm Pump:

Food industry: yeast, dough, fruit filling, icing, various jams, mayonnaise, mashed potatoes, starch, vegetable soup, soy sauce or other condiments, chocolate, cream, sponge cake, fillings, grease, butter, etc.

Cosmetics industry: all kinds of perfumes, creams, shower gels, gels, shampoos, lotions, toothpastes, etc.

Liquor industry: white wine, red wine, foreign wine, health wine, rice wine, beer, wine, rice wine, medicinal wine, hops.

Beverage industry: gas-liquid mixing, wine, juice, jam, corn syrup, milk, soda, Coca-Cola, popsicles, ice cream, ice cream, beer, wort, syrup, chocolate, cocoa butter, gelatin, etc.

Drugs: various medicinal liquids, blood products, biological products, sugar coatings, various ointments, glucose, oral liquids, plant extracts, ointments, alcohol, filtration aids, ultrafiltration, plasma, waste solvents.

Hot Stainless Steel 316 AODD Pump AOK15:

Model

AOK15



Inlet/ Outlet size

mm

15

inch

1/2

Flow Rate



m3/h

3.42

L/min

57

Head (m)

84

Max. Suction Lift (m)

7.6m (wet) ;4m(dry)

Max. Particle Diameter (mm)

2.5

Max. Air Pressure (kg/cm²)

8.4

Max. Air Consumption (m³/min)

0.56

Diaphragm Material

Teflon, Santoprene, Viton, Buna-N etc

Performance curve:

Installation size:

Pump Spare Parts:

Diaphragm

Valve ball and valve seat

Diaphragm rod (shaft)

 Typical Installation Guide

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
