AOK Air Operated Diaphragm Pump

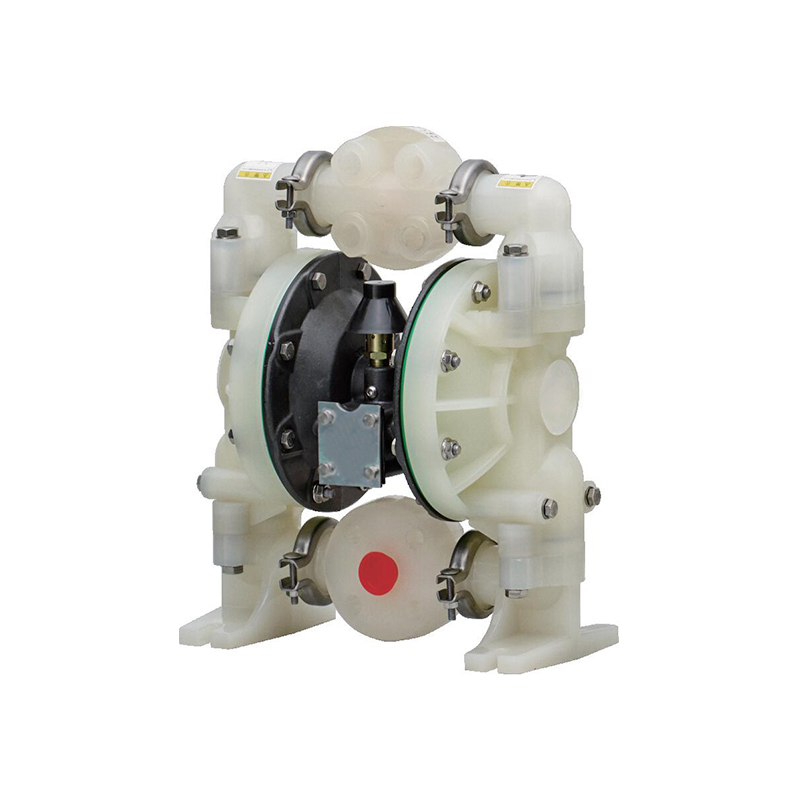

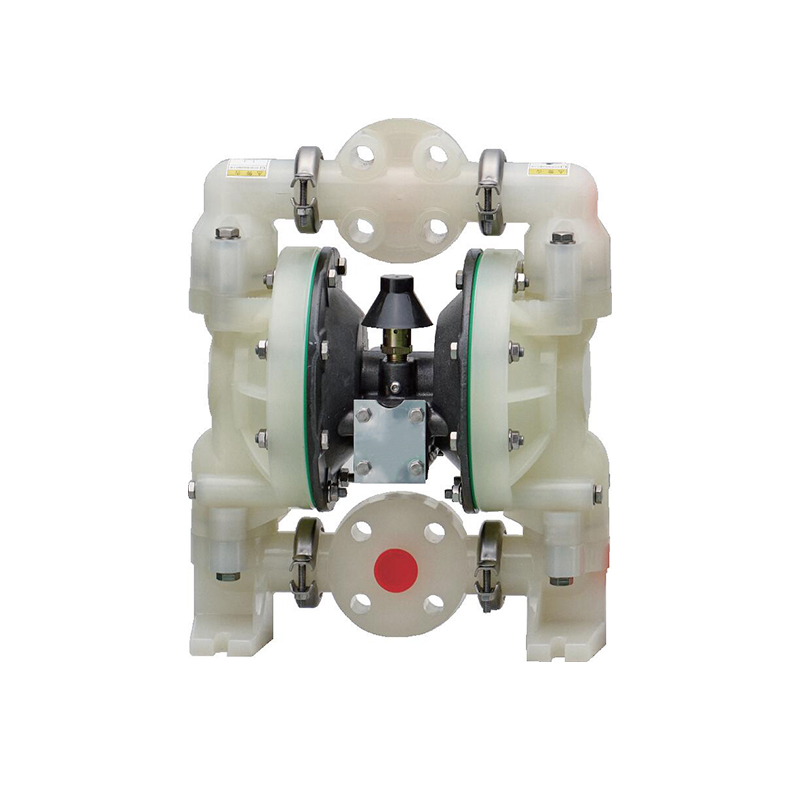

Plastic Polypropylene Air Powered Diaphragm Pump AOE100

AOE100 air operated double diaphragm pump with sectional type structure, this self -priming pump can be used for conveying two different liquid by double diaphragm.

AOE1


AOE1″-Plastic Pump Performance Parameter:

1Technical Parameters:

Proportion

1:1

Max Flow

177.9 L/Min

Displacement per cycle

0.64 L

Air inlet

1/4-18 N.P.T

Fluid inlet

1-11-1/2 N.P.T.F-1 Rp1

Fluid outlet

1-11-1/2 N.P.T.F-1 Rp1

Max service pressure

0.83 Mpa

Max Particle Diameter

3.2 mm

Weight

8.1Kg100PXXX-S

8.9Kg100TXXX-S

8.5Kg100DXXX-S

Maximum dry suction height

4.6m

Noise level

Mpa

c.p.m

bd(A

0.5

60

75

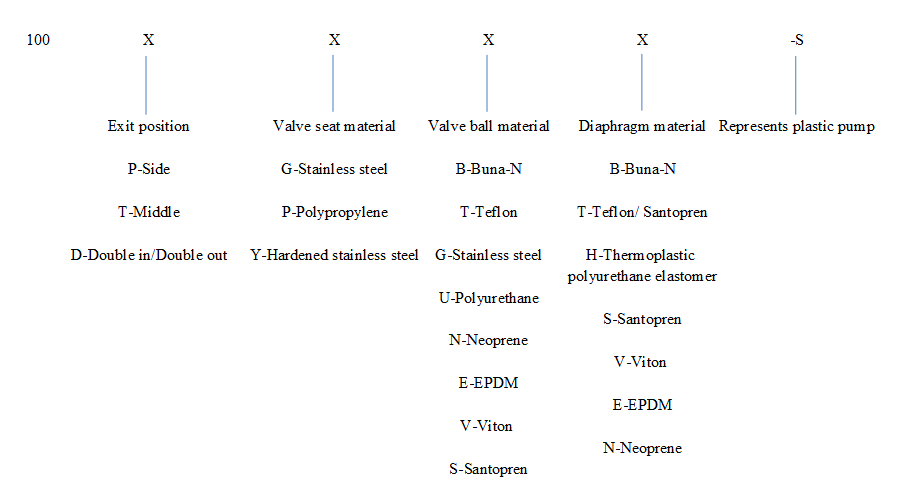

Model specification

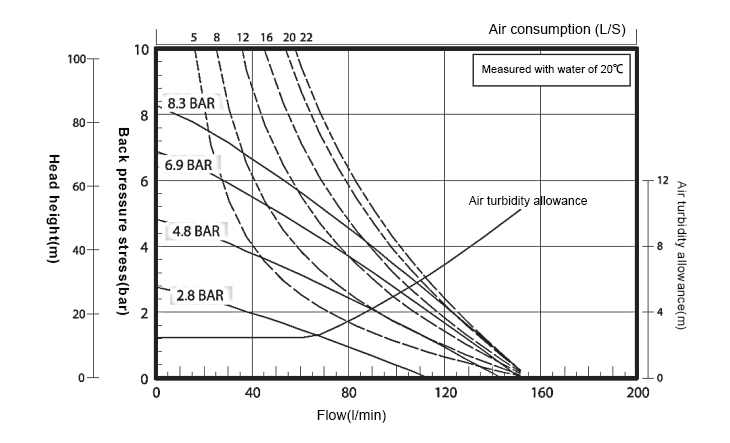

Performance curve:

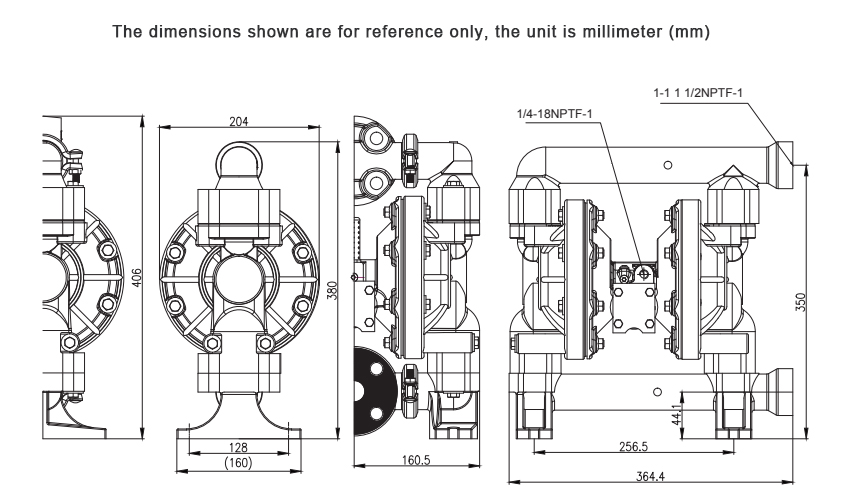

Installation size:


Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
