AOK Air Operated Diaphragm Pump

PVDF Air Operated Diaphragm Pump AOK15

PVDF 1/2 inch plastic pneumatic diaphragm pump is a AOK15 PVDF pneumatic diaphragm pump with excellent characteristics. The PVDF pneumatic diaphragm pump not only has good chemical corrosion resistance, The PVDF mini air pump for chemical liquid also has high temperature resistance, oxidation resistance, weather resistance and other characteristics.

AOK15-PVDF Product Description


PVDF pneumatic diaphragm pump is suitable for transporting strong acid and strong alkaline liquids with high requirements. PVDF pneumatic diaphragm pump has good chemical stability, excellent chemical resistance and good heat stability. It is the material of choice for diaphragm pumps in some chemical industry, bio-pharmaceutical industry, sewage pharmaceutical production and other industries.

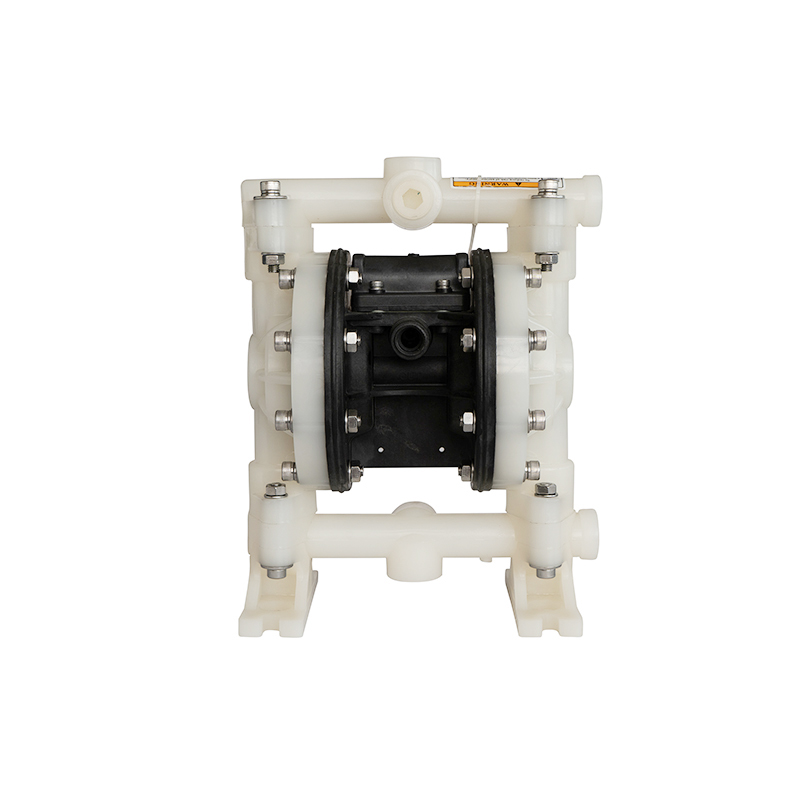

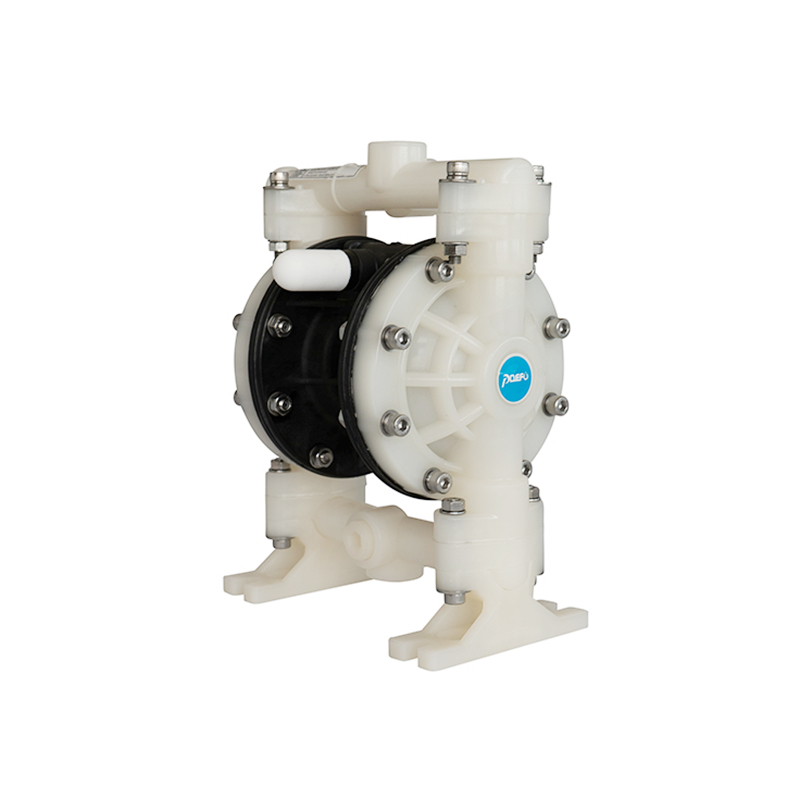

AOK15 Product Picture AOK15 Product Picture

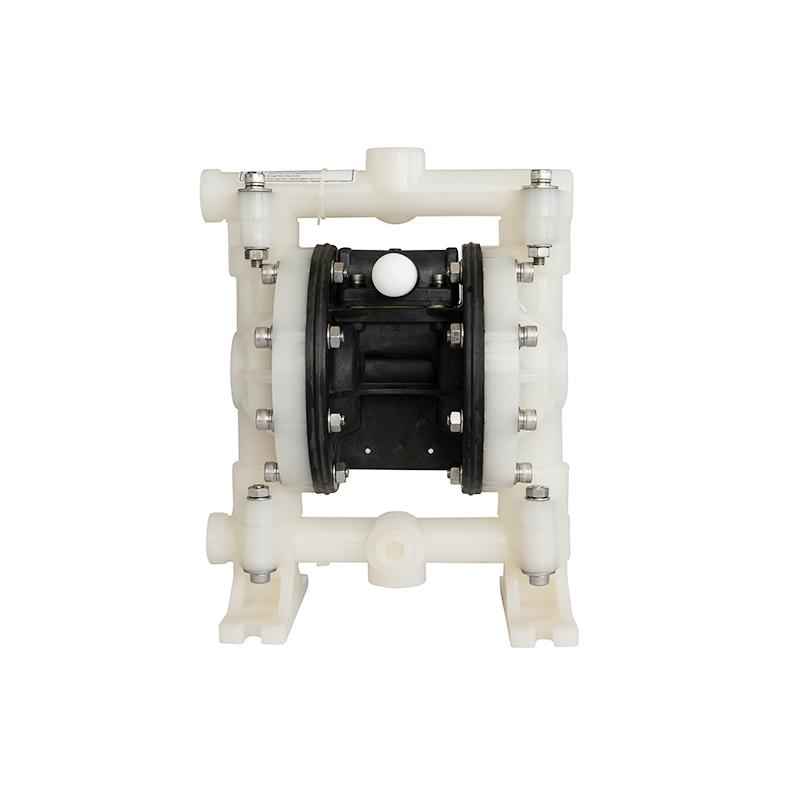

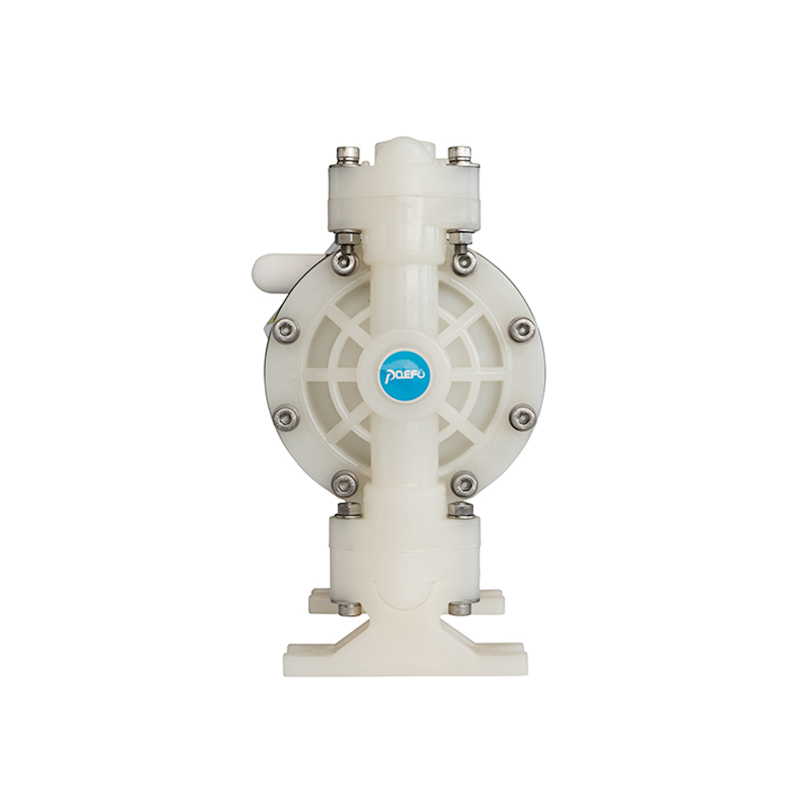

AOK15 Product Picture AOK15 Product Picture

PVDF Air Operated Diaphragm Pump Features:

1- Wear resistance, high mechanical strength and toughness.

2- Good heat resistance and high dielectric strength.

3- Small size, light weight, easy to move and carry.

4- Can run empty, no danger.

5- It has good chemical stability, excellent chemical resistance, and good heat stability.

6- No complicated control system, no cables, fuses, etc.

7- The flow can be adjusted, and a throttle valve can be installed at the material outlet to adjust the flow.

8- Explosion-proof, pneumatic diaphragm pump does not use electricity as power, after grounding will not produce electric spark.

Application:

1- The pump can deliver peanut butter, mashed tomatoes, mashed potatoes, jam, chocolate, as well as syrup and molasses, etc.

2- oil paint, gum, pigment, coating, Various adhesives and glues, etc.

3- various kind of glaze slip for tile, porcelain, brick and pottery.

4- Various emulsions and stuffing.

5- Various highly toxic, flammable and volatile liquids.

6- Various highly acidic, basic and corrosive medium.

7- The transportation of high temperature liquid, The maximum liquid temperature can be 150℃.

8- AOK air operated diaphragm pump can be matched with plate-and-frame filter press for sewage treatment.

HOT PVDF AODD Pump AOK15:

Model

AOK15



Inlet/ Outlet size

mm

15

inch

1/2

Flow Rate



m3/h

3.42

L/min

57

Head (m)

84

Max. Suction Lift (m)

7.6m (wet) ;4m(dry)

Max. Particle Diameter (mm)

2.5

Max. Air Pressure (kg/cm²)

8.4

Max. Air Consumption (m³/min)

0.56

Diaphragm Material

Teflon, Santoprene, Viton, Buna-N etc

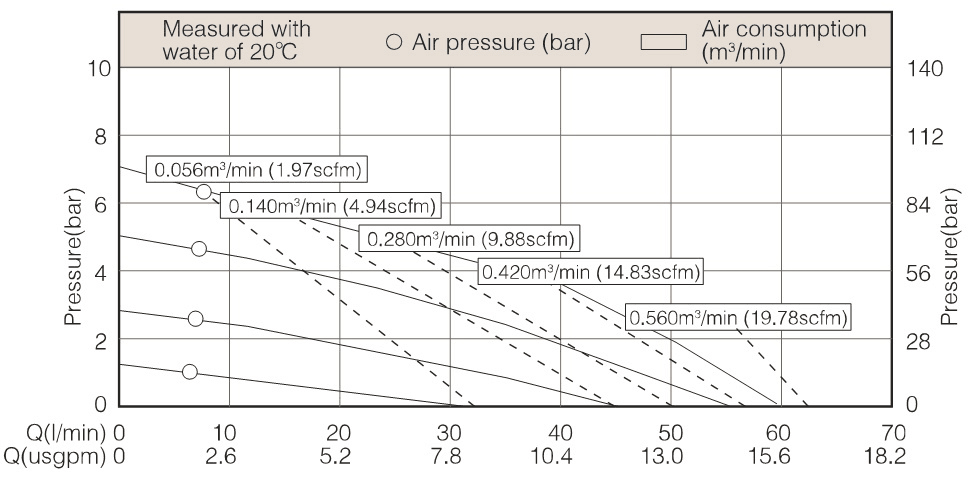

Performance curve:

Performance Curve

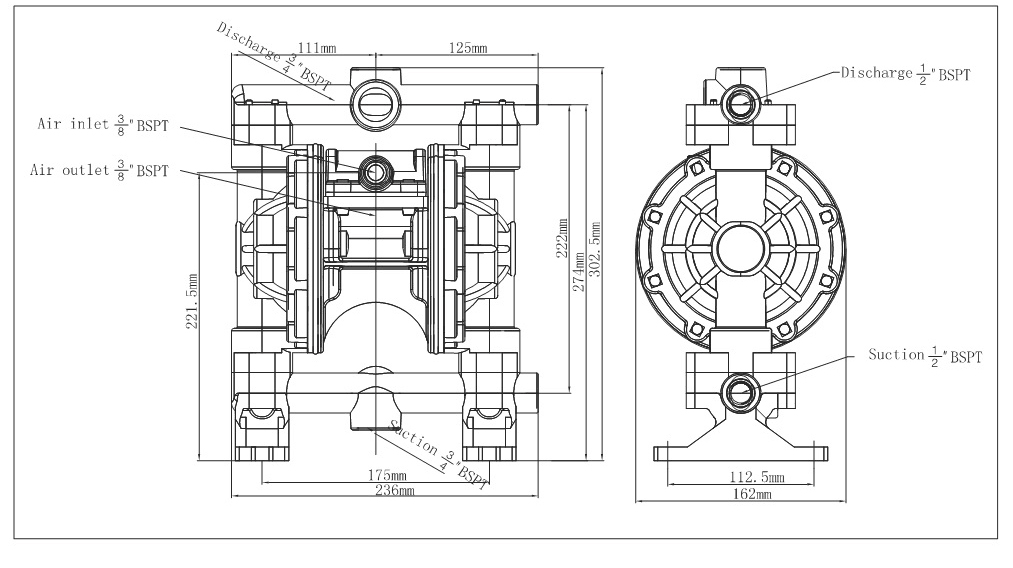

Installation size:

Installation Size

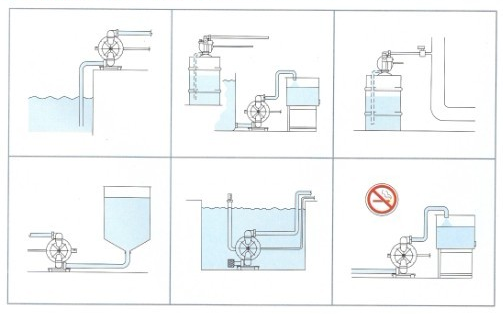

Installation Guide:

Installation Guide

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
