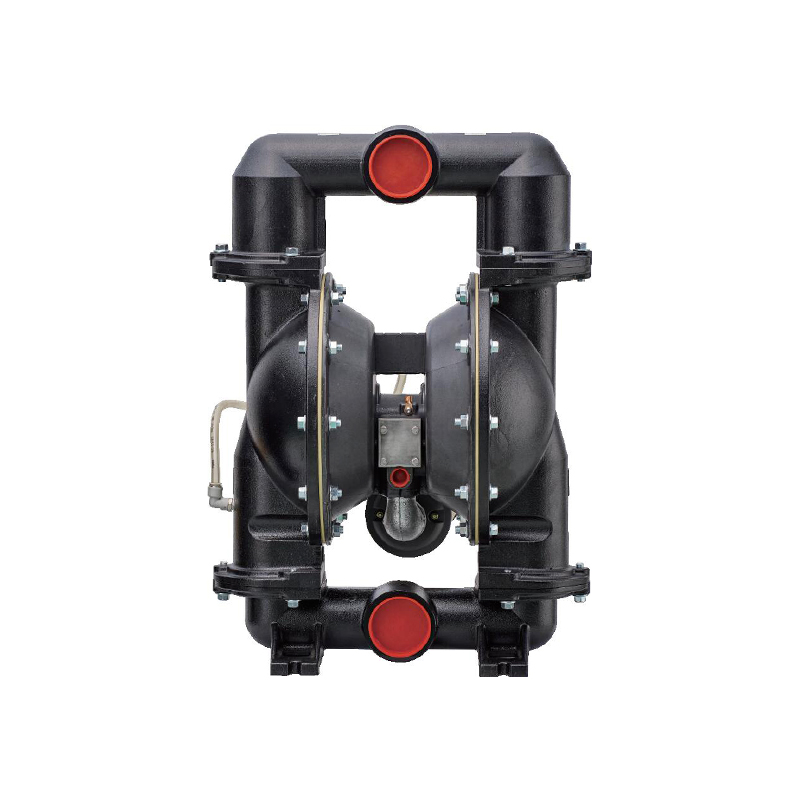

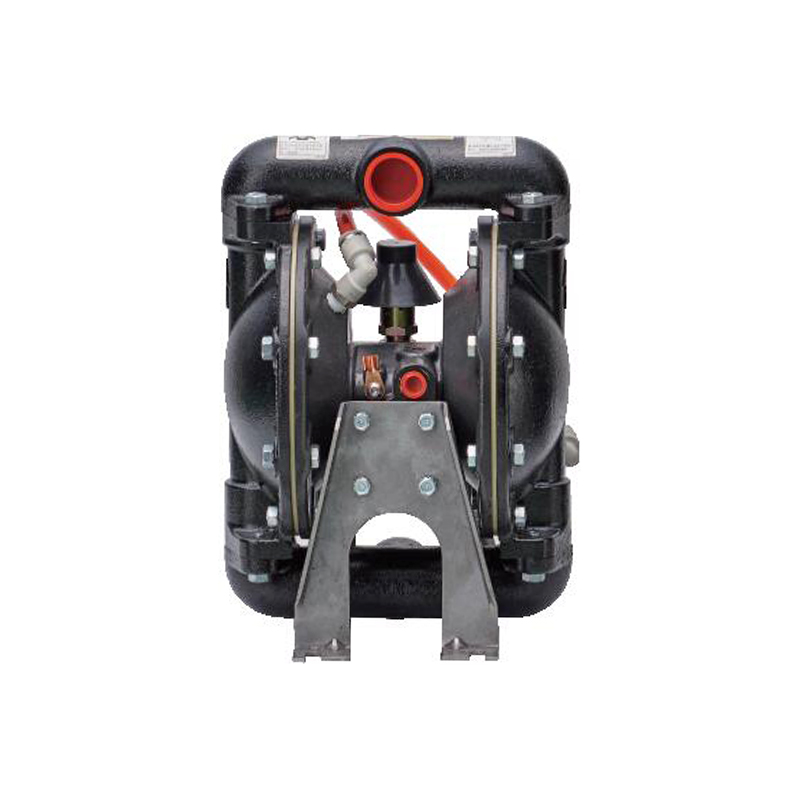

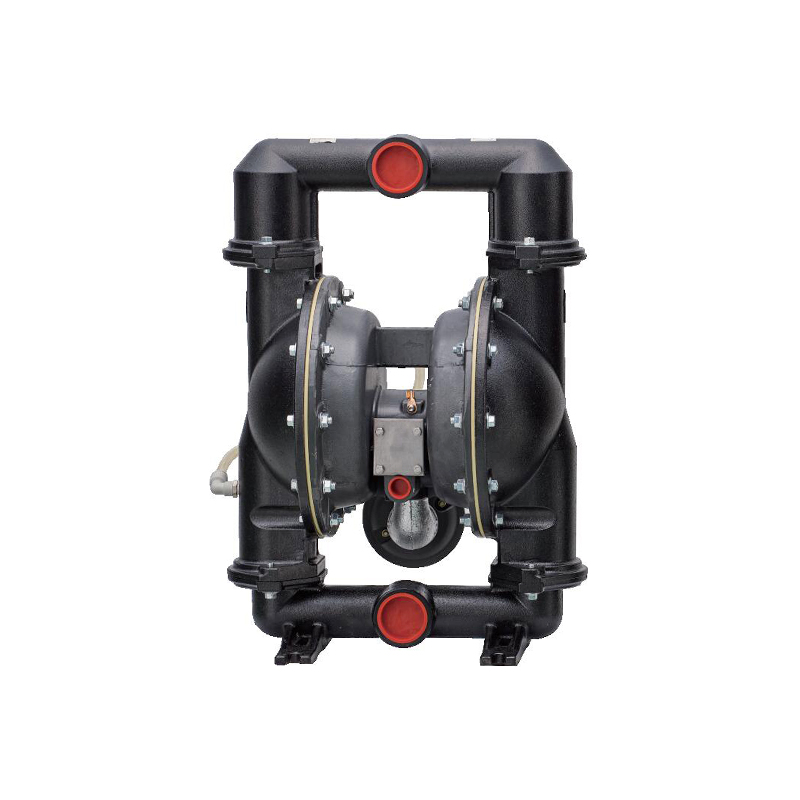

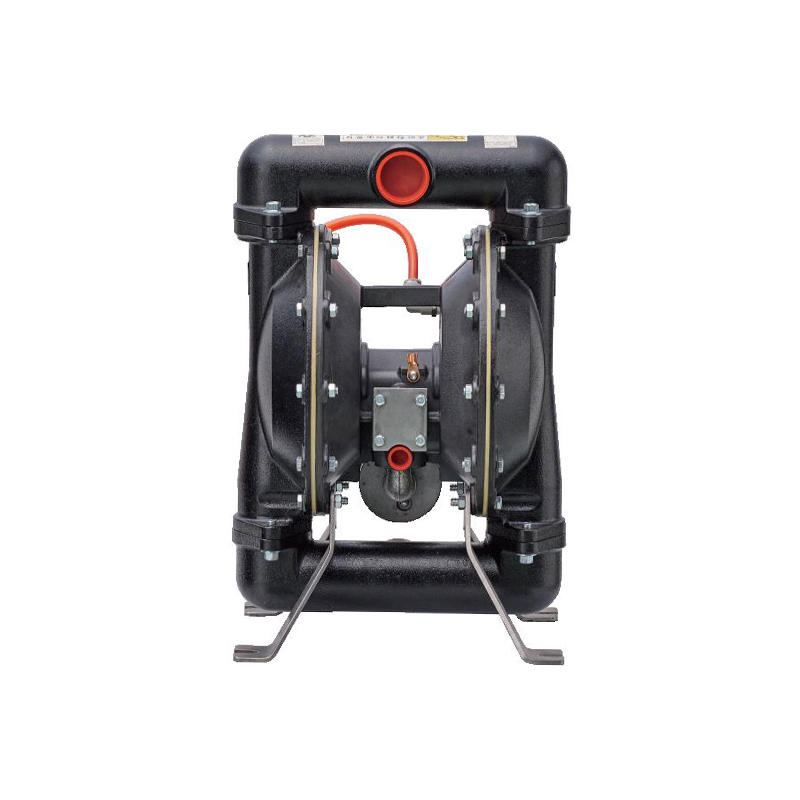

AOK Air Operated Diaphragm Pump

Aluminum Alloy Booster Air Pump

AOE aluminum air driven pump with simple structure, less wearing parts, At the same time, the slurry double diaphragm pump is a kind of corrosion resistant pneumatic diaphragm pump, And it can transport viscosity within the range of 10000 centipoises of liquid.

Booster pump series





Model

1″

1 1/2″

2″

3

Max flowL/Min

80

160

333

433

Max service pressure

(Mpa)

0.6

0.6

0.6

0.6

Fluid inlet and outlet dimensionsinch

1″

1.5″

2″

3

Motor body material

Aluminum

Aluminum

Aluminum

Aluminum

Manifold fluid cover material

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Weight (Kg)

7.9100XAXXXXH

13100XGXXXXH

13100XZXXXXH

19.8150XAXXXXH

30.3150XGXXXXH

33.2150XZXXXXH

27.8200XAXXXXH

55.5200XGXXXXH

55.3200XZXXXXH

45300XAXXXXH

86.4300XGXXXXH

92.7300XZXXXXH

Max Particle Diameter (mm)

3.2

6.4

6.4

9.5
