AOK Air Operated Diaphragm Pump

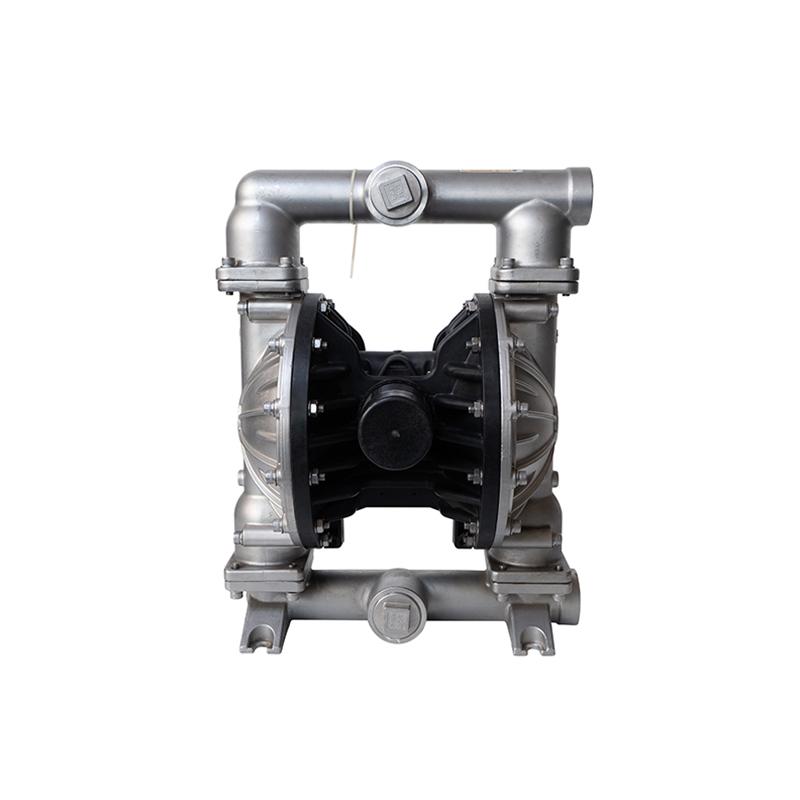

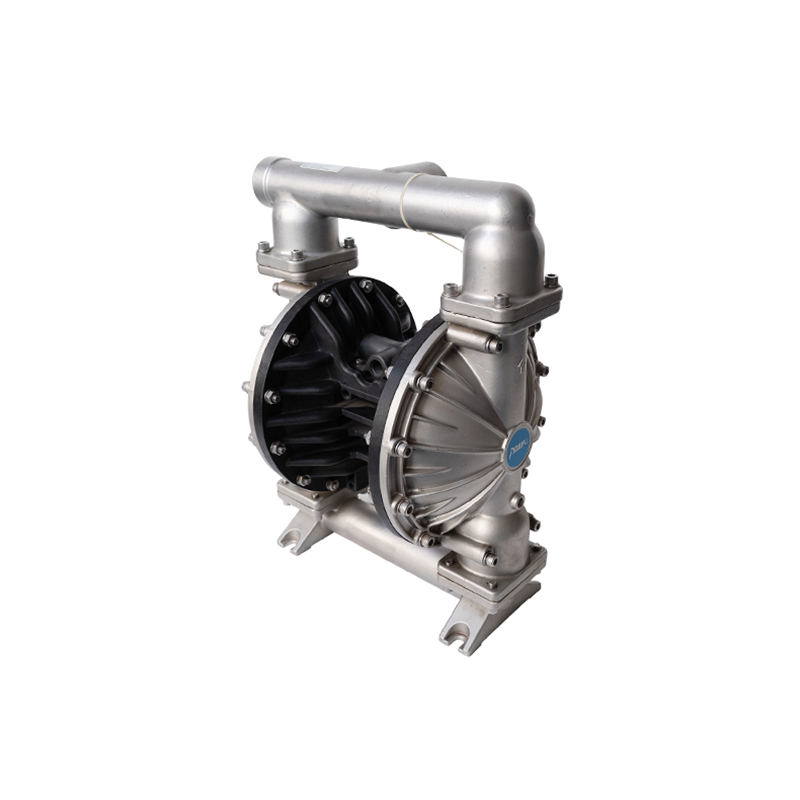

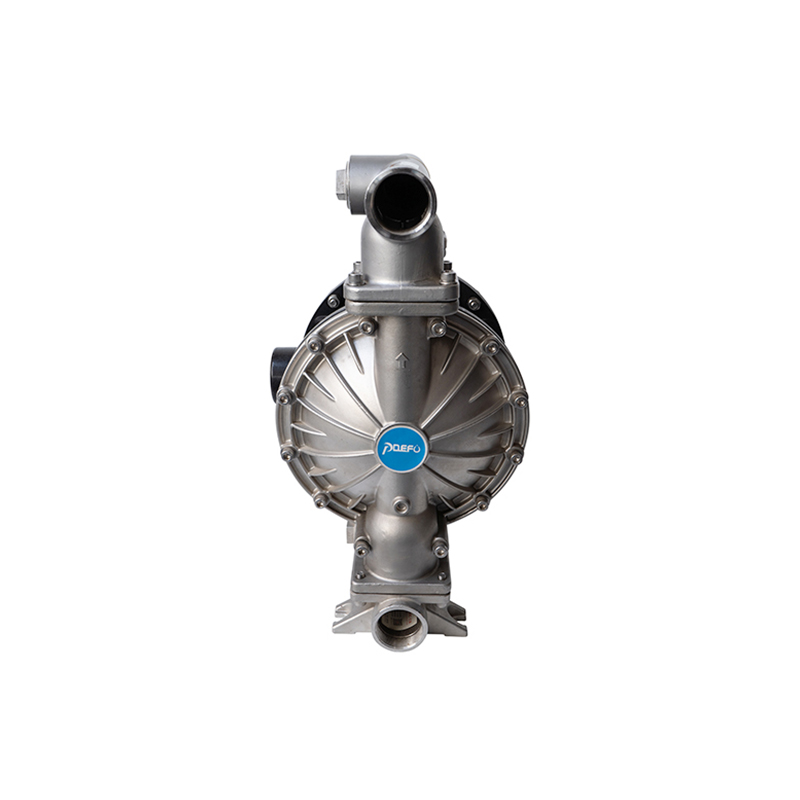

Stainless Steel LL316 Air Operated Diaphragm Pump AOK25

Food grade self priming AODD pumps are ideally suited for applications that require a robust, plug-and-play, and easy-to-maintain stainless steel two diaphragm air pump.

AOK25-LL316  Product Description:


LL316 stainless steel has added molybdenum element to SS304 stainless steel, which can significantly improve its corrosion resistance, oxidation resistance and reduce the hot cracking tendency during welding. There is also good resistance to chloride corrosion. AOK25-LL316 stainless steel pneumatic diaphragm pump It is often used in pure water, distilled water, medicine, sauce, vinegar and other occasions with high hygiene requirements and strong medium corrosion performance.

Technical Parameters:

Self-Priming Dry: 4 m

Self-Priming Wet: 8 m

Max Particle Diameter: 4mm

Suction and Discharge Size: 1inch (25 mm)

Air Inlet Size: 1/2 inch

Max Flow: 157 L/min (9.42m3/h)

Max Head: 84 m

Max Air Inlet Presure: 8.4 bar

Material Quality

Type: AOK25 Stainless Steel Air Operated Diaphragm Pump

Pump Body: SS304,  LL316

Diaphragm: Teflon, Viton, Santoprene, Banu-N,EPDM, etc.

Valve ball: Santoprene, Hytrel, Teflon, Viton, Stainless steel, etc.

Valve seat: Santoprene, Hytrel, Teflon, Viton, Stainless steel.

Center block: Polypropylene, Aluminum, Stainless steel.

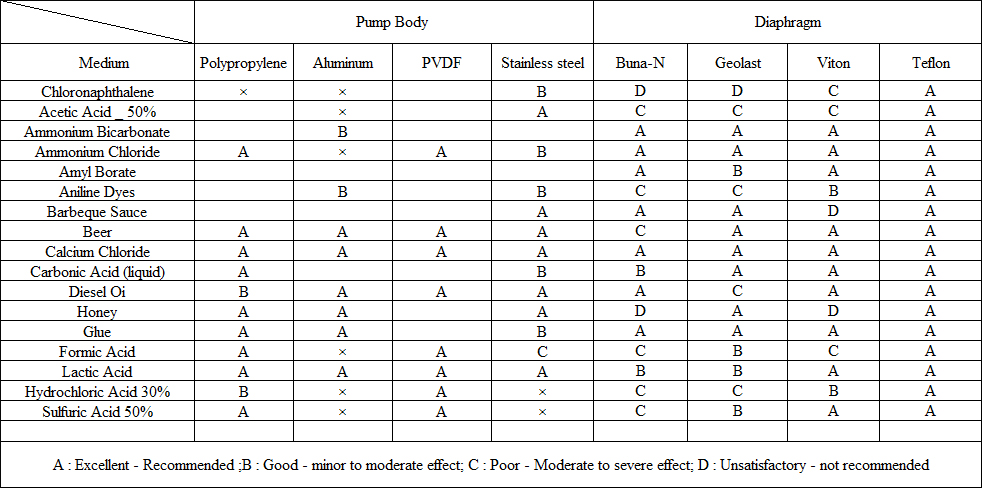

Chemical corrosion comparison table

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8

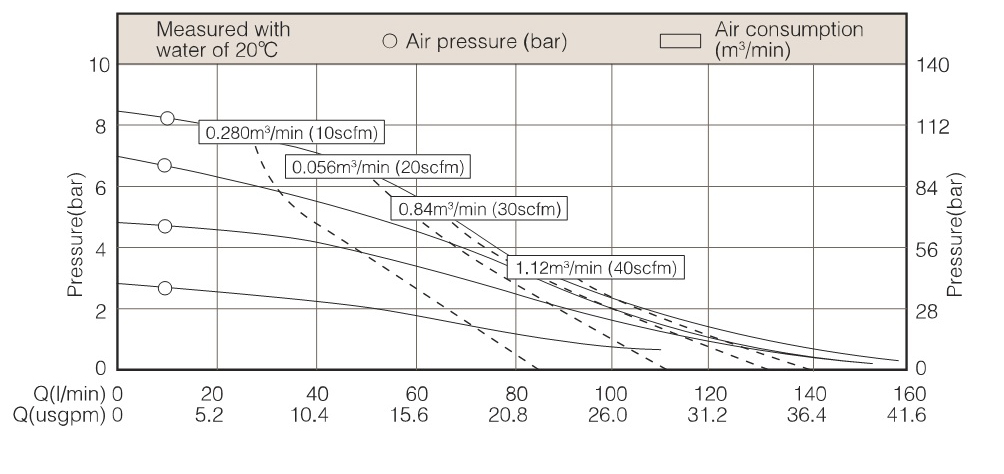

Performance curve:

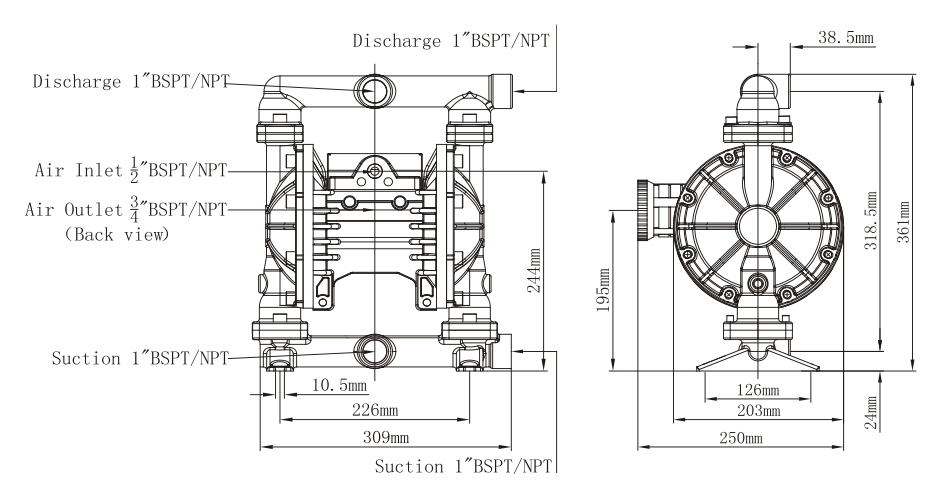

Installation Size:

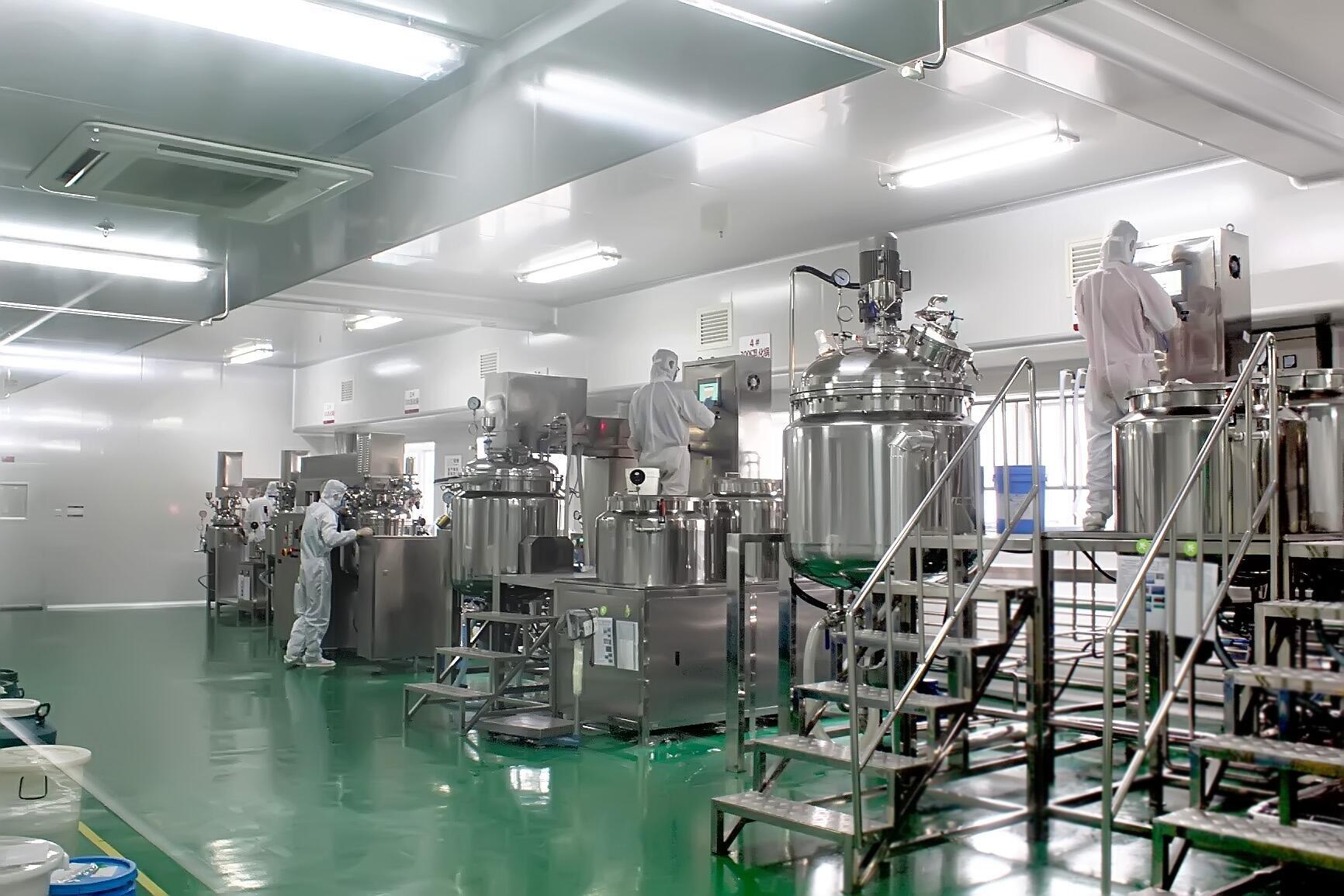

Applications:

1-Beverage industry: liquor, beer, red wine, juice, milk, jam, soda, cola, ice cream, etc.

2-Food industry: yeast, sausage stuffing, cheese, dough, mashed potatoes, starch, etc.

3-Pharmaceutical industry: ointment, glucose, oral liquid, plasma, etc.

4-Condiment industry: soy sauce, vinegar, chili sauce, mustard, etc.

5-Daily chemical industry: perfume, shampoo, shower gel, lotion, toothpaste, hair gel, soap, etc.
