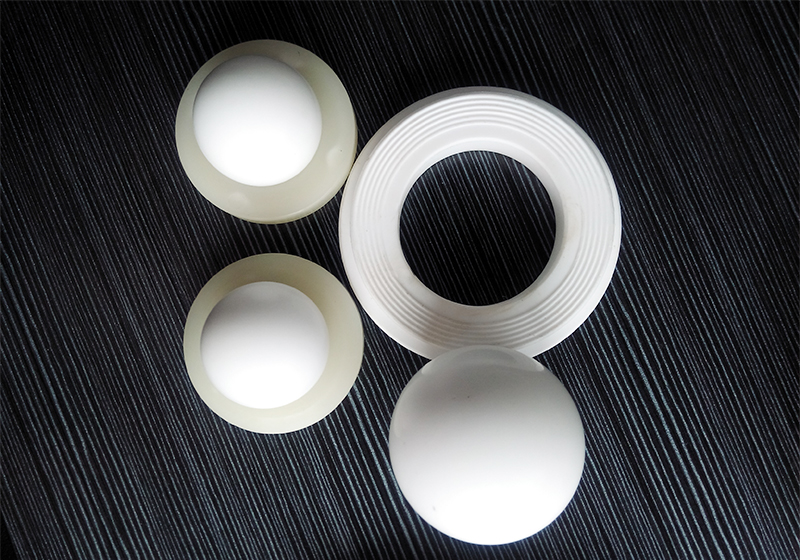

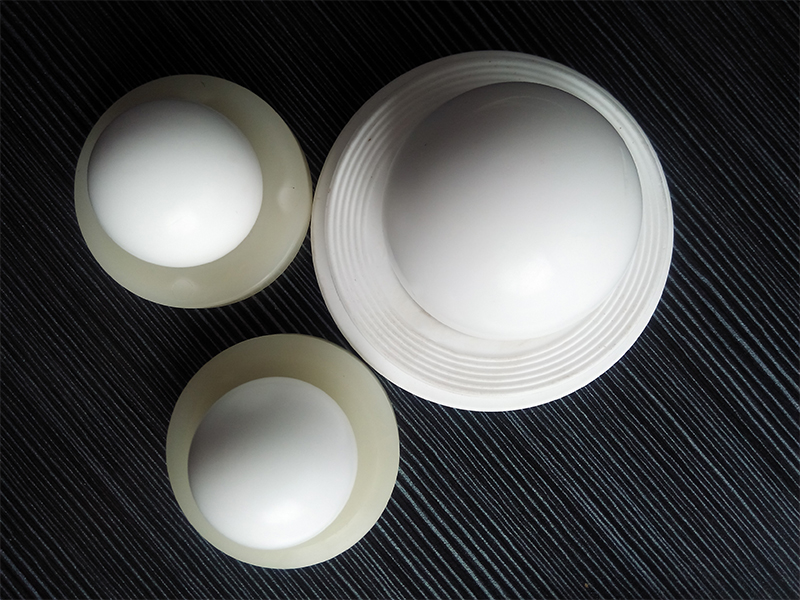

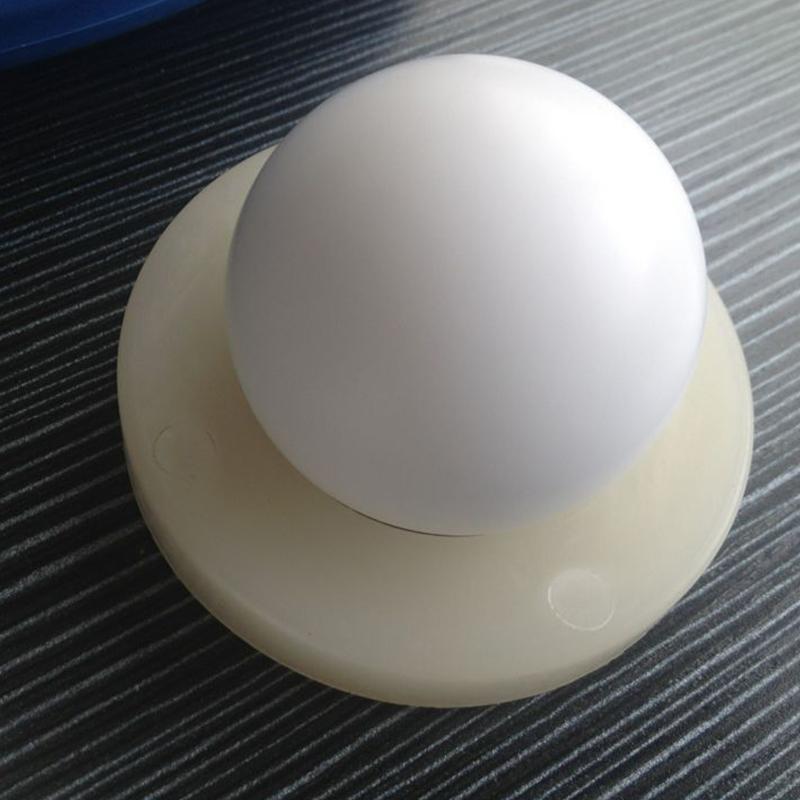

Air Operated Diaphragm Pump Valve Ball

1/2 inch mini polypropylene pneumatic diaphragm pump has six advantages, such as reliable quality, long service life, low noise, small vibration, high head, never crash and fine workmanship.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

Diaphragm has Teflon (PTFE), Viton, Buna-n, Neoprene, Santoprene, EPDM, etc. materials. That is imported material, the diaphragm stress of air operated diaphragm pump is reduced to the minimum, and the service life is extended.

Pneumatic coupling refers to air filter and pressure reducing valve. The pressure reducing valve can stabilize the pressure of the gas source, so that the gas source is in a constant state, which can reduce the damage to the valve or actuator and other hardware when the air pressure of the gas source changes abruptly. The filter is used to clean the air source. It can filter the water in the compressed air and avoid the water entering the device with the gas.

Pneumatic diaphragm pumps cause pulse and hydraulic vibration due to their own reciprocating motion impact, and may cause damage to the whole pumping system. Pulsating dampers eliminate almost all hydraulic vibration and improve overall performance and stability of industrial fluid flow processes and chemical transport processes.

Diaphragm materials are Teflon (PTFE), Viton, Buna-n, Neoprene, Santoprene, EPDM, ect. Made of imported material, the diaphragm stress of air operated diaphragm pump is reduced to the minimum, and the service life is extended.

AOK80 PVDF self priming pneumatic duplex diaphragm pump can always remain efficient, not because of wear and tear and reduce efficiency. AOK80 PVDF air diaphragm pump can make 100% of the energy utilization, When the pneumatic diaphragm pump outlet is closed, the 3 inch PVDF air operated duplex diaphragm chemical pump will automatically stop. There is no equipment movement, wear, overload, heating phenomenon.

AOE aluminum air driven diaphragm pump simple structure, less wearing parts, At the same time, the slurry double diaphragm pump is a kind of corrosion resistant pneumatic diaphragm pump, And it can transport viscosity within the range of 10000 centipores of liquid.
