AOK Air Operated Diaphragm Pump

Polypropylene Air Operated Diaphragm Pump AOK06/10 (New type)

1/4 inch mini polypropylene pneumatic diaphragm pump has six advantages, such as reliable quality, long service life, low noise, small vibration, high head, never crash and fine workmanship.

AOK06/10-PP product description:


AOK06/10 is a new type of portable transport machinery, Use compressed air as power source. For a variety of corrosive, high viscosity, flammable and explosive liquids can be used. The air operated diaphragm pump has the function of self-priming without rotating parts, it can achieve dry priming and wet priming.

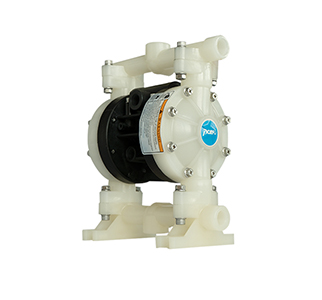

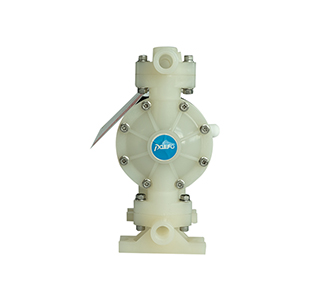

AOK0610 Product picture AOK0610 Product picture

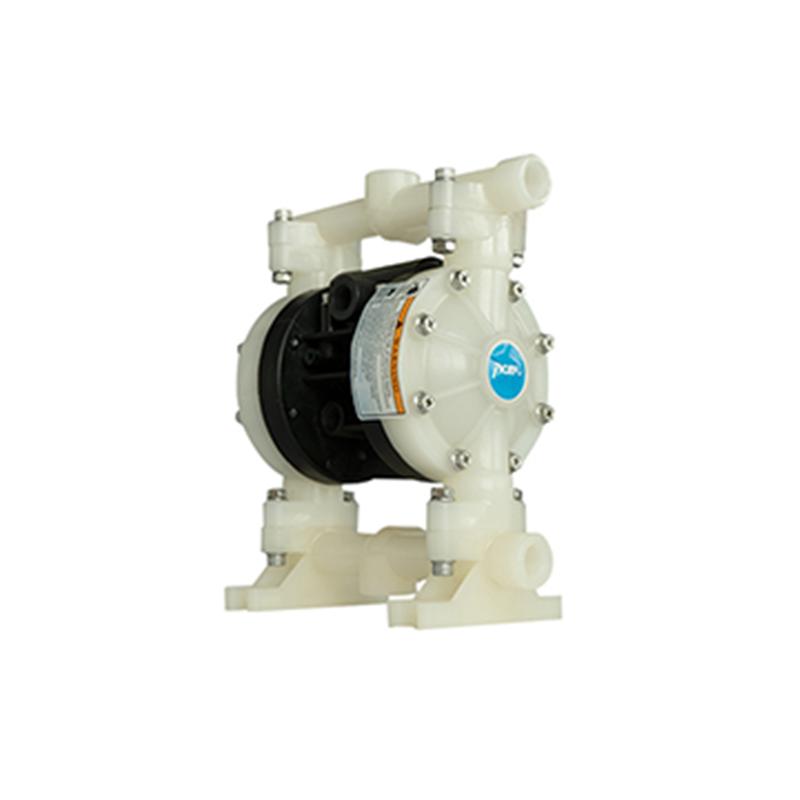

AOK0610 Product picture AOK0610 Product picture

AOK06/10 PP Diaphragm Pump Parameters:

Model

AOK06/10



Inlet/ Outlet size

mm

6/10

inch

1/4 or 3/8

Flow Rate



m3/h

1.62

L/min

27

Head (m)

70

Suction Stroke (m)

6.4

Max. Particle Diameter (mm)

1.6

Max.Air Pressure (kg/cm²)

7

Max.Air Consumption (m³/min)

0.14

Diaphragm

Teflon,Hytrel, Viton, Santoprene, Banu-N, etc.

Check Valve

PP, PVDF, POM

Center block

PP

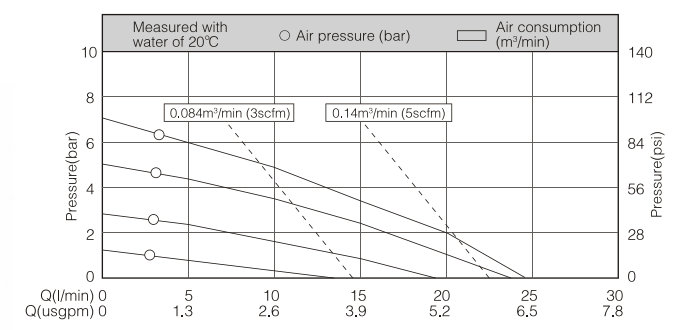

Performance curve:

Performance curve

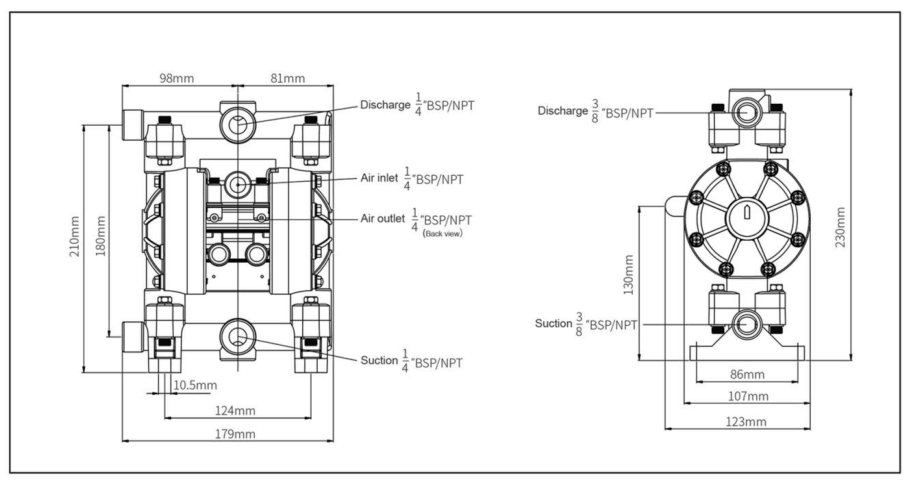

Installation size:

Installation size

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8

Applications:

1-Chemical industry: solvents, acids, alkalis, paints, coatings, resins, dyes, inks, detergents, adhesives, etc.

2-Petrochemical industry: crude oil, heavy oil, mud, grease, waste oil, sludge, etc.

3- Ceramic industry: glaze, mud, porcelain slurry, lime slurry, clay slurry, etc.

4-Environmental protection industry: sewage treatment, adding chemicals, soft sediments, chemicals, waste products, etc.

5-Paper industry: paste, borax, caustic soda, ink, pigment, hydrogen peroxide, adhesive, etc.

6-Electronics industry: solvents, electroplating solutions, cleaning solutions, nitric acid, waste acids, corrosive acids, polishing solutions.

7- Daily chemical industry: detergent, lotion, cream, hand cream, etc.

8-Furniture industry: adhesives, varnishes, white wood glue, resins, etc.

9-Construction industry: cement slurry, lime slurry, rock slurry, etc.

10-Automotive industry: polishing emulsion, coolant, automobile primer, oil emulsion, varnish, degreasing liquid, paint, etc.

11-Metallurgy, casting and dyeing industry: metal slurry, hydroxide, carbide slurry, dust washing slurry.

Applications

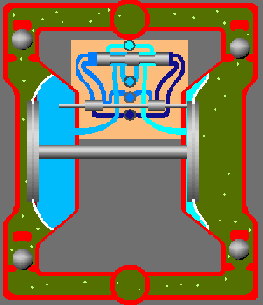

Working Principle:

When air pressure is applied to the pump, the main air valve moves up and down. When the main air valve is in the down position, air pressure is diverted to the right diaphragm. At the same time, exhaust air from the left diaphragm passes through the shuttle and shuttle plate, and exits the rear of the pump. When the main air valve is in the up position, air pressure is diverted to the left diaphragm while the right diaphragm is exhausted. This process constantly alternates between the up and down position to create a continuous cycle.

working principle

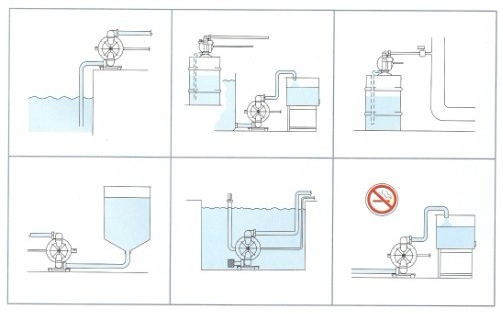

Installation diagram:

Installation diagram

Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Air Driven Membrane Pump
Strong Chemical Resistance Pneumatic Diaphragm Pump AOK06/10(Old Type)
PVDF Air operated double diaphragm pump with strong chemical resistance, crush resistance, abrasion resistance, good corrosion resistance for acid, alkali and variety of organic solvents.
view more
1/2 Inch Pneumatic Diaphragm Pump
Aluminum Alloy Air Operated Diaphragm Pump AOK15
Reciprocating aluminum alloy air operated double diaphragm pump has the advantages of large suction range, adjustable flow, absolute fire and explosion protection. It is an excellent aluminum alloy diaphragm pump.
view more
Air Operated Diaphragm Pump Rod (Shaft)
Diaphragm Rod (Shaft)
Diaphragm Rod (Shaft)  from #321 stainless steel, the connecting rod has good corrosion resistance, abrasion resistance, and self-lubricating performance. Particularly grinded, the surface has lower friction coefficient.
view more
AOE150 PP Diaphragm Pump
High Flow Plastic Air Operated Diaphragm Pump AOE150
1.5 inch plastic air operated double diaphragm pump AODD pump is also known as corrosion resistant engineering plastic AODD pump, Its flow pump body part is made of polypropylene, is not rust, no pollution, strong corrosion resistance of the 1.5 inch diaphragm pump for paints & solvents, acid liquid.
view more
Diaphragm
Air Operated Diaphragm Pump Diaphragm
Diaphragm materials are Teflon (PTFE), Viton, Buna-n, Neoprene, Santoprene, EPDM, ect. Made of imported material, the diaphragm stress of air operated diaphragm pump is reduced to the minimum, and the service life is extended.
view more
AOE200 Plastic Self Priming Air Diaphragm Pump
High Capacity Air Operated Membrane Pump AOE200
2inch polypropylene air operated duplex diaphragm pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.
view more
1/4 Inch Mini Diaphragm Pump
Stainless Steel SS304 Air Operated Diaphragm Pump AOK06/10
AOK0610- Stainless steel pneumatic diaphragm pump using imported raw materials, keep the good performance of the pump. Our 1/4 inch mini pneumatic diaphragm pump can not only transport water, It can also be used as a chemical liquid conveying pneumatic pump.
view more
AOK25 PVDF Diaphragm Pump
PVDF Air Operated Diaphragm Pump AOK25
AOK25 PVDF pneumatic diaphragm pump is considered to be the most chemically stable material, AOK25 high quality PVDF pneumatic pump for chemical has good chemical stability. This chemical air powered double diaphragm pump can not only be used for a variety of corrosive liquids and high viscosity liquids, but also can be used to transport flammable and explosive liquids.
view more
