AOK80 food grade stainless steel air operated diaphragm water pump is a high quality pneumatic diaphragm pump, but also a high flow air membrane pump. through the diaphragm and pump body formed between the sealing chamber, the sealing is effective and reliable, the medium will not leak to the outside world.

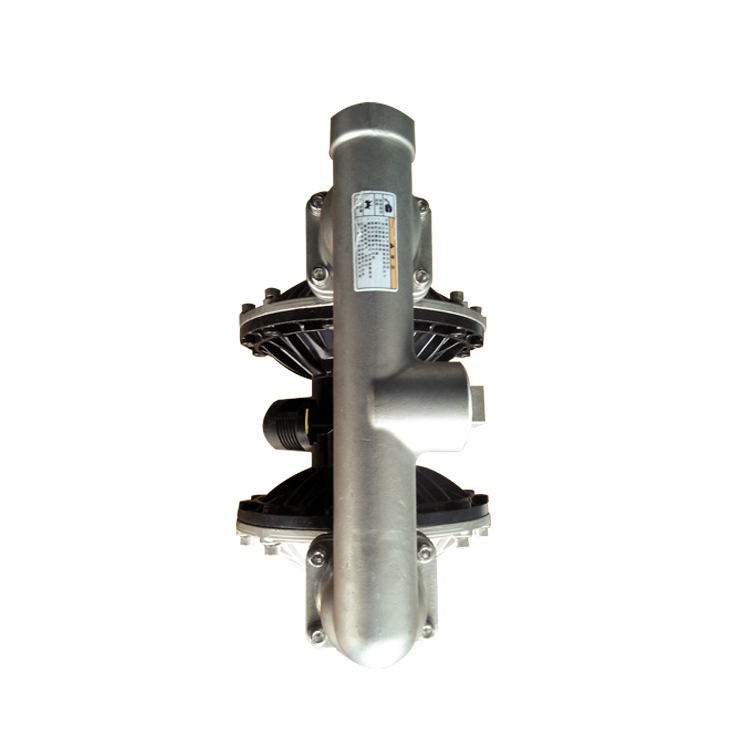

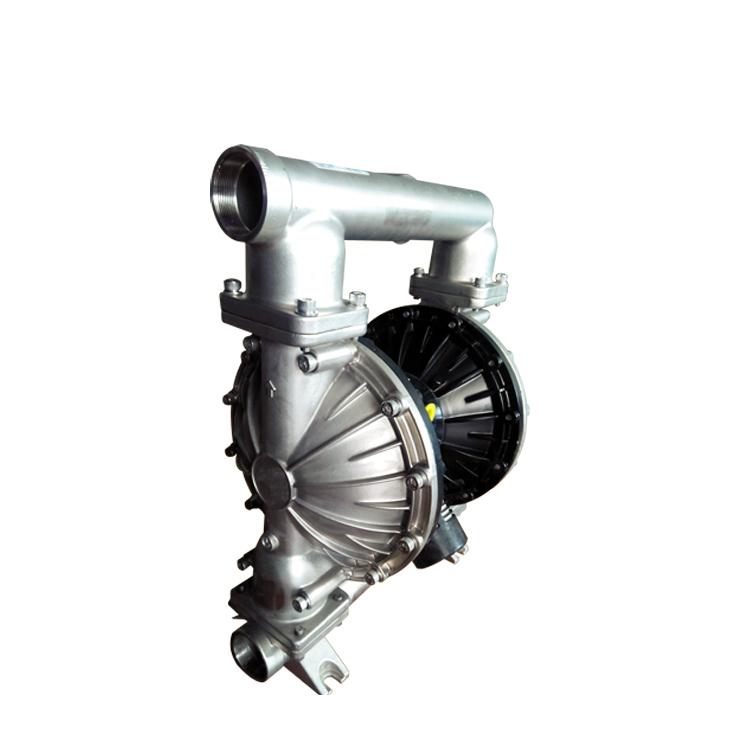

AOK80-LL316 Product Description
AOK80-LL316 stainless steel has molybdenum element, Can significantly improve its corrosion resistance, oxidation resistance, and reduce the tendency of thermal cracking during welding. It is often used in pure water, distilled water, medicine, sauce, vinegar and other occasions with high hygiene requirements and strong medium corrosion performance.
 |
 |
AOK80-LL316 Performance parameter：
|
Model |
AOK80-LL316 |
|
|
Inlet/ Outlet size |
mm |
80 |
|
inch |
3 |
|
|
Flow Rate
|
m3/h |
63.6 |
|
L/min |
1060 |
|
|
Head (m) |
84 |
|
|
Suction Stroke (m) |
8 |
|
|
Max. Particle Diameter (mm) |
9.4 |
|
|
Max.Air Pressure (kg/cm²) |
8.4 |
|
|
Max.Air Consumption (m³/min) |
9.8 |
|
|
Diaphragm |
Teflon, Viton, Santoprene, Banu-N,EPDM, etc. |
|
|
Valve ball/seat |
Santoprene, Hytrel, Teflon, Viton, Stainless steel, etc. |
|
More Options ( Parameters Table):
|
Model |
Flow (m³/h) |
Head (m) |
Suction Stroke(m) |
Max.Particle Dia. (mm) |
Max. Air Pressure (kg/cm²) |
Max.Air Consumption (m³/min) |
|
AOK06/10 |
0-1.62 |
0-70 |
6.4 |
1.6 |
7 |
0.14 |
|
AOK-15 |
0-3.42 |
0-84 |
7.6 |
2.5 |
8.4 |
0.56 |
|
AOK-25 |
0-9.42 |
0-84 |
8 |
4 |
8.4 |
1.12 |
|
AOK-40 |
0-21.48 |
0-84 |
8 |
5 |
8.4 |
2.24 |
|
AOK-50 |
0-35.22 |
0-84 |
8 |
6 |
8.4 |
2.8 |
|
AOK-80 |
0-63.6 |
0-84 |
8 |
9.4 |
8.4 |
9.8 |

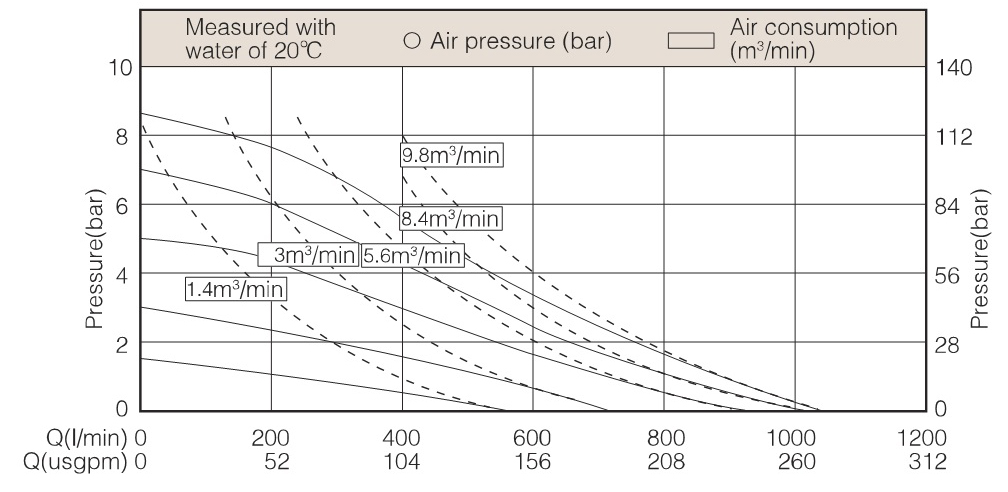

Performance Curve：

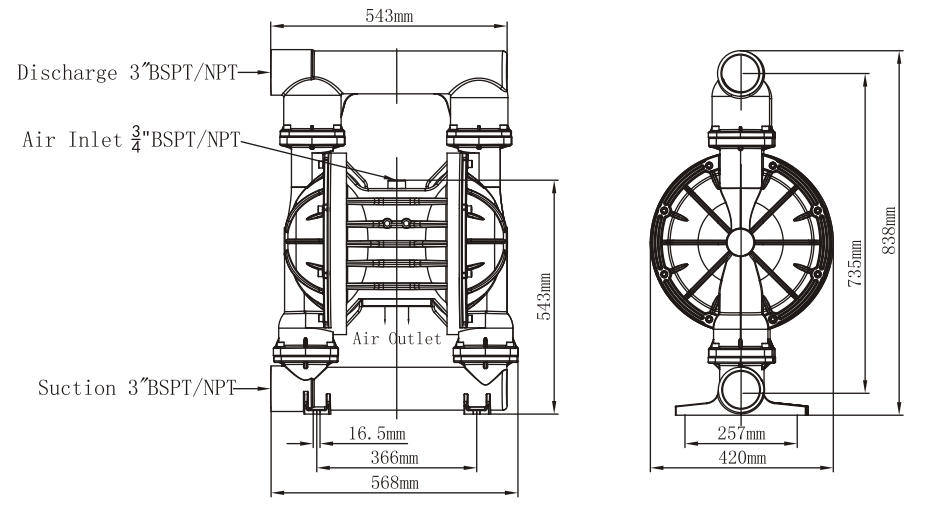

Installation Size：

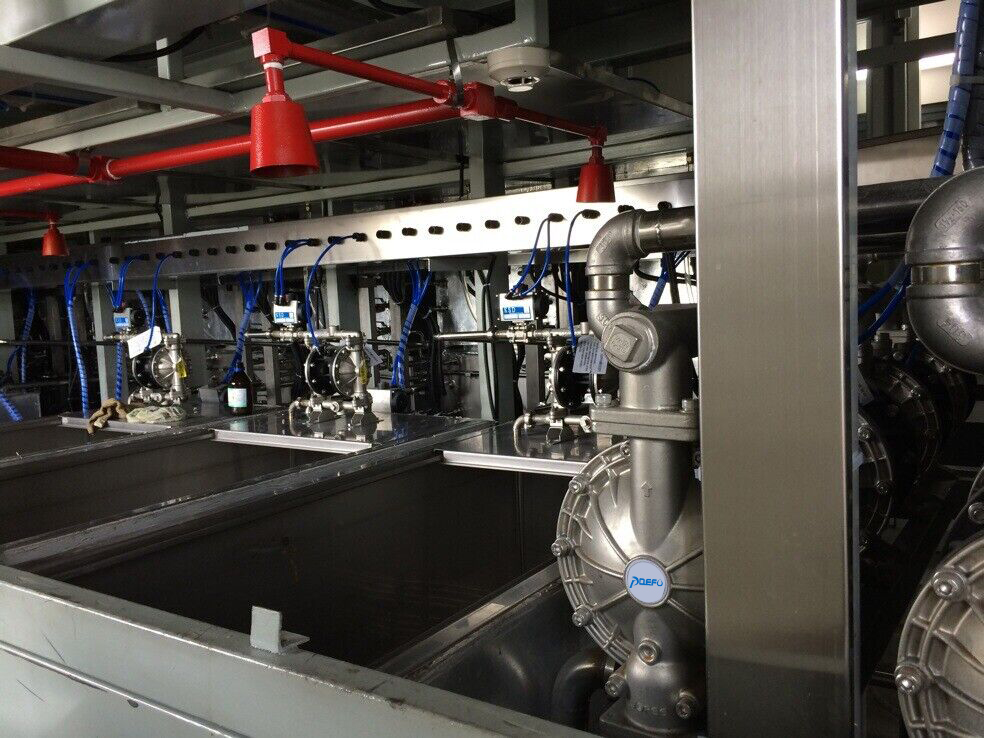

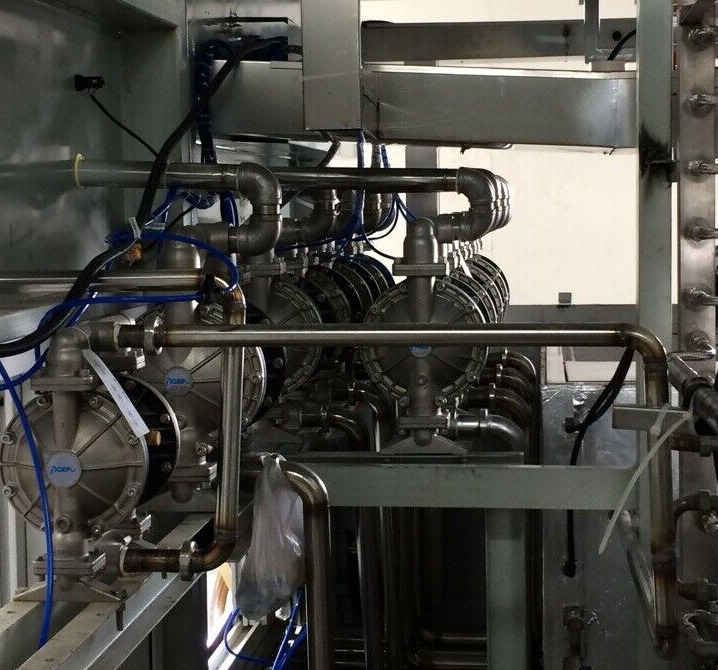

Applications：
1- Beverage industry: liquor, beer, red wine, juice, milk, jam, soda, cola, ice cream, etc.
2- Food industry: yeast, sausage stuffing, cheese, dough, mashed potatoes, starch, etc.
3-Pharmaceutical industry: ointment, glucose, oral liquid, plasma, etc.
4-Condiment industry: soy sauce, vinegar, chili sauce, mustard, etc.
5- Daily chemical industry: perfume, shampoo, shower gel, lotion, toothpaste, hair gel, soap, etc.
working principle：
When air pressure is applied to the pump, the main air valve moves up and down. When the main air valve is in the down position, air pressure is diverted to the right diaphragm. At the same time, exhaust air from the left diaphragm passes through the shuttle and shuttle plate, and exits the rear of the pump. When the main air valve is in the up position, air pressure is diverted to the left diaphragm while the right diaphragm is exhausted. This process constantly alternates between the up and down position to create a continuous cycle.

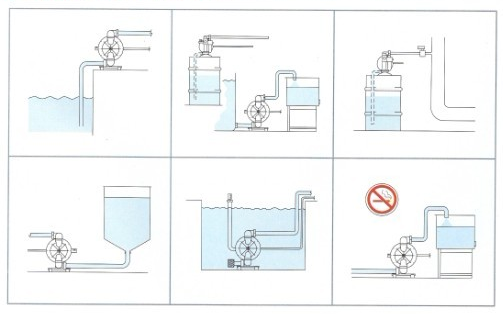

Installation diagram:
Diaphragm membrane force table:
|
A : Excellent - Recommended |
|
B : Good - minor to moderate effect |
|
C : Poor - Moderate to severe effect |
|
D : Unsatisfactory - not recommended |
|
Diaphragm |
Buna-N
|
Geolast
|
Viton
|
Teflon/PTFE
|
|
medium |
||||
|
Chloronaphthalene |
D |
D |
C |
A |
|
Acetic Acid _ 50% |
C |
C |
C |
A |
|
Ammonium Bicarbonate |
A |
A |
A |
A |
|
Ammonium Chloride |
A |
A |
A |
A |
|
Amyl Borate |
A |
B |
A |
A |
|
Aniline Dyes |
C |
C |
B |
A |
|
Barbeque Sauce |
A |
A |
D |
A |
|
Beer |
C |
A |
A |
A |
|
Calcium Chloride |
A |
A |
A |
A |
|
Carbonic Acid (liquid) |
B |
A |
A |
A |
|
Diesel Oi |
A |
C |
A |
A |
|
Honey |
D |
A |
D |
A |
|
Glue |
A |
A |
A |
A |
|
Formic Acid |
C |
B |
C |
A |
|
Lactic Acid |
B |
B |
A |
A |
|
Hydrochloric Acid 30% |
C |
C |
B |
A |
|
Sulfuric Acid 50% |
C |
B |
A |
A |
Tags :
