AOK Air Operated Diaphragm Pump

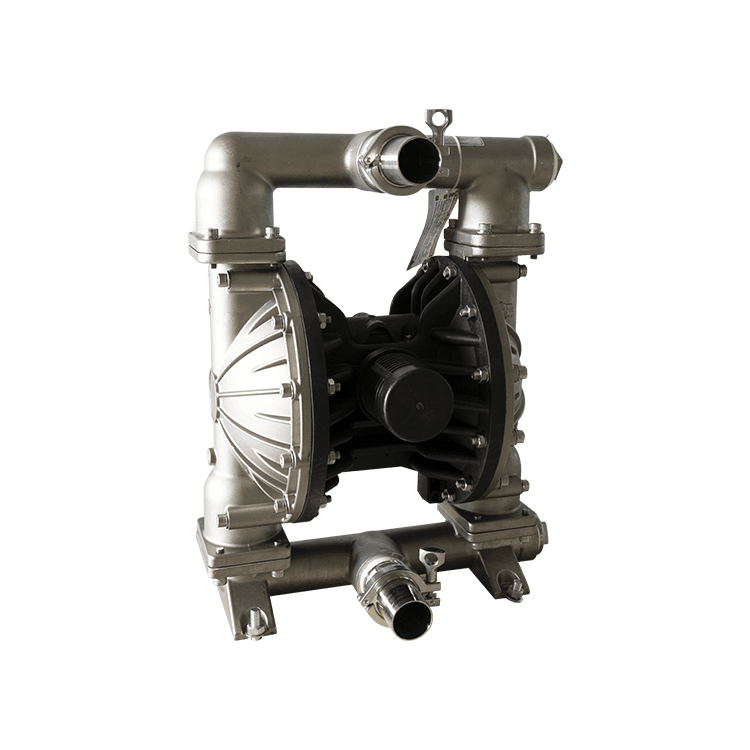

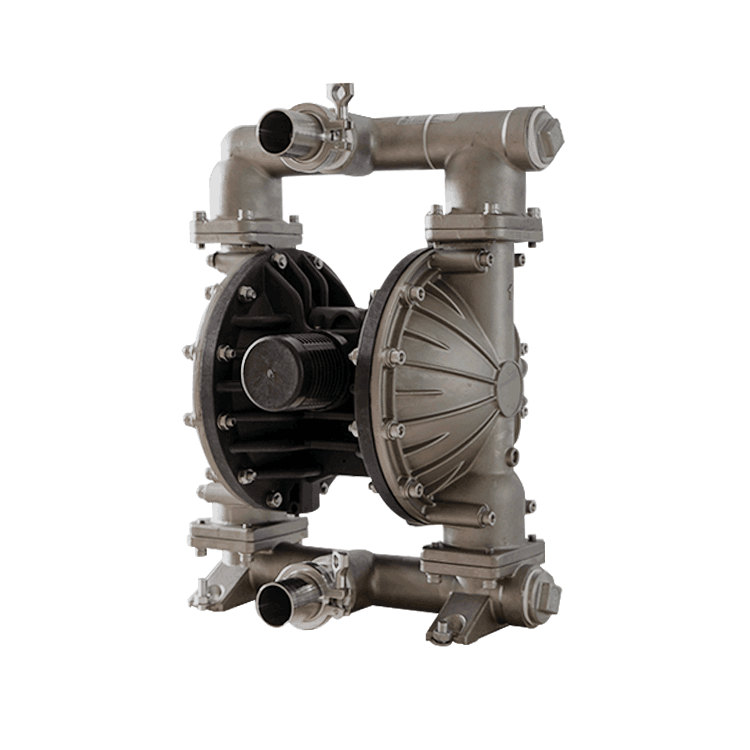

Stainless Steel SS304 Air Operated Diaphragm Pump AOK40

 Stainless steel pneumatic diaphragm pump for chemical in the transportation of hazardous and corrosive liquids, the liquid can be completely separated from the outside world. It is a kind of corrosion resistant chemical diaphragm pump.

AOK40-304 Product Description


People can copy what weve done, but they cant copy what we are going to do.

We imported the raw materials to keep the good pump performance.

This diaphragm pump has no rotary parts and no bearing seals.

No electricity. It's safe and reliable while using in the flammable and explore places.

The diaphragm will completely separate the exhausted medium and pump running parts, working medium.

The pumping medium can't be leaked outside. Thus it will not cause the environmental pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.

Which field of our air operated pump can be used for ?

1- Food and beverage industry: Liquid semisolid, pickled vegetable, Wine, juice, small sausage, etc.

2- Paint industry: oil paint, pigment, etc.

3- Chemical industry: various kinds of inflammable and explosive liquid, and highly acidic, basic and corrosive medium.

4- Adhesive and glue industry: all the liquids included in the industry are available.

5- Ceramic industry: various kind of glaze slip for tile, porcelain, brick and pottery.

6- Daily chemical industry: detergent, emulsion, hand cream, surface activator, etc.

7- Pharmaceutical industry: solvent, acid, alkali, ointment, plasma and other kinds of drug liquid.

8- Environmental protection and wastewater treatment industry: this AOK air operated diaphragm pump can be matched with plate-and-frame filter press for sewage treatment.

9- Mine industry: transportation of sediment and ponding in mine, adit and tunnel, as well as the cement grouting and mortar.

10- Marine industry: sewage cleaning on oil tank and barge, and the transportation of high temperature liquid, The maximum liquid temperature can be 150.

Hot SS304 Air Operated Diaphragm Pump AOK40:

Model

AOK40



Inlet/ Outlet size

mm

40

inch

1.5

Flow Rate



m3/h

21.48

L/min

358

Head (m)

84

Suction Stroke (m)

8

Max. Particle Diameter (mm)

5

Max.Air Pressure (kg/cm²)

8.4

Max.Air Consumption (m³/min)

2.24

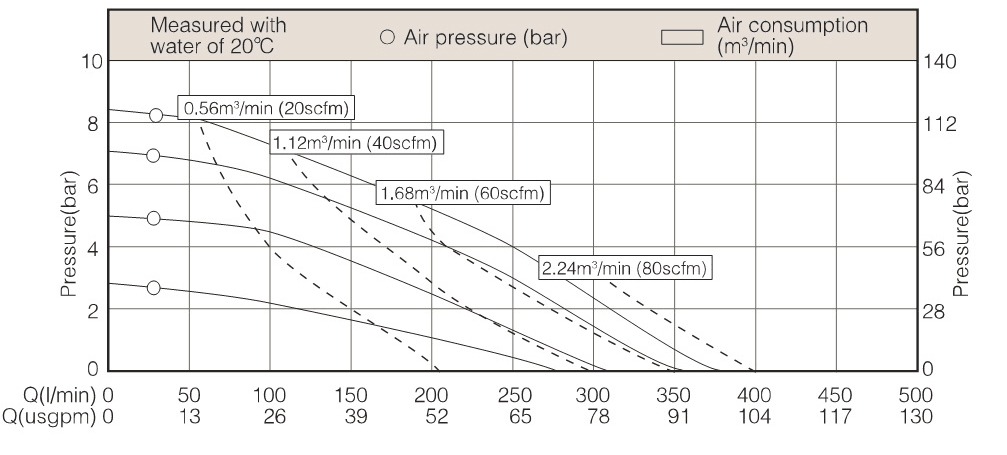

Performance Curve:

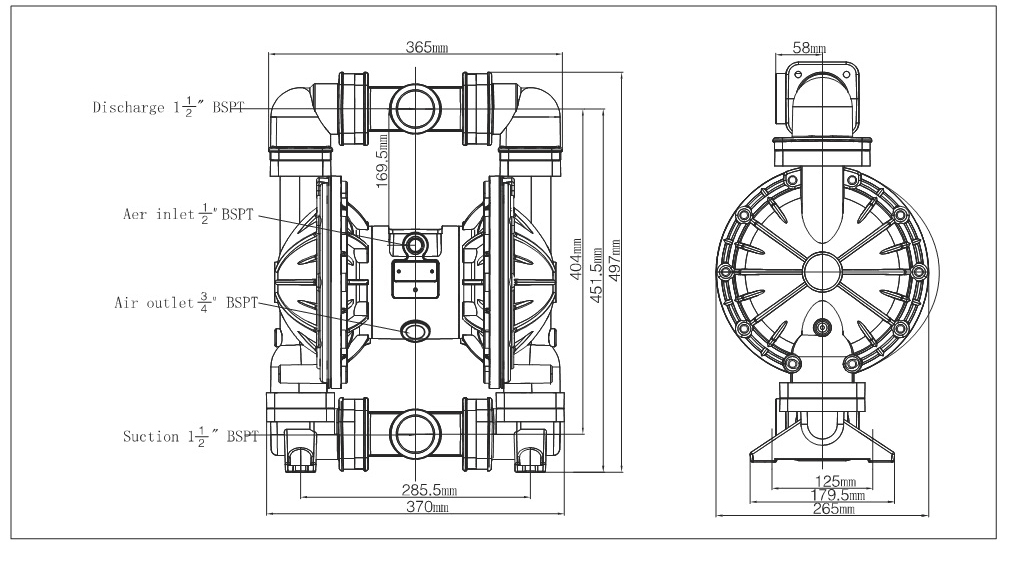

Installation Size:

Pump Spare Parts ( More parts pls contact us):

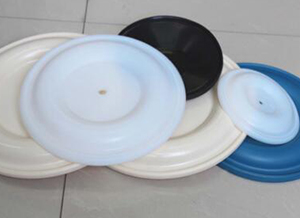

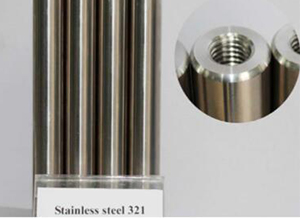

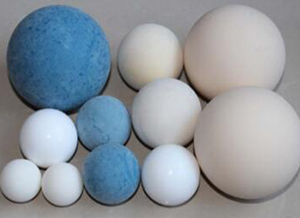

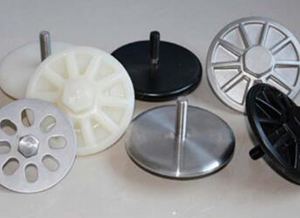

Diaphragms Diaphragm Plate Valve Balls Diaphragm Rod(Shaft)

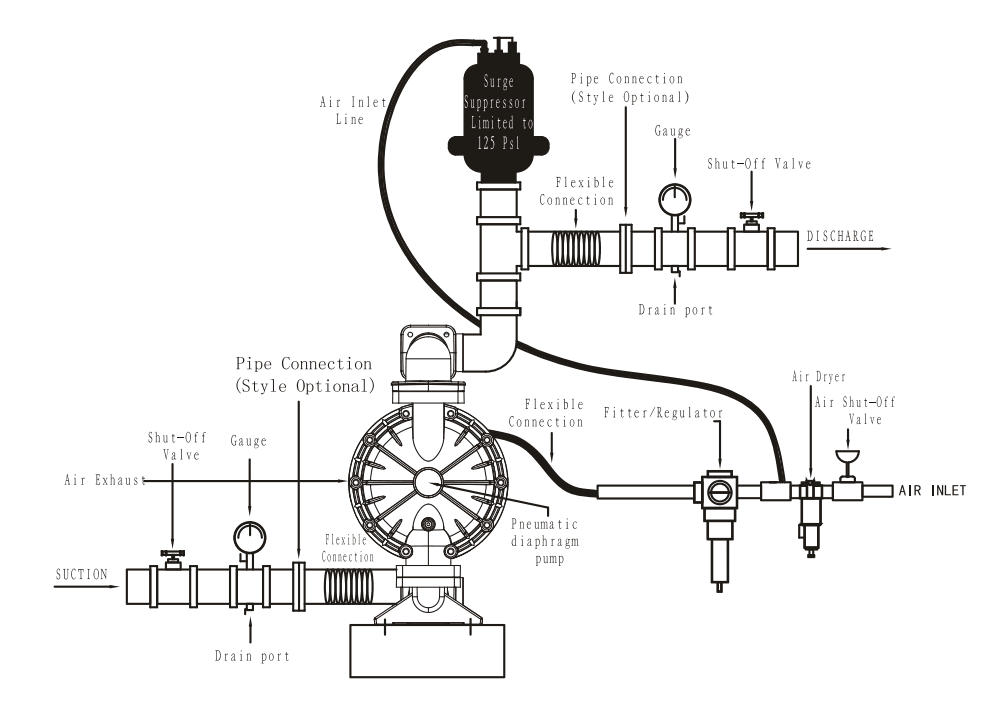

Typical Installation Guide:

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
